SKU: 70060
Ethernet-to-Pixel Converter

The world’s leading Ethernet-to-Pixel converter

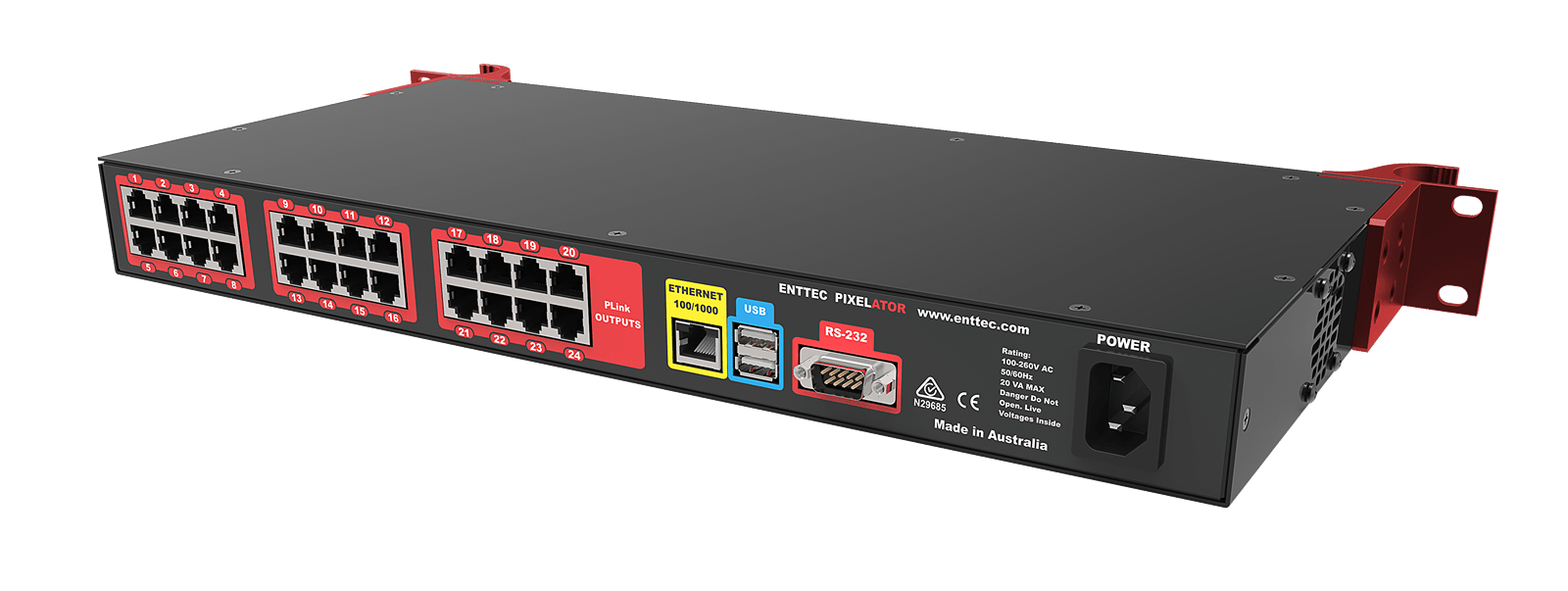

The Pixelator is the world’s most powerful Ethernet to pixel protocol converter and the full-size version of the Pixelator Mini. With its high-speed network connection and rugged rackmount enclosure, the Pixelator can control an impressive 24,576 channels (8,192 RGB pixels).

Because the Pixelator system has been designed for great flexibility, all data conversion is processed locally. This means that each of its 24 outputs provides pixel data to digital LED dots and strips up to 300m away. This can be combined with a wide range of output devices when connected to ENTTEC’s compact power injection modules. Choose from the indoor Plink Injector, CVC3 and PSAT, or the outdoor IP66 Plink Injector and IP66 CVC3.

This Ethernet-to-Pixel converter has many key distinguishing features. For instance, the ability to allow different types of protocol to be sent to different locations yet remain in sync. As a result, you’ll experience no image ghosting or tearing of your pixel-mapped content.

All of this can be configured using ENTTEC’s local host profile editor. Set the Pixelator’s 24 ports to behave exactly as you need them to with ease.  Back up or restore your profiles for fast deployment across many units to wow even the largest audience.

Only the Pixelator lets you do a lot more with less fuss at a lower cost. No other device on the market offers this level of performance.

Superfast Gigabit Ethernet

The only Gigabit pixel converter in the world. Outstanding performance, with rock solid LED pixel mapping, and perfect synchronization across 24 outlets in Sync mode. Pixelator has the power to output 8,192 RGB pixels in total, thanks to brilliant ENTTEC engineering.

Dual core CPU clocked at 2Ghz

This processor is exactly what you need if you want to output thousands of pixels and ensure that they are always synchronized with the input. Efficient and revolutionary, Pixelator has the best brain, and eats major Ethernet protocols for breakfast, lunch and dinner to bring you 24×7 performance that never gives up or lets you down.

Supports a wide range of Pixel tape and dots

The following protocols are fully compatible with Pixelator

WS2811 WS2812 WS2812b WS2813 9PDOT
SK6812 TM1804 TM1812 APA-104

Super efficient DDR3 RAM

Fast blazing memory to suit the immense processing power, ensures brilliant output, at all times. Why settle for slow clunky units, when Pixelator is the best choice for Pixel mapping installations, around the globe.

Web based Configuration

Use any modern web browser to manage Pixelator. Create, edit or copy your own profile to suit the requirements of your project. The revolutionary Profile Editor is the easiest way to configure each of the 24 ports to behave the way you need to.

Multi-Protocol Support

  • Kling-Net
  • ArtNet 1/2/3
  • sACN
  • ESP
  • Kinet


  • 24 PLink output ports on RJ45 (Pixel Link Data)
  • 1 Gigabit Ethernet port
  • Jumbo Frame support
  • 1 RS232 input for profile selection via serial command

 Compatible  Apps

 Recommended App: ELM

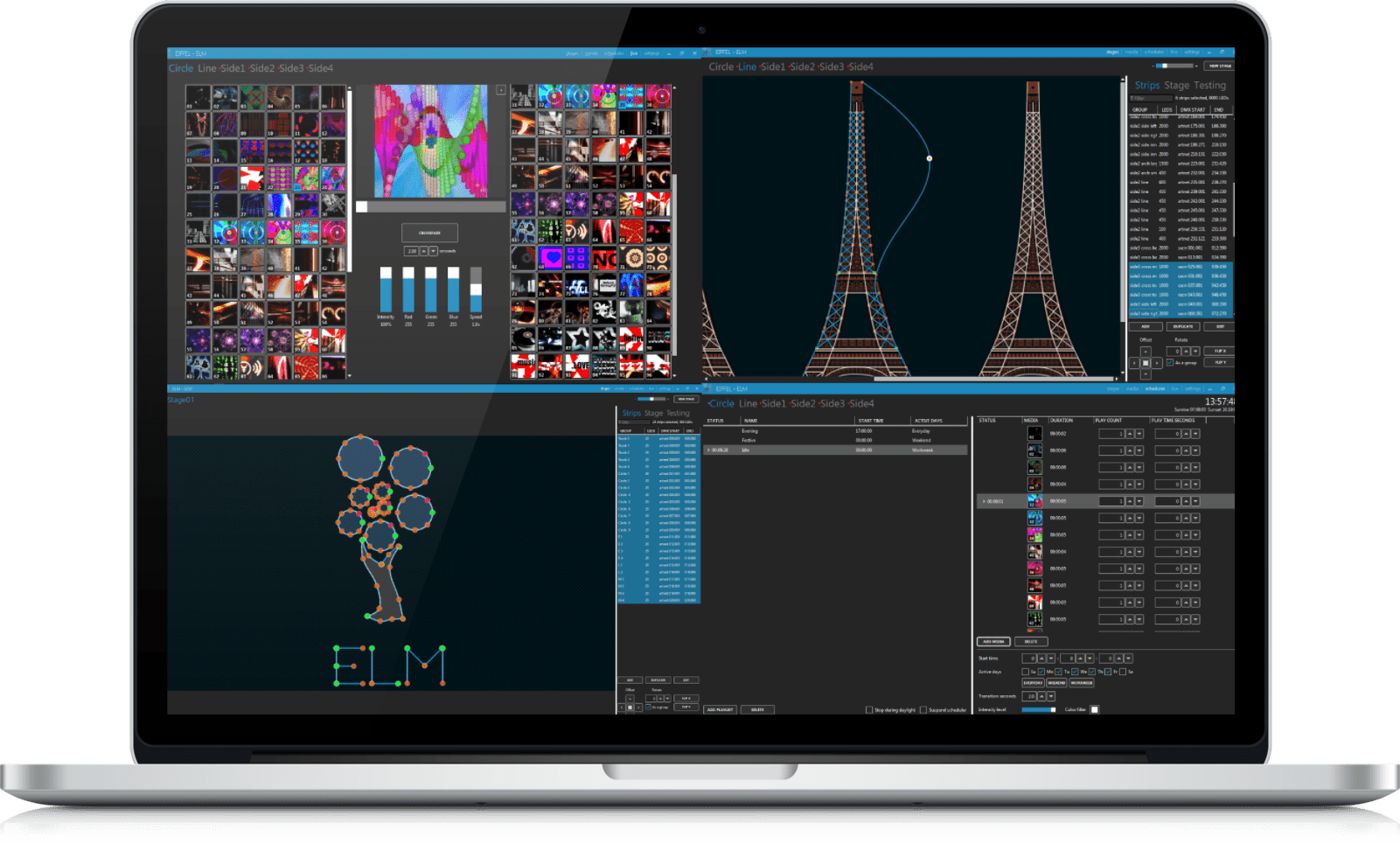

  • ELM: ENTTEC LED MAPPER provides total control over your LED system, regardless of shape and size.
  • Design your layout with vector-based objects for maximum precision and flexibility.
  • Load the media of your choice and begin playback as needed
  • Supports Spout and NDI
  • Supports RGB, RGBW, RGBA, RGBAW/RGBWA and White fixtures

3rd Party Apps
