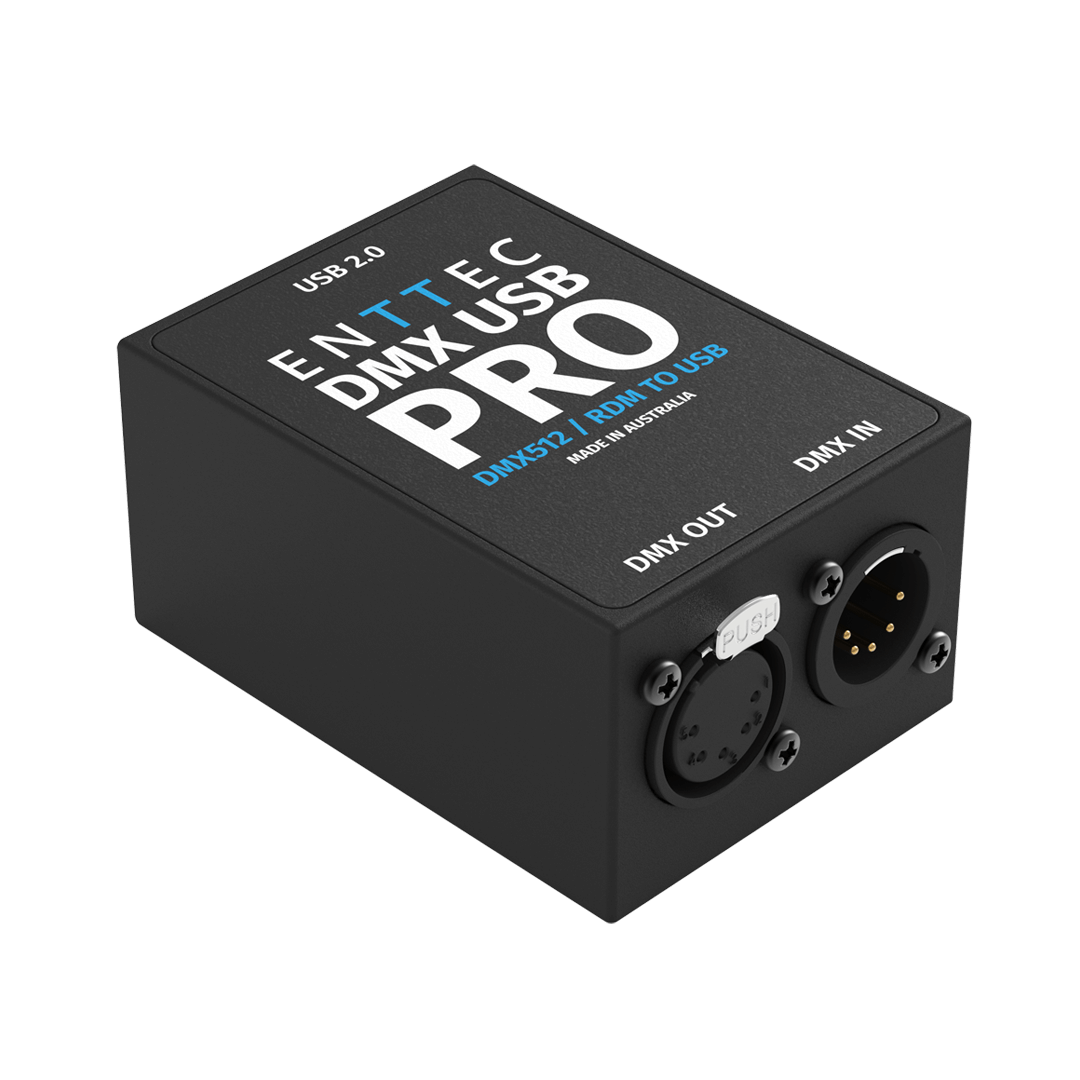

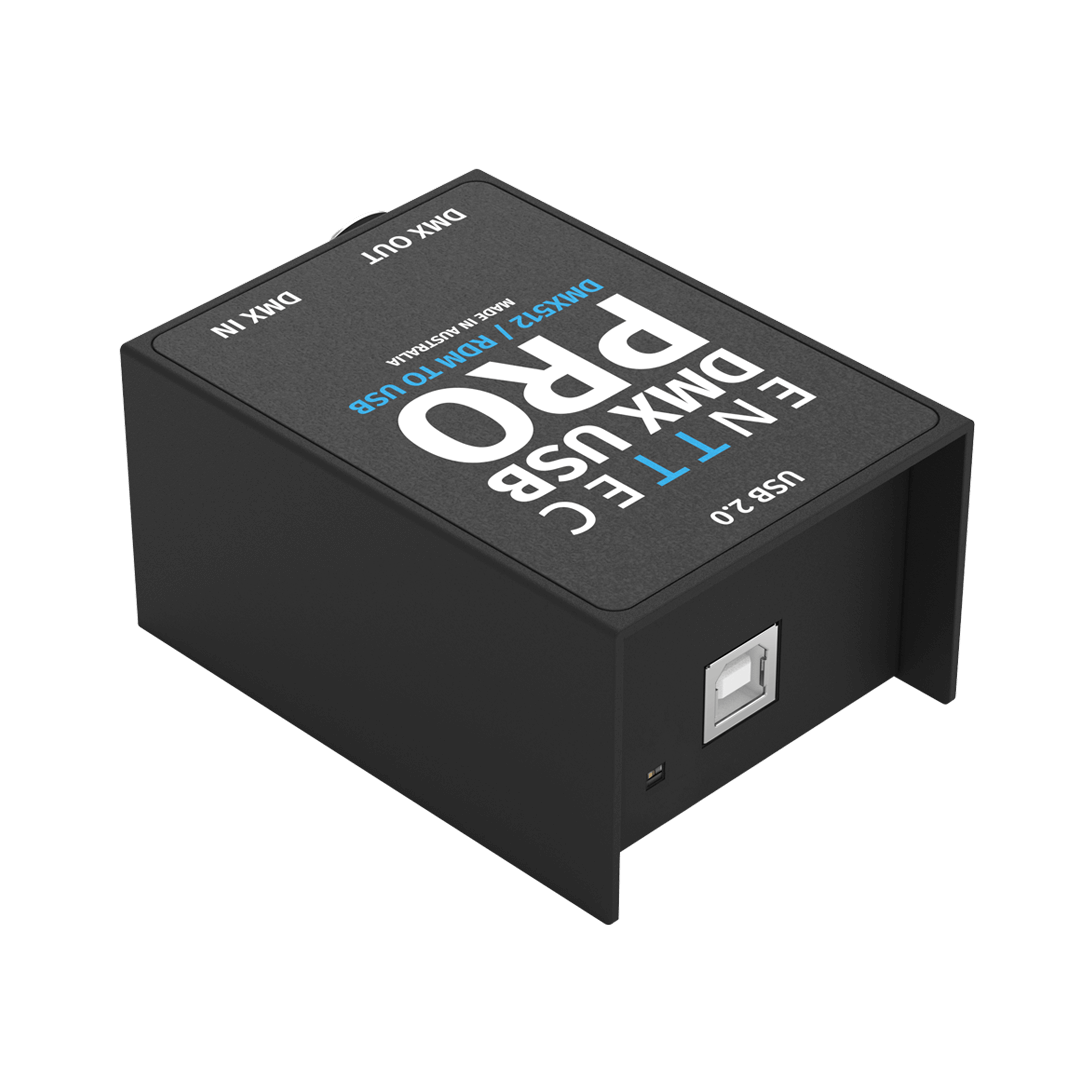

DMX USB Pro
The DMX USB Pro is the industry standard DMX USB converter for DMX/RDM. Control your lights from PC or MacOS software.
The industry standard USB to DMX converter.
Products don’t become an industry standard for no reason. Used on a daily basis by countless lighting designers and installers across the world, the DMX USB PRO converter has proven for many years that it’s a reliable and robust product that excels at so many fundamental applications.

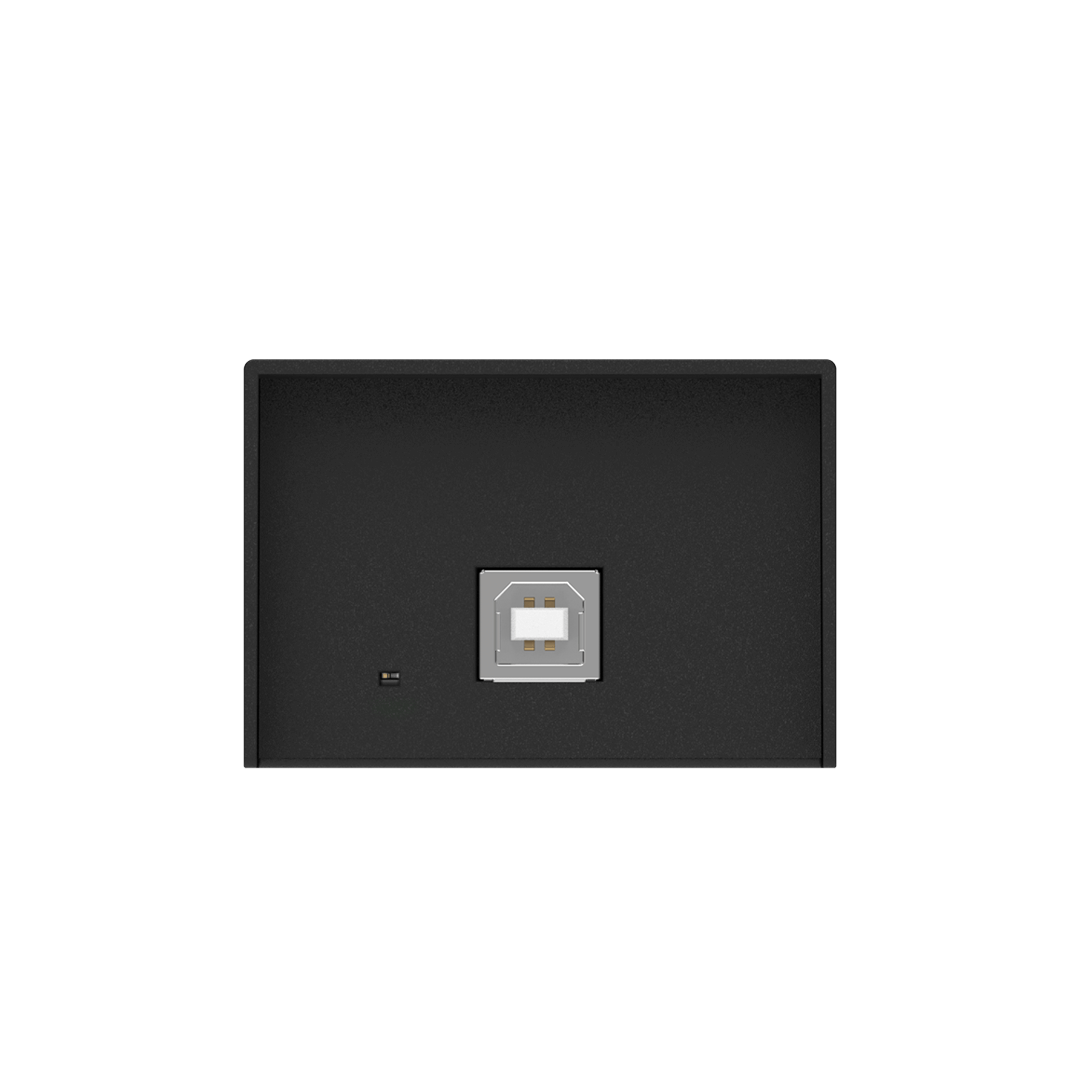

It allows for USB 2.0 support through its USB Type-B connection to send or receive a physical DMX512 signal of up to 1 universe from PC, Mac or Linux devices running through a vast array of third-party software that supports our DMX USB PRO software API.
This popular DMX USB converter features an internal frame buffer for consistently generating DMX frames when outputting, ensuring a reliable flow of data and always giving you a stable data stream, regardless of your computer’s workload.
You can also view the activity of the DMX USB PRO quickly via its LED status indicator. Use ENTTEC’s EMU software to test, update and configure your device, and even change the firmware to support your exacting requirement (RDM or non-RDM).
Compatible with an enormous range of commercial and free software, you know you can always rely on the ENTTEC DMX USB PRO to do the job at hand.
Precision engineered + proudly made in Australia.
- USB 2.0 support with status LED
- 1500V full isolation
- RDM enabled + Input or Output mode
- Internal frame buffer for stable DMX generation
- Supports a huge range of commercial and free software
E N T T E C products are widely compatible with software
and lighting control systems from other popular brands.
3-month PREMIUM EMU licence when you purchase a new DMX USB PRO.
Let’s get started!
It’s so easy to produce great shows and ambiences with a DMX USB PRO as part of your lighting kit.
Follow this short demonstration to learn about the essential features of the device, and see how simple it is to set up.
You’ll be thrilling your audiences in no time!
|Input voltage 5V DC (via USB)|
|Input current 300mA|
|Power draw 1.5W|

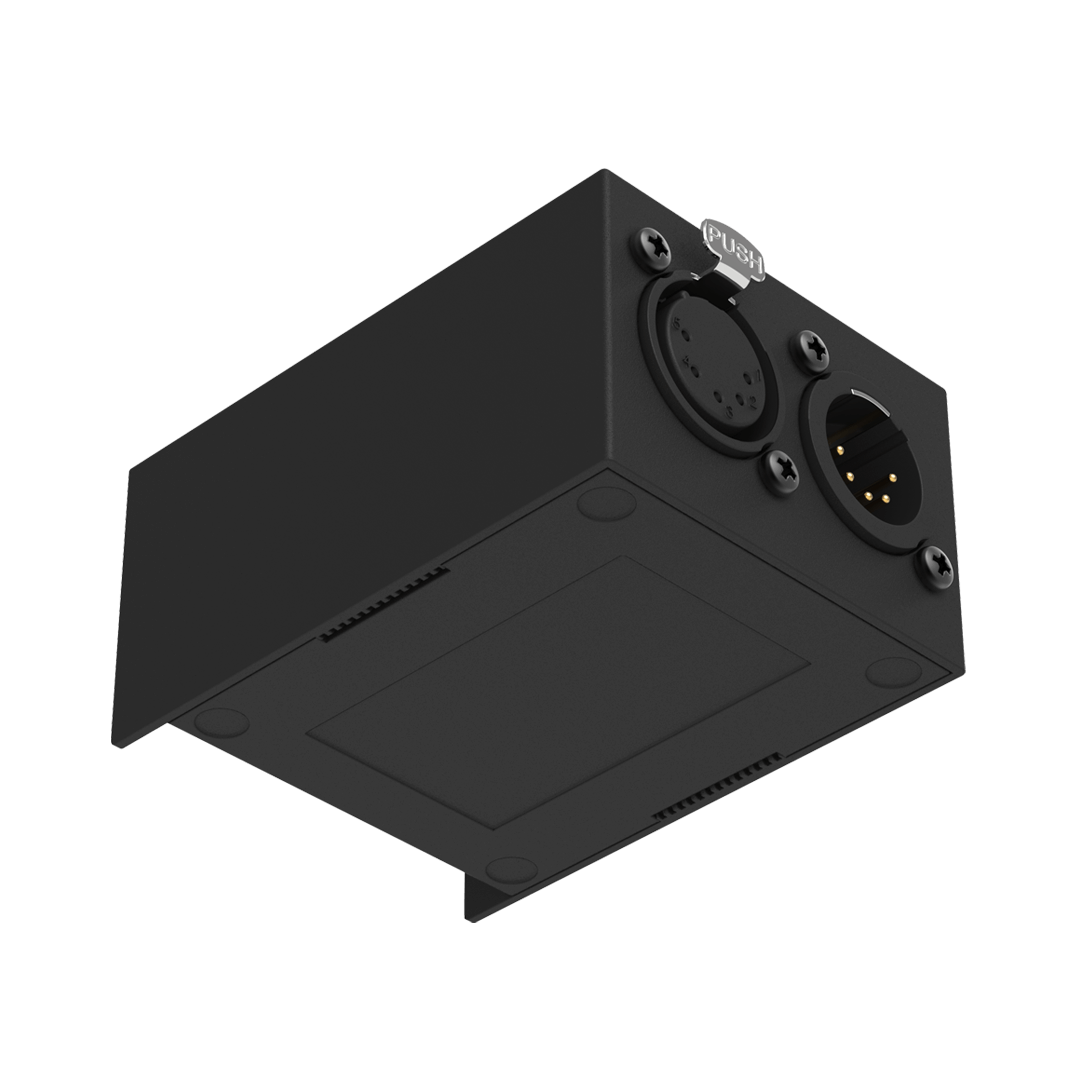

|Connectors 1 x DMX output (female XLR5), 1 x DMX input (male XLR5), 1 x USB 2.0 Type-B|
|Protocols USITT DMX512-A, ANSI E1.20 RDM1|
|Maximum output channels 1 universe (512ch)|
|Max. output refresh rate 40FPS|
|Configuration software ENTTEC EMU|
|Firmware updates ENTTEC EMU|
|LED status indicator Yes|
|Standalone playback No|
|Body material ABS plastic|
|IP rating IP20|
|Operating temperature 0°-50°C / 32°-122°F|
|Operating humidity 5- 95% (non-condensing)|
|Mounting options N/A|
|Unit dimensions 80mm (3.12in) x 58mm (2.28in) x 40mm (1.57in)|
|Unit weight 80 g / 0.18lbs|
|Shipping dimensions 237mm x 165mm x 71mm|
|Shipping weight 0.30kg / 0.66lbs|
|Warranty 3-year return to base manufacturer warranty|
|Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)|
See the example and documentation below to get started implementing the DMX USB PRO into your software.
