S-PLAY SP1-1

Engineered for projects that require precise automation, the S-PLAY smart light show controller is your all-in-one solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.

1 in stock

$2,300.00

SKU: 70092

32-universe, all-in-one DMX recorder + smart light show controller.

ENTTEC’s S-PLAY SP1-1 is a revolutionary smart show recorder and playback controller for hassle-free, professional light shows and automated projects.

Engineered for projects that require precise automation, the S-PLAY SP1-1 smart light show controller is your complete solution for the creation, recording, scheduling, triggering, and activation of not only light shows but video, machinery, and much more. Playback multiple shows simultaneously and install it almost anywhere with flexible mounting options.

In simple terms, think of it as being like a scene & animated effect creation engine, a 32-universe DMX recorder & playback engine and host for control interfaces that can send multiple AV specific protocols all rolled into one.

You can even create your own custom web interfaces in order to provide your end users with as much or as little control as they need.

With a built-in effects generator and intuitive, onboard controls to record, edit, schedule and play scenes, you don’t have to be an experienced lighting designer or systems integrator to conjure up amazing shows using our smart light show controller, but your audience will think you are.






Precision engineered + proudly made in Australia.

  • Create, record, edit, schedule and play back shows
  • Record and play up to 32 Universes of sACN or Art-Net
  • Ideal for home automation projects
  • User-friendly web interface
  • Trigger external events using a wide range of devices
  • Supports remote access over the internet

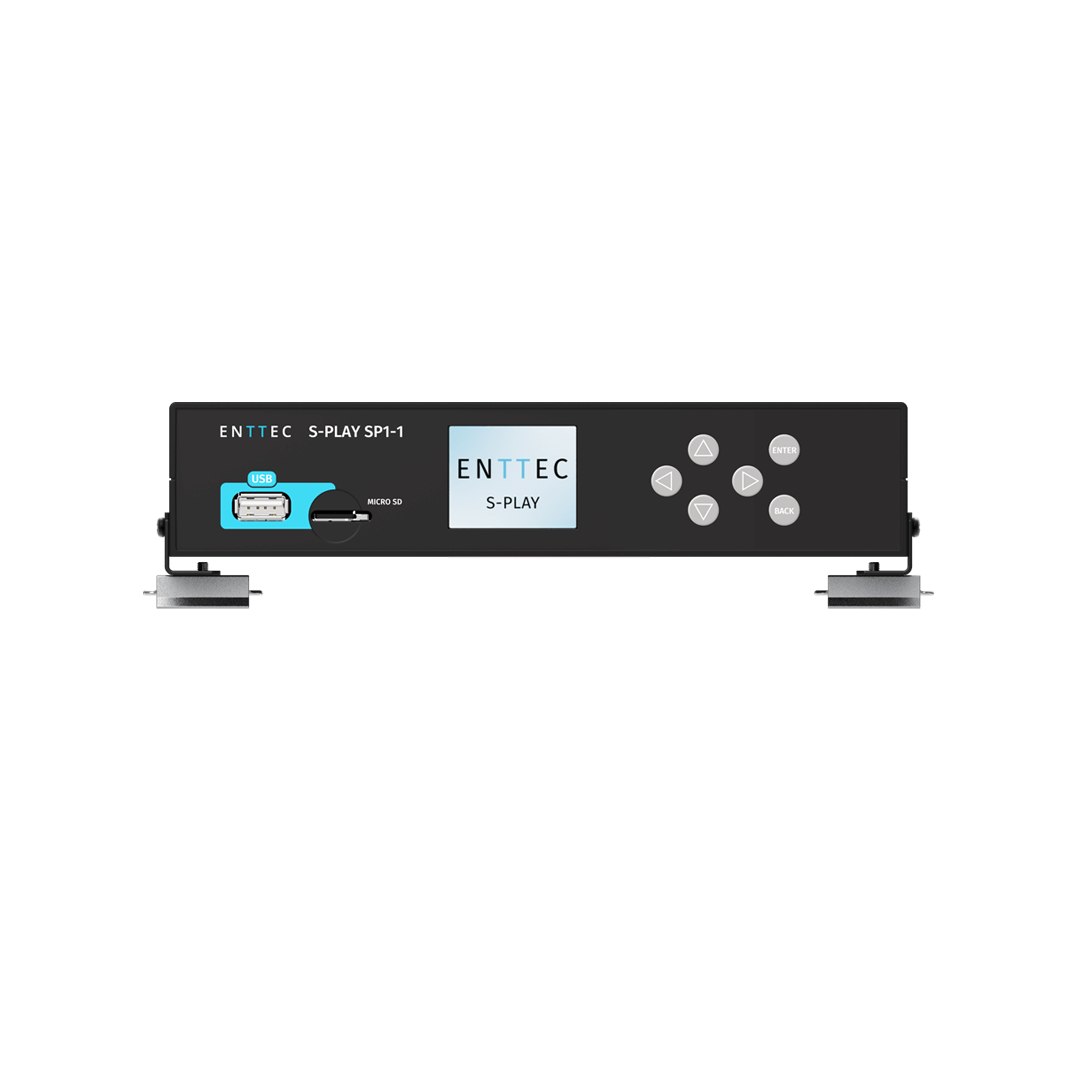

  • Onboard LCD menu + USB for backing up shows
  • Expandable storage using the SD card slot

Features

Use the web interface to create static scenes, effects & gradients. Alternatively, you can record up to 32 eDMX universes through either sACN, Art-Net, or two physical universes using the S-PLAY’s rear DMX ports.





Using the intuitive timeline editor, multiple recordings and scenes can be stitched together whilst adding popular AV specific triggers such as OSC, UDP, contact closure and more, allowing the S-PLAY to integrate into the heart of any control system.





Play back multiple shows simultaneously using the internal scheduler, your own custom user interface, or when triggered in real time by building automation software (e.g. Control4), iPad Apps, pressure pads, motion detectors, push buttons and more!








  • Home Automation
  • Building Automation Management
  • Conference Rooms
  • Façade Lighting
  • Art Installations
  • Hotel Lighting
  • System Control
  • Hospitality Lighting
  • Architainment Lighting

These are just some of the popular automation systems you can integrate the S-PLAY SP1-1 into. Unlock a world of potential by combining an S-PLAY with your existing home automation setup. Create decorative, circadian or even responsive lighting sequences to make your space a much happier place to be.

With countless applications from entertainment venues or events to architectural design and smart home integrations, E N T T E C ‘s S-PLAY series is the dream companion for any interactive or automation project.

Connectivity

Intuitive web interface.

Manage and program your S-PLAY SP1-1 using its intuitive browser interface, with everything you need at your fingertips.

Record and edit up to 200 static, dynamic and effect cues, as well as 200 playlists using the intuitive timeline editor.

With support for 200 events, assign remote triggers and map different streams and protocols to different ports.

Even create a custom interface to give the end-user only the simple the options they need at hand.

Talk to the ENTTEC team today and learn how the S-PLAY SP1-1 can take your project to a whole new level.

Contact an Expert

Technical specifications

Hardware

Input voltage 12V DC to 24V DC
Power input DC jack (12V PSU & international plugs included)
Max power draw 8W
Ethernet port / PoE RJ45 / PoE IEEE 802.3af

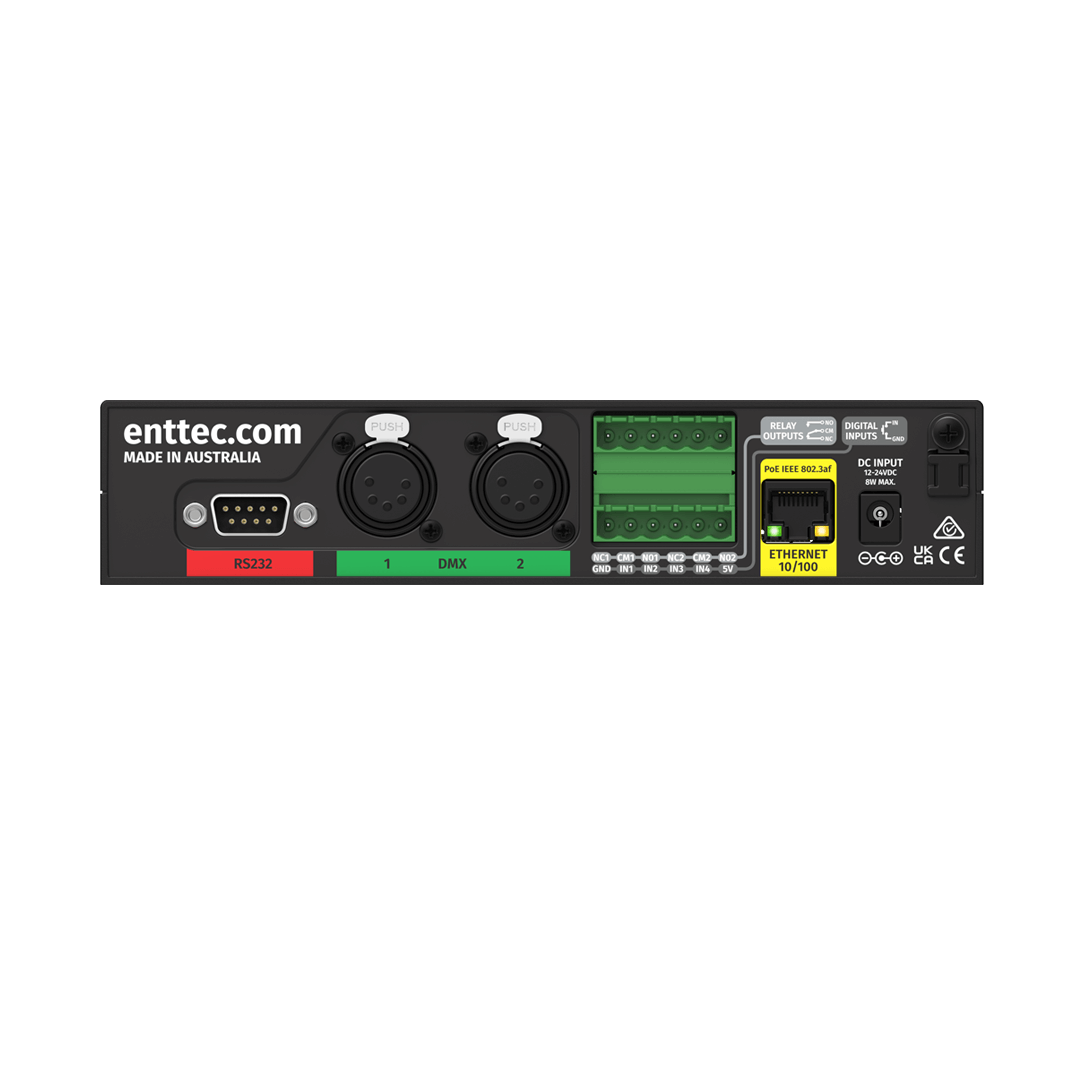

DMX port 2 x 5-pin XLR (female)
Digital input 4 digital inputs + 1 GND + 1 5V (6-pin screw terminal)
Relay 2 x relay 6-pin screw terminal (max limits, 50V DC or 60W)
Internal show storage capacity 8GB (~10 hours of 32 universes at 44fps)
Expandable storage / external memory Removable USB + Micro SD card

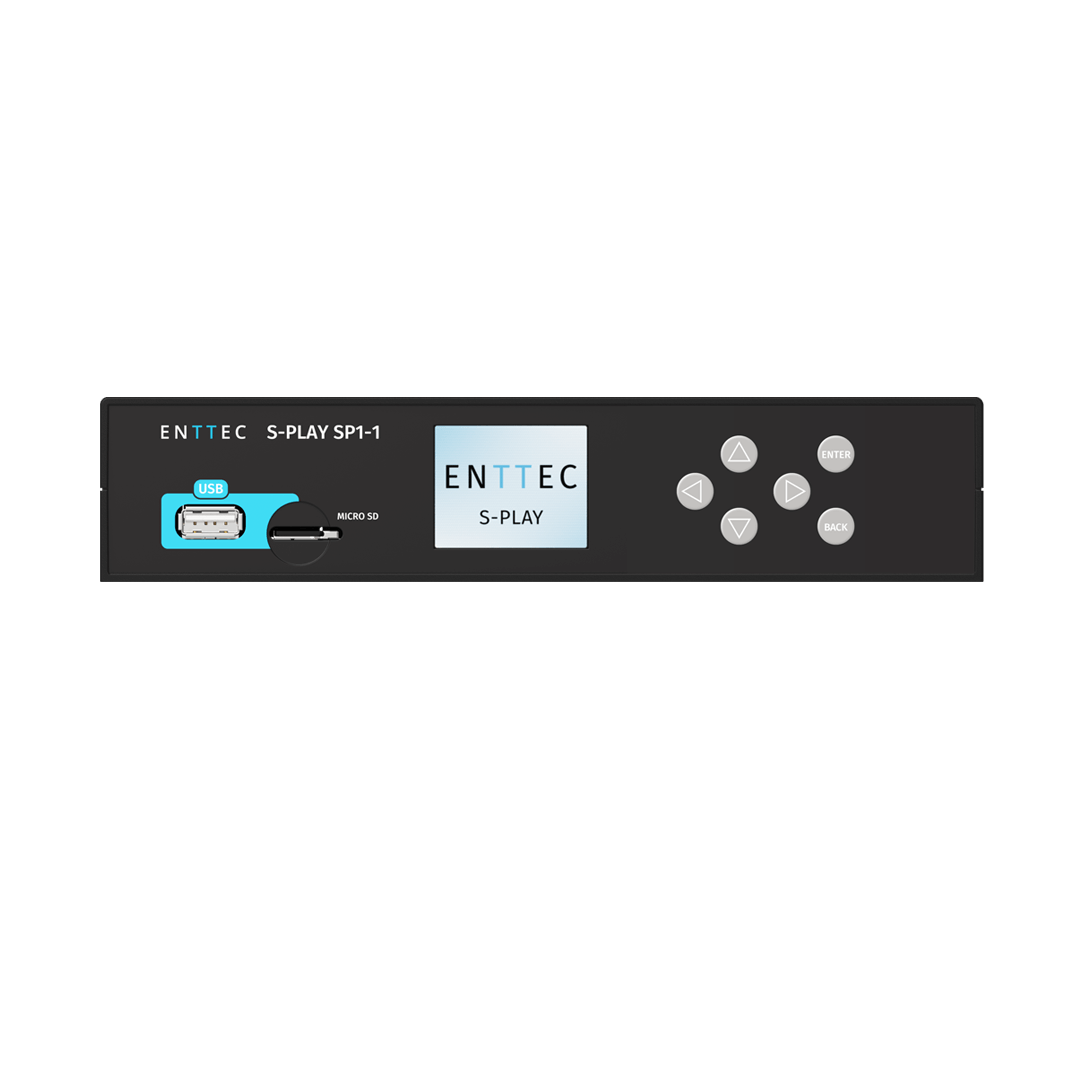

LCD + buttons Yes
Factory reset Web interface / LCD menu

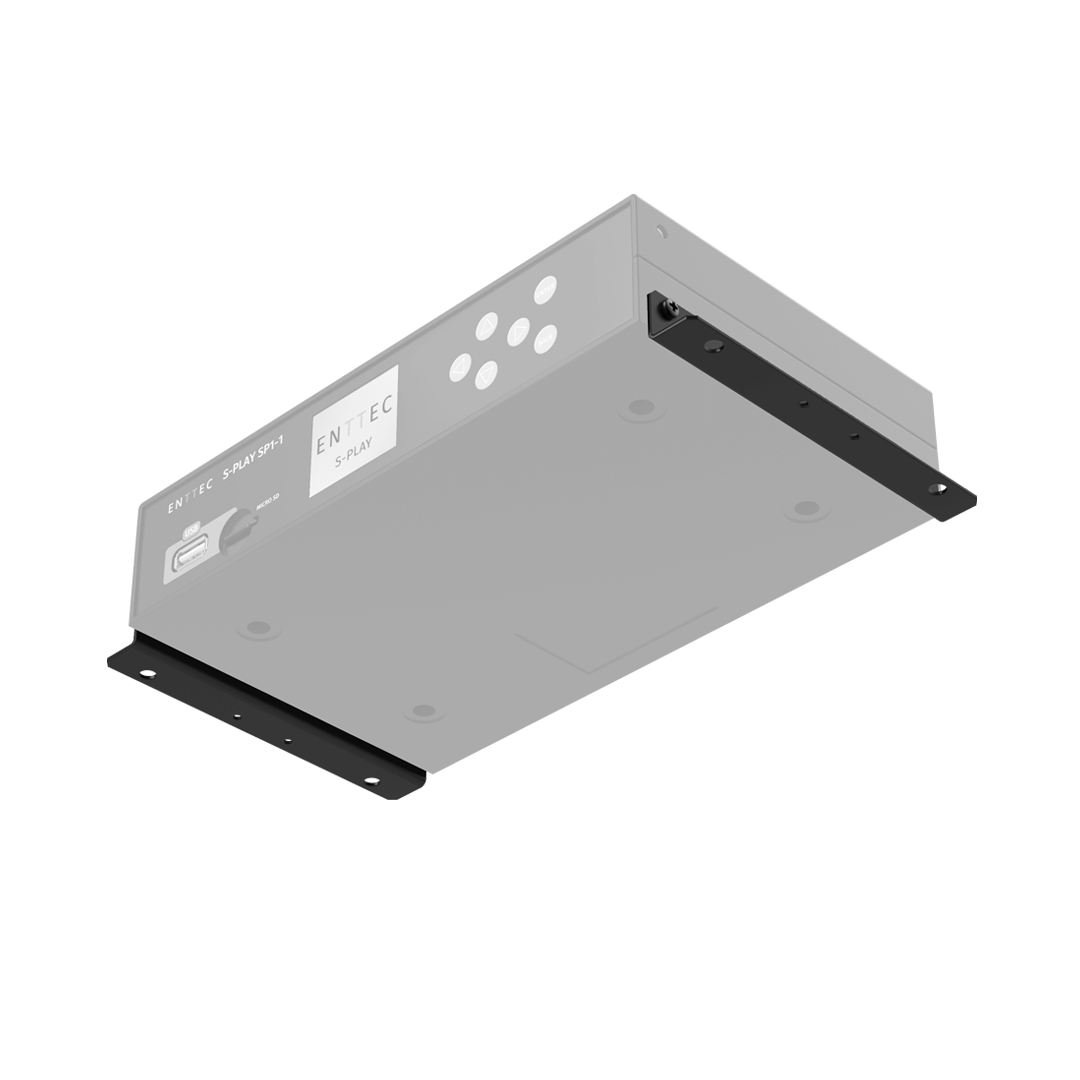

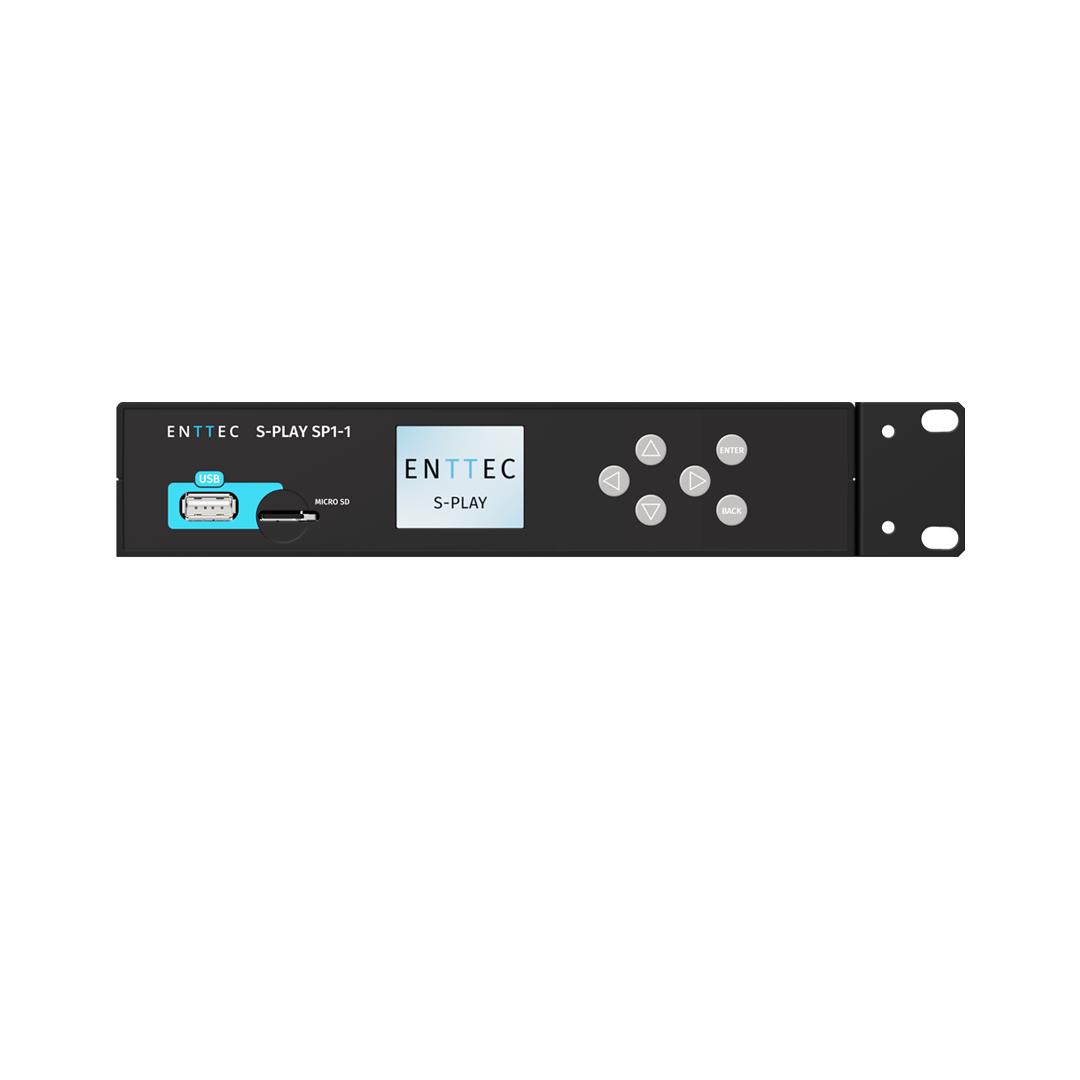

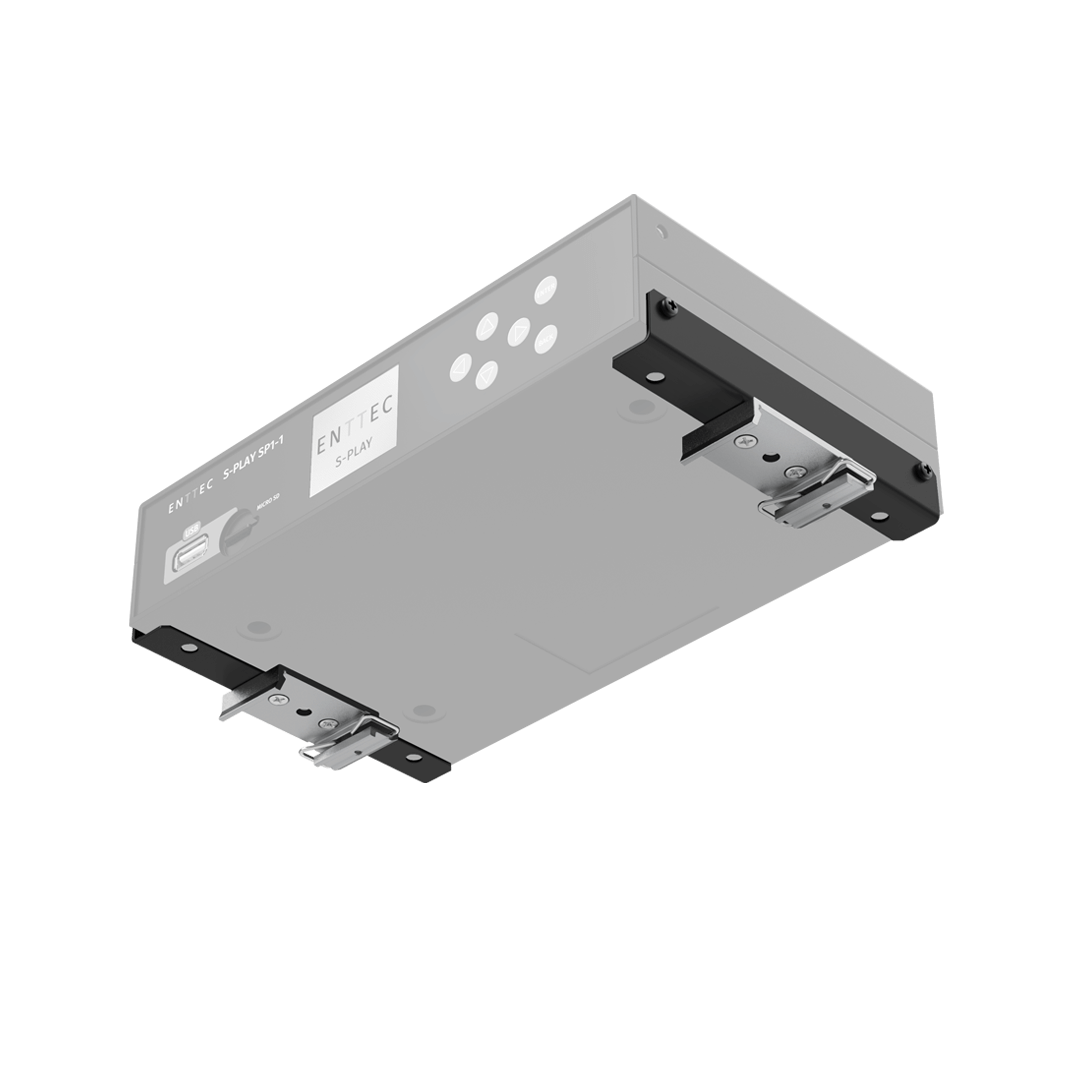

Mounting Rack, surface & TS35 DIN rail mountable (ears, clips & screws included)
IP rating IP20
Environmental operating temperature 0°C to 50°C / 32°F to 122°F
Environmental operating humidity 0 to 95% (non-condensing)
Cooling method Convection
Body material ABS plastic & anodized aluminum
Unit dimensions 200mm x 120mm x 42 mm
Unit weight 0.85kg / 1.87lbs
Shipping dimensions 310mm x 260mm x 75 mm
Shipping weight 1.20kg / 2.65lbs
Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Warranty 3-year return to base manufacturer warranty

Software

DMX universe playback 2U (1024 channels of USITT DMX512-A)
Art-Net / sACN universe playback 32U (16,384 channels)
Max refresh rate (FPS) Art-Net & sACN: 60 / USITT DMX512-A: 44
Max playlist count 200
Max cue track per playlist 4
Max Cues (including Static, Dynamic and Effect) 200
Max Triggers 200
Max Events 200
Max custom interface 10
OSC API Yes
HTTP API Yes
Scheduler Yes
Remote access Yes
Multi-sync Yes





Let’s get started!

Ever wanted to know the perfect recipe to make a stunning yet simple interactive and automated LED lighting setup?

Join our head chef, Nic, as he takes you through a basic configuration using the S-PLAY and an external button to flick between cues.

We’ll also take a look at the S-PLAY’s intuitive web interface and learn the essentials of the unit’s capabilities.

Follow this easy lesson and you’ll be up and running in no time!

NOTE: The S-PLAY hardware and its web interface have seen continual improvements and visual modifications since this video was produced, although its core functionality remains the same. The Pixie Driver is a legacy product, but there are many current ENTTEC LED controllers you could use in its place, e.g., the OCTO. Enjoy!

Downloads



DATA SHEETS

S-PLAY SP1-1
data sheet

DOCUMENTATION

S-PLAY SP1-1 user manual

S-PLAY SP1-1 specification

FIRMWARE

S-PLAY Firmware v2.2.2

S-PLAY SP1-1 release notes

IMAGES

S-PLAY SP1-1
CAD drawing + dimensions

S-PLAY SP1-1
hi-res images
(27.4MB)

GUIDES

S-PLAY SP1-1
HTTP API

S-PLAY SP1-1
OSC API

S-PLAY SP1-1
TouchOSC guide

S-PLAY SP1-1
remote access guide

S-PLAY SP1-1
EN-Case installation guide

ARTICLES

S-PLAY knowledge base





Please select a language

English

French

Spanish



S-PLAY: the heart of your installation.

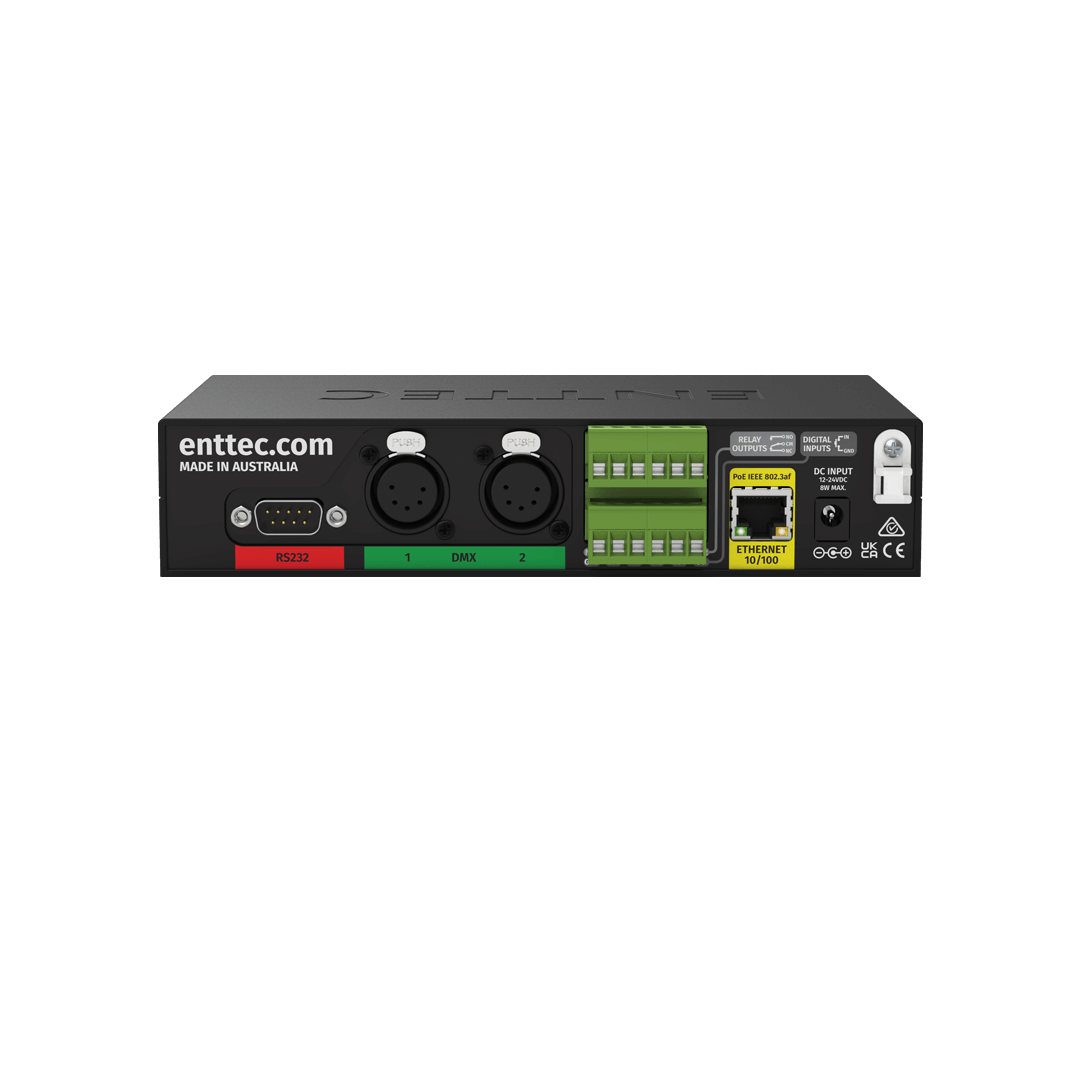

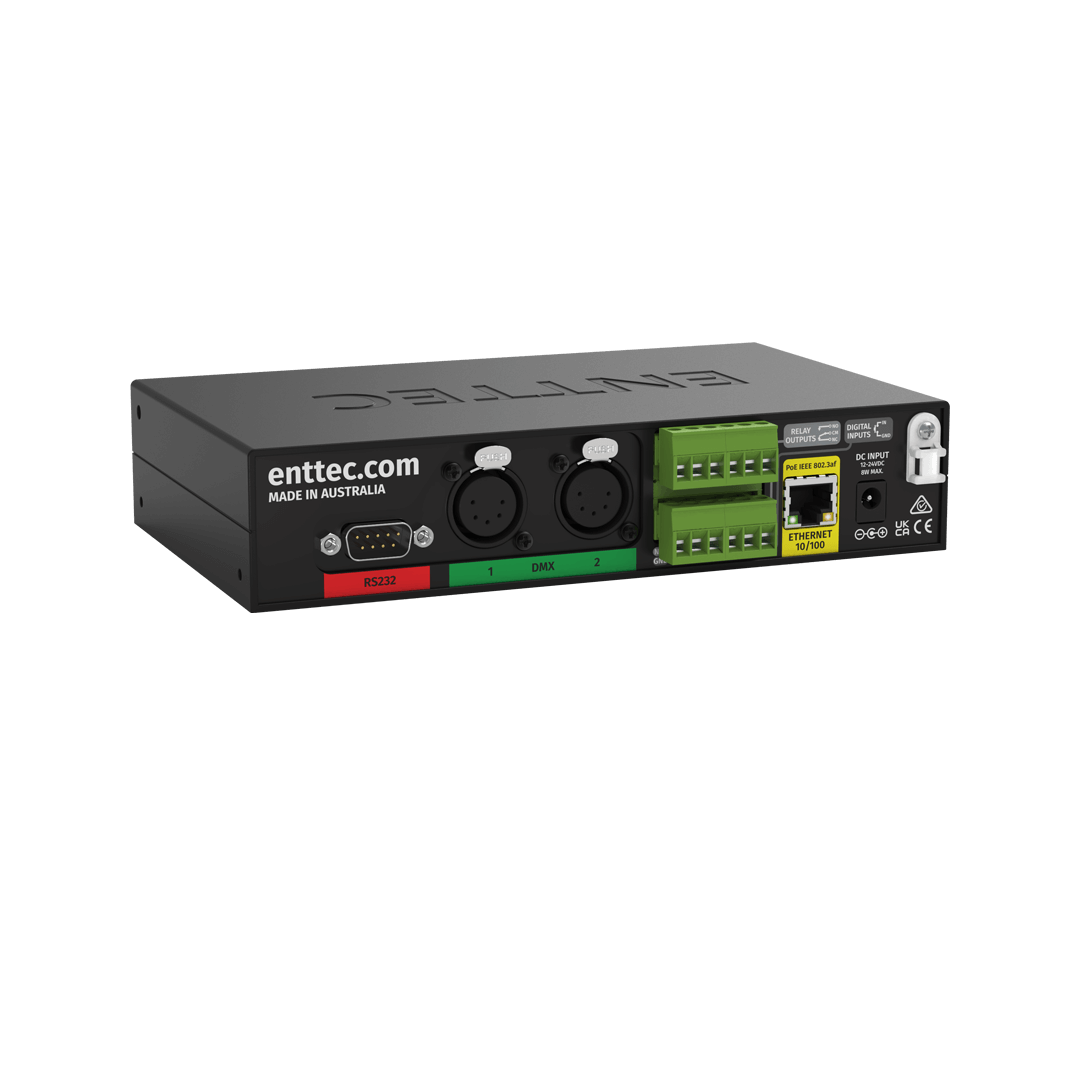

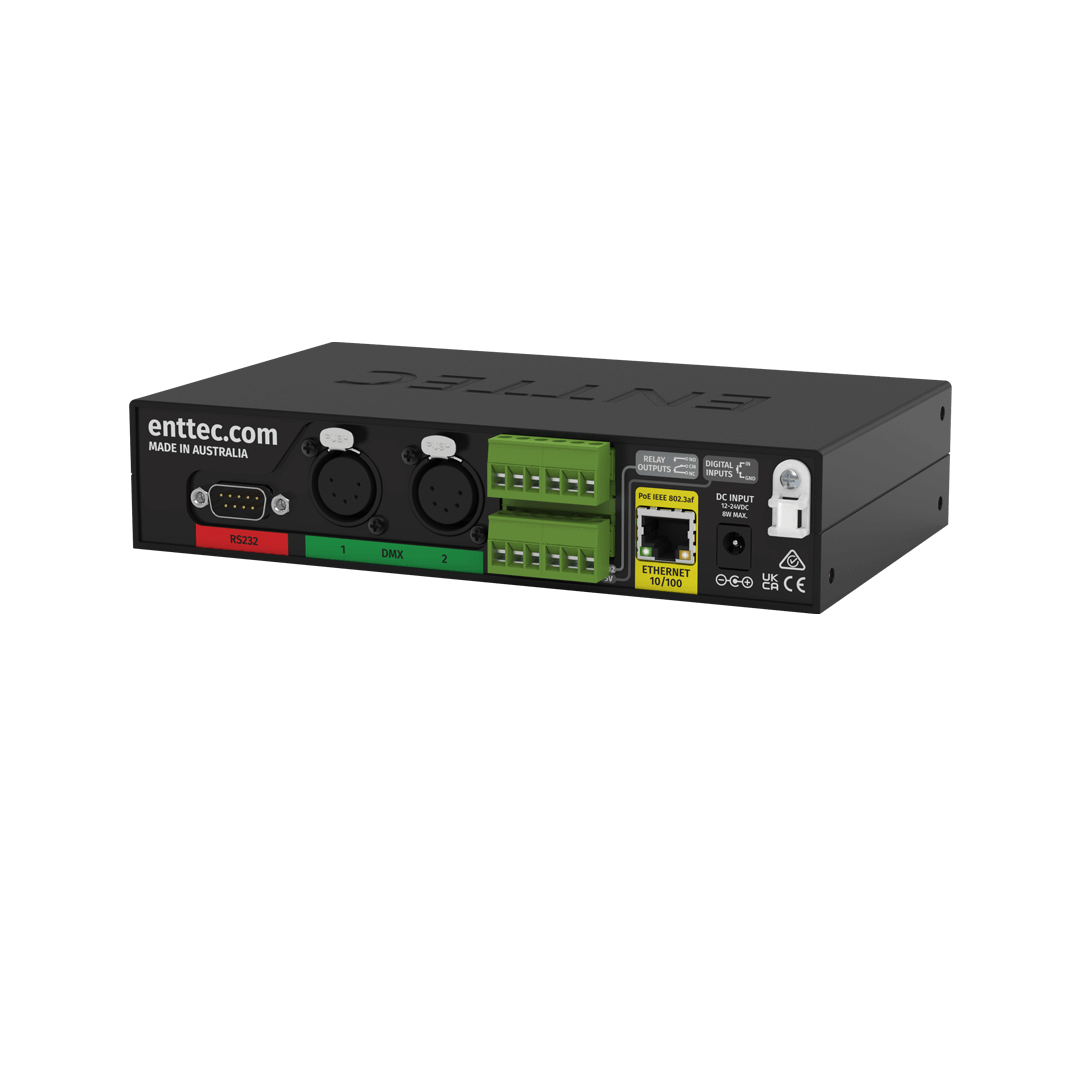

It’s not only the S-PLAY’s software that makes integration a breeze – its flexible hardware and I/O options mean that connection to other devices on any surface is really simple.

By pairing it with other ENTTEC products you can create powerful infrastructure and control systems easily. Take this system for controlling large quantities of LED strip put together by New Aspect Design to dim multiple LED zones from triggers or to a schedule.

As well as the CVC4 LED dimmer, you can also combine an S-PLAY show controller with other ENTTEC devices such as the STORM10 Ethernet to DMX gateway to give you more physical DMX outputs on your network, or the PIXELATOR MINI LED pixel controller make control of LED pixel installations simple.

In any automation setup, S-PLAY integration possibilities are virtually endless and limited only by your imagination.

See how the S-PLAY SP1-1 show controller can enhance your installation
