9VLW – RGBW LED tape (10m)

The RGBW LED strip provides ultimate RGBW output and is designed and produced to the highest ENTTEC quality standards.

SKU: 9VLW-10

High-density, outstanding performance, and unmatched output

This high-grade RGBW LED strip provides the ultimate RGBW output thanks to a brilliant design. With high density, power and performance the RGBW LED strip outshines the competition. This is the best RGBW strip you will ever use.

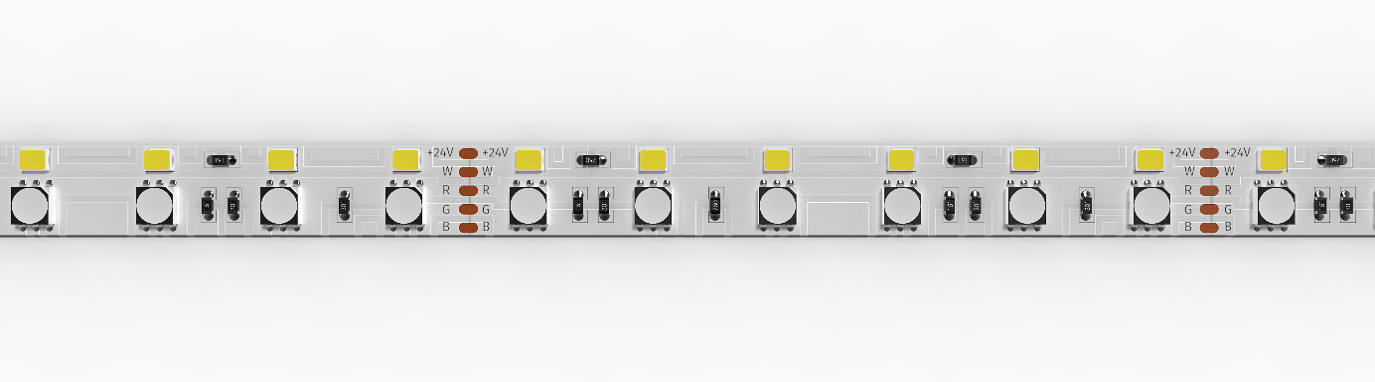

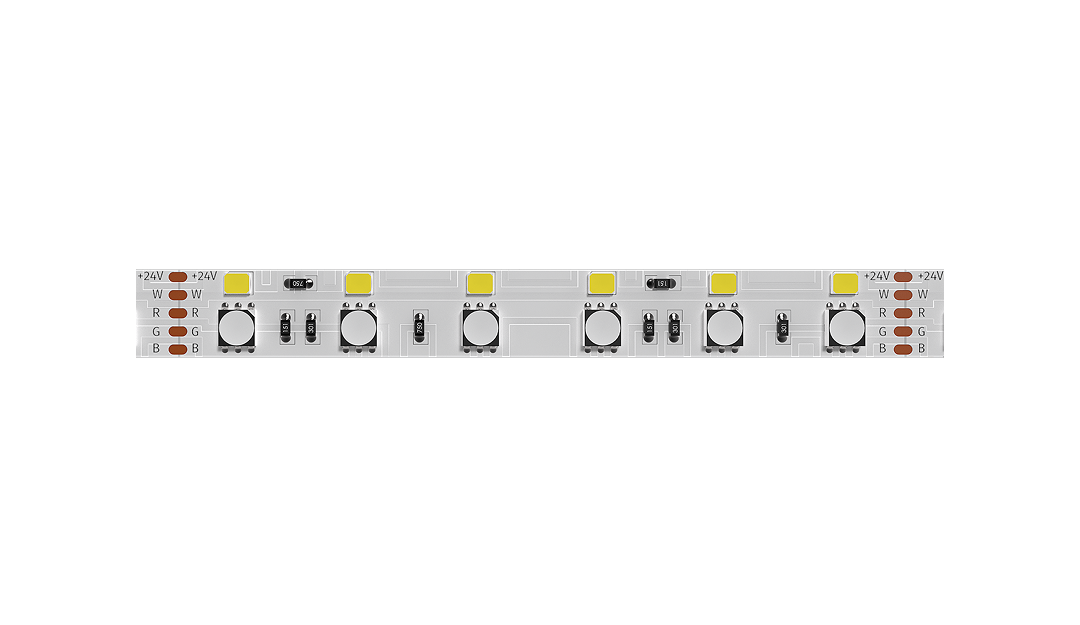

A short section of the RGBW LED strip on a plain background, small square white emitters staggered above six larger RGB emitters, with resistors between them and +24V, W, R, G and B solder pads at each end.

Image 1 of 1

High grade RGBW

Thanks to a brilliant output configuration, 9VLW is the best RGBW strip to ever come out of the ENTTEC LED factory. You’ll experience quality unlike any other tape on the market.

Power and performance

Highly efficient at less than 17.28W total power consumption per metre. Copper track for effective heat dissipation and long life.

High density

With 60 high quality RGB and White LEDs crafted per metre, this tape outshines the competition.

1-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 1-year return-to-base manufacturer warranty on this product.

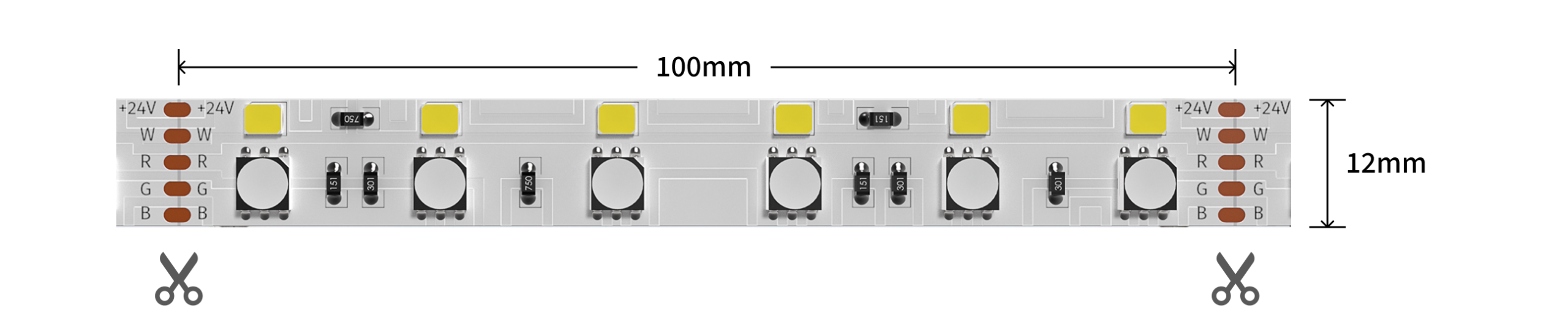

A dimensioned close-up of the RGBW LED strip, a staggered row of white emitters above a row of larger RGB emitters on a white board, with +24V, W, R, G and B solder pads and scissor cut marks, a 100mm span arrow along the top and 12mm marked across the width.

Specifications

Connectors and network
Connection (In/Out)5Pin solder tabs
Output and control
LED quantity60pcs / mtr
Lumens/meter (max)Red, 66
Green, 179
Blue, 42.6
White, 562
CCT (All LEDs RGB On)7000K
CCT White4000K SDCM3
Beam angle120°
Power and thermal
Input voltage24V
Current consumption (max)0.73A / mtr
Watts/meter (max)Red, 4.45
Green, 3.31
Blue, 3.12
White, 6.4
Working/Storage temperature-30~55°C / 0°C~60°C
Environmental operating humidity5-95% (non-condensing)
Physical and supply
IP ratingIP20
PCB ColorWhite
Led strip width12mm / 0.47”
Spacing between cuttable sections100mm / 3.93”
Shipping weight (10m roll)0.30Kg / 0.66lbs
Shipping dimensions (10m roll)250mm x 250mm x 35mm / 9.84″ x 9.84″ x 1.38”
Warranty1-year return-to-base manufacturer warranty

Resources

Data sheet
Lit vertical strands hanging through a gilded period room, with headphones resting on a round listening table.
V&A Museum

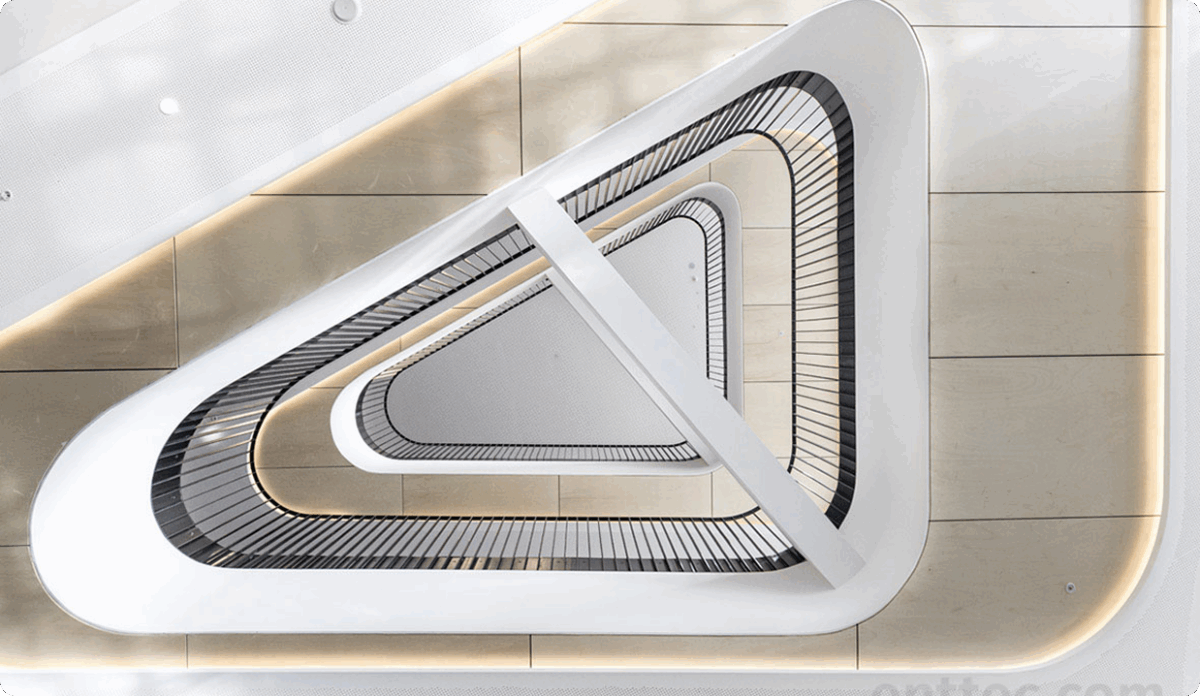

A triangular stairwell seen from directly below, its flights spiralling inward with a warm LED line running along each white balustrade edge.
PLC Burwood

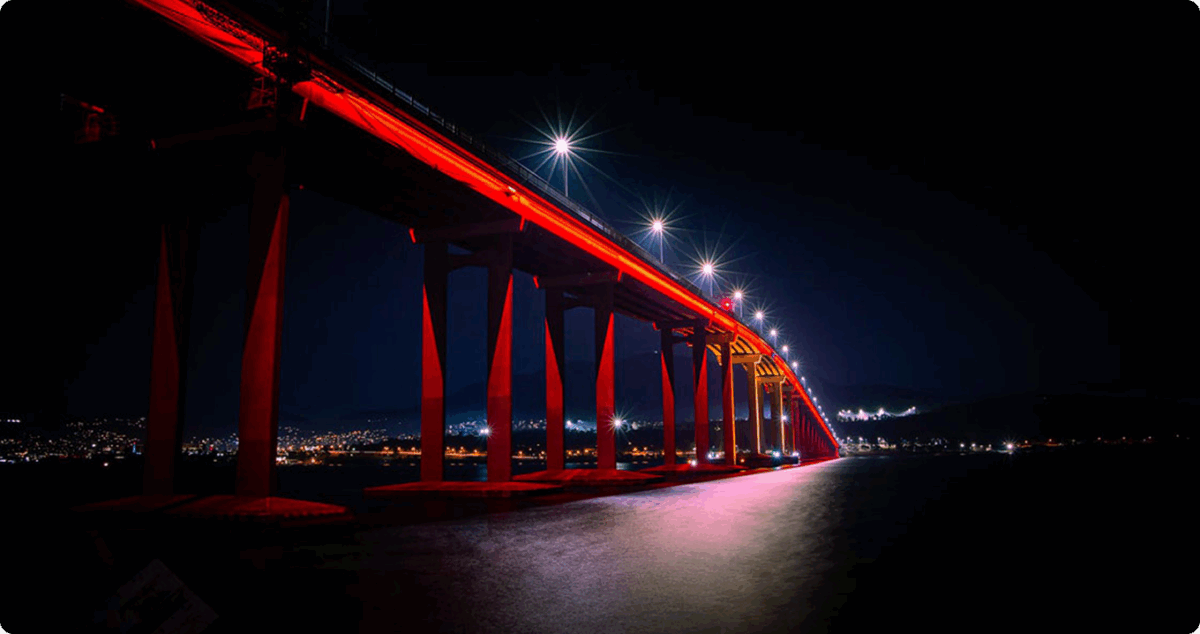

A bridge from below at night, red-lit piers receding under the deck and the lights of the town across the water.
