9VL4 – RGB LED tape (10m)

RGB LED strip featuring video grade LED’s designed and produced to ENTTEC’S high standard for long term installations that demand consistency.

SKU: 9VL4-10

Professional RGB strip designed for long-term durability

9VL4 RGB tapes provides ultimate RGB output, and is designed and produced to the highest ENTTEC quality standards. We think it’s the best RGB tape you will ever use.

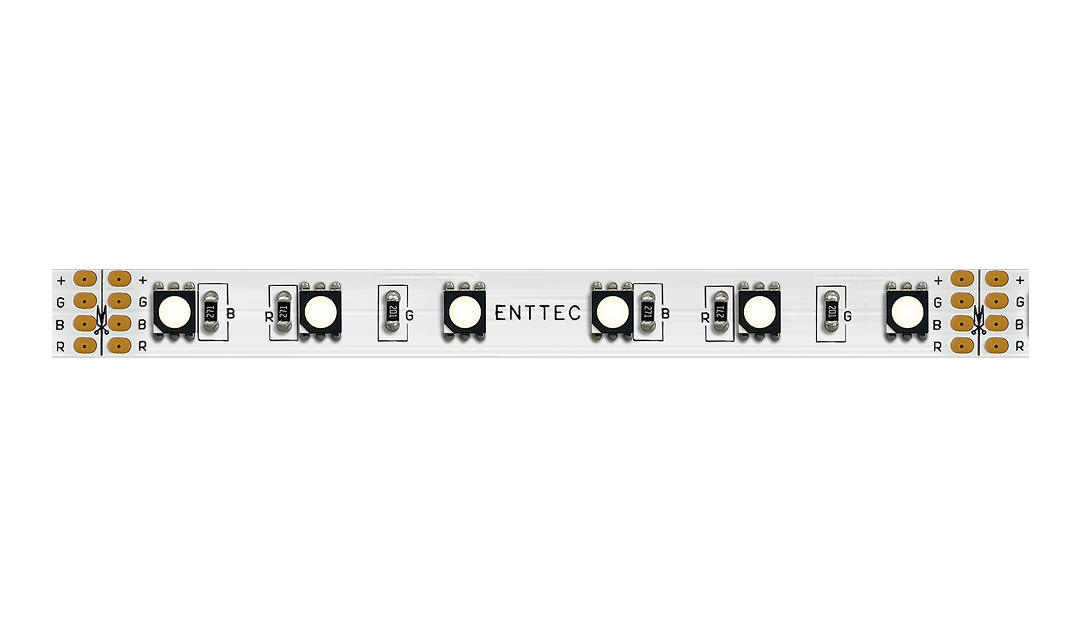

A short section of the RGB LED strip on a plain background, six black 5050 emitters with resistors between them, ENTTEC printed on the white board and +, G, B and R solder pads with cut marks at both ends.

Image 1 of 1

High grade RGB

Thanks to a brilliant output configuration, 9VL4 is the best RGB tape to ever come out of the ENTTEC LED factory. You’ll experience quality unlike any other tape on the market.

High density

With 60 high quality RGB LEDs crafted per metre, this tape outshines the competition.

Power and performance

Highly efficient at less than 11W total power consumption per metre. Copper track for effective heat dissipation and long life.

1-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 1-year return-to-base manufacturer warranty on this product.

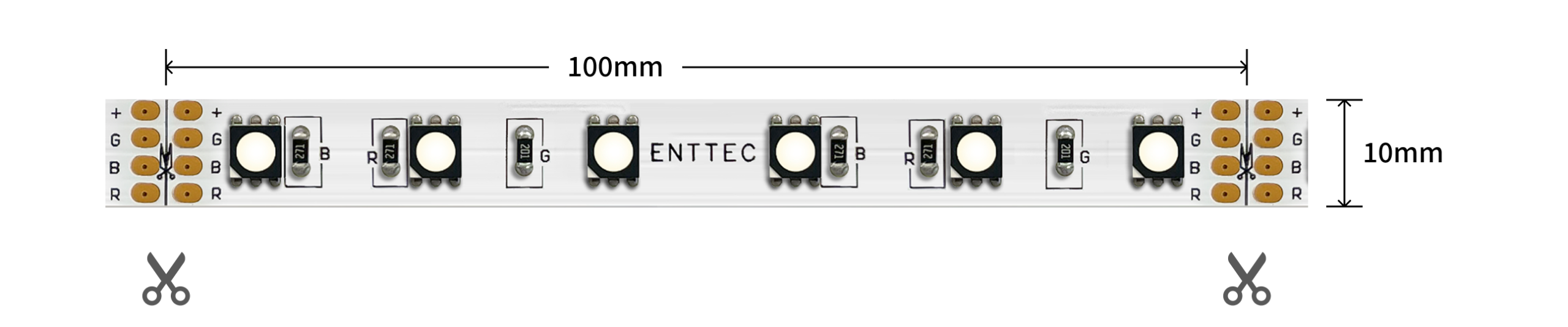

A dimensioned close-up of the RGB LED strip, six black-bodied 5050 emitters and resistors along a white board printed ENTTEC, with +, G, B and R solder pads and scissor cut marks at each end, a 100mm span arrow along the top and 10mm marked across the width.

Specifications

Connectors and network
Connection (In/Out)4Pin solder tabs
Output and control
LED quantity60pcs / mtr
Lumens/meter (max)Red, 66
Green, 179
Blue, 42.6
White (R+G+B), 287.6
White Temperature (R+G+B)7000K
Beam angle120°
Power and thermal
Input voltage24V
Current consumption (max)0.45A / mtr
Watts/meter (max)Red, 4.45
Green, 3.31
Blue, 3.12
White (R+G+B), 10.87
Working/Storage temperature-30~55°C / 0°C~60°C
Environmental operating humidity5-95% (non-condensing)
Physical and supply
IP ratingIP20
PCB ColorWhite
PCB Width10mm / 0.39”
Spacing between cuttable sections100mm / 3.93”
Shipping weight (10m roll)0.25Kg / 0.55lbs
Shipping dimensions (single roll)250mm x 255mm x 30mm / 9.84″ x 10.04″ x 1.18”
Warranty1-year return-to-base manufacturer warranty

Resources

Data sheet
