1-Universe, DIN-rail-mountable solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.



SKU: 70095

DIN-rail-mountable DMX recorder + smart light show controller.

ENTTEC’s S-PLAY NANO is a robust and compact show recorder and playback controller that streamlines your light show by seamlessly integrating external hardware, enabling you to achieve professional lighting control with ease.

S-PLAY NANO generates a maximum of 4 light Static/Dynamic/Effect Cues by recording one complete Universe via DMX port live recording. Alternatively, you have the option to use the onboard pixel effects generator – an easy-to-use tool for creating gradient Effect Cues in just a matter of minutes.

The S-PLAY NANO gives you the ability to fully integrate external devices into your installation – and not just light fixtures. Receive triggers from buttons, switches or sensors to automate 3rd party devices or machinery using contact closures, UDP or OSC.

Using the S-PLAY NANO’s handy web browser interface, simply drag and drop within the timeline to design up to four playlists using created Cues, Events and Triggers as building blocks. Control the priority, fade times, number of play counts, and master intensities to tweak your playlists.

Play back your program on power up with preset loop times, or choose to trigger the playlists with external triggers in a different fashion to play back up to four playlists simultaneously overlapping and blending with each other, with different groups and priorities.

Precision engineered + proudly made in Australia.

  • Create, record, edit and play back shows
  • Record 1 Universe of DMX512 data
  • Ideal for home automation projects
  • User-friendly web interface
  • Trigger external events using a wide range of devices
  • Portable or DIN-rail-mountable


Use the web interface to create static scenes, effects & gradients. Alternatively, you can record one universe using DMX512.

Using the intuitive timeline editor, multiple recordings and scenes can be stitched together whilst adding popular AV specific triggers such as OSC, UDP, contact closure and more, allowing the S-PLAY to integrate into the heart of any control system.

Play back multiple shows simultaneously using the internal scheduler, your own custom user interface, or when triggered in real time by building automation software (e.g. Control4), iPad Apps, pressure pads, motion detectors, push buttons and more!

  • Home Automation
  • Building Automation Management
  • Conference Rooms
  • Façade Lighting
  • Art Installations
  • Hotel Lighting
  • System Control
  • Hospitality Lighting
  • Architainment Lighting

These are just some of the popular automation systems you can integrate the S-PLAY NANO into. Unlock a world of potential by combining an S-PLAY with your existing home automation setup. Create decorative or even responsive lighting sequences to make your space a much happier place to be.

With countless applications from entertainment venues or events to architectural design and smart home integrations, E N T T E C ‘s S-PLAY series is the dream companion for any interactive or automation project.


Intuitive web interface

Manage and program your S-PLAY NANO using its intuitive browser interface, with everything you need at your fingertips.

Record and edit up to 4 static, dynamic or effect cues, and up to 4 playlists using the intuitive timeline editor.

With support for 4 events, assign remote triggers and map different streams and protocols to different ports.

Even create a custom interface to give the end-user only the simple the options they need at hand.

Talk to the ENTTEC team today and learn how S-PLAY can take your project to a whole new level.

Contact an Expert

Technical specifications


Input voltage 12V DC to 24V DC
Power input 2-pin Phoenix screw terminal
Max power draw 3W

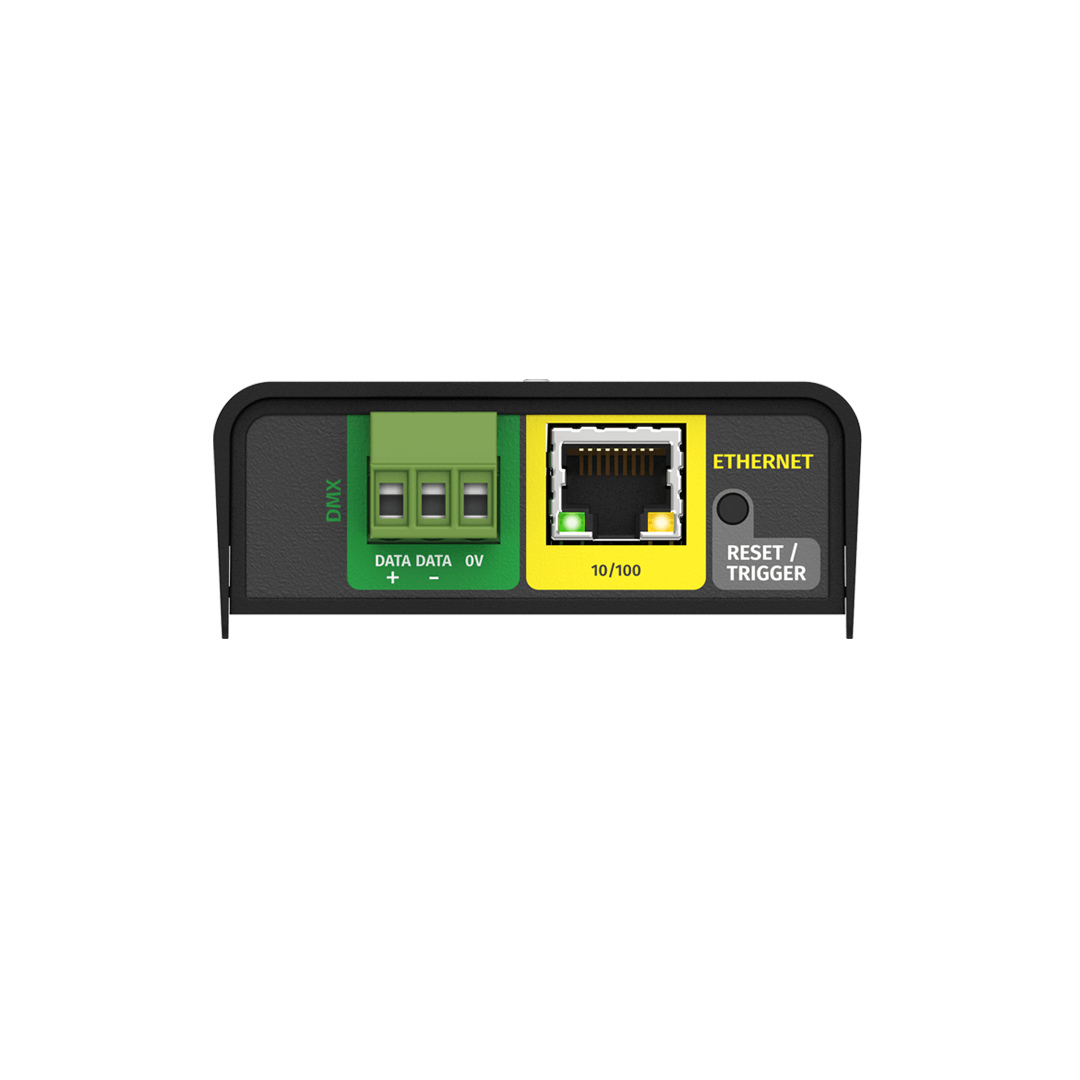

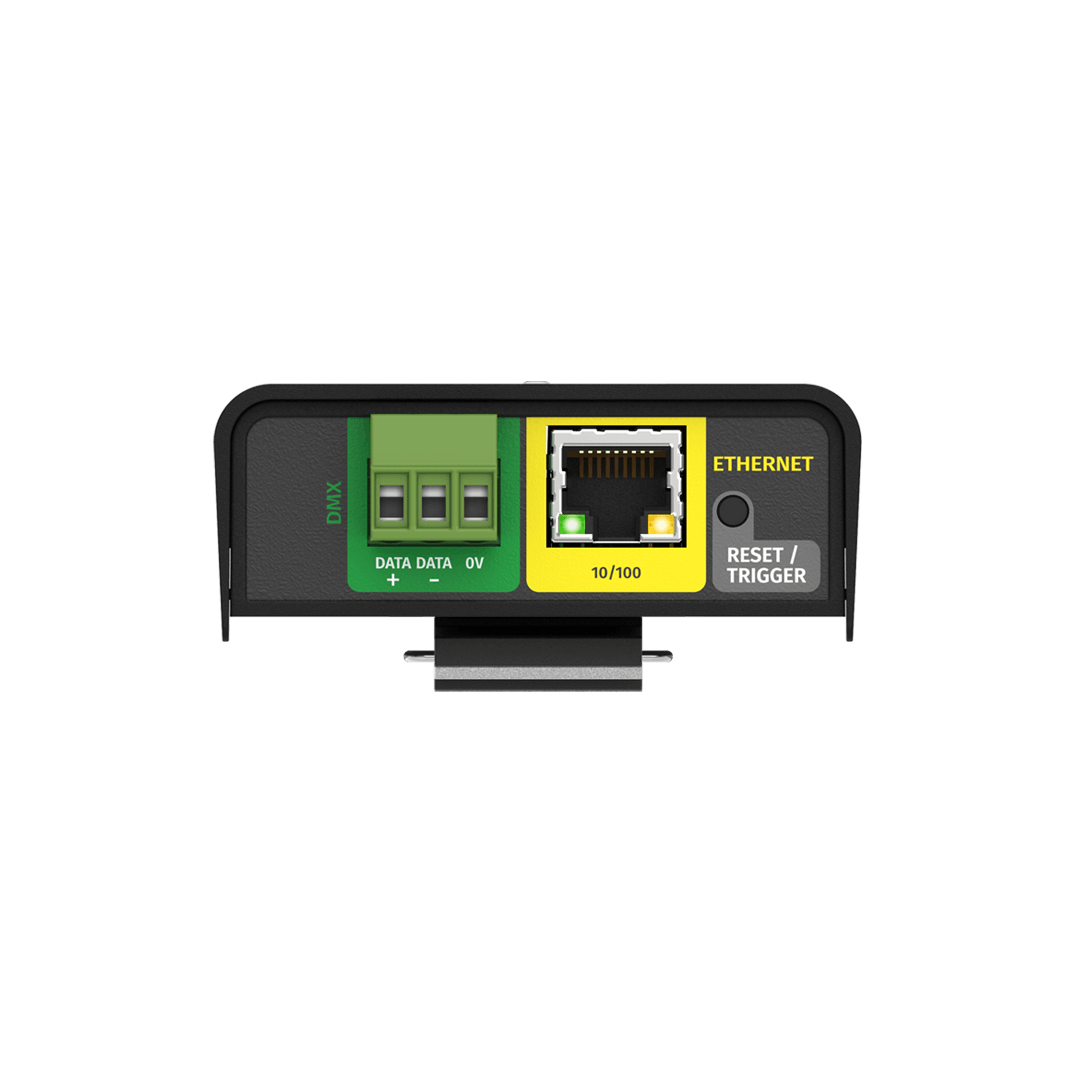

Ethernet port RJ45
DMX port Bi-directional 1 x 3-pin Phoenix screw terminal

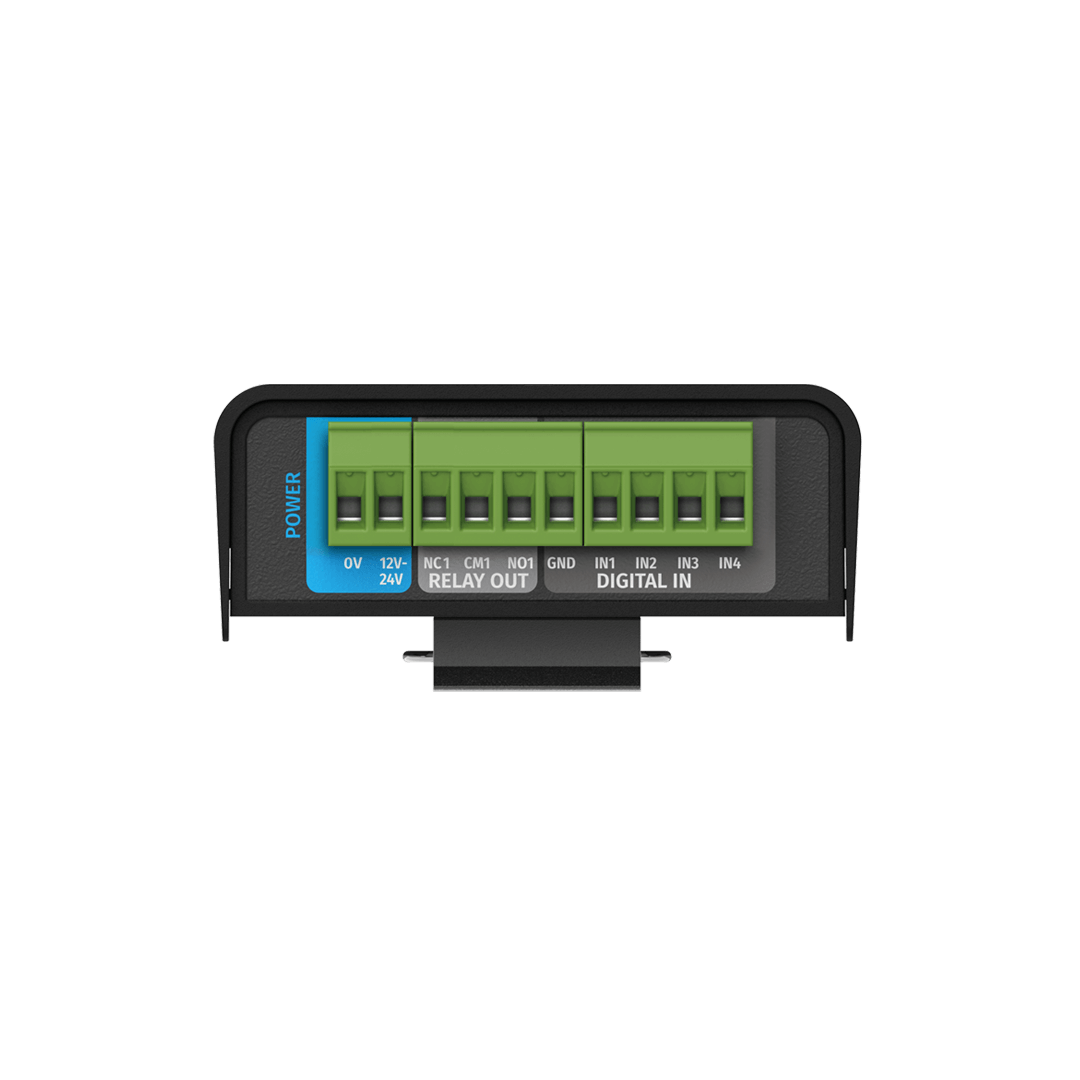

Digital input 4 digital inputs + 1 GND (5-pin Phoenix screw terminal)
Relay 1 x relay (3-pin screw terminal)
Internal show storage capacity 1GB

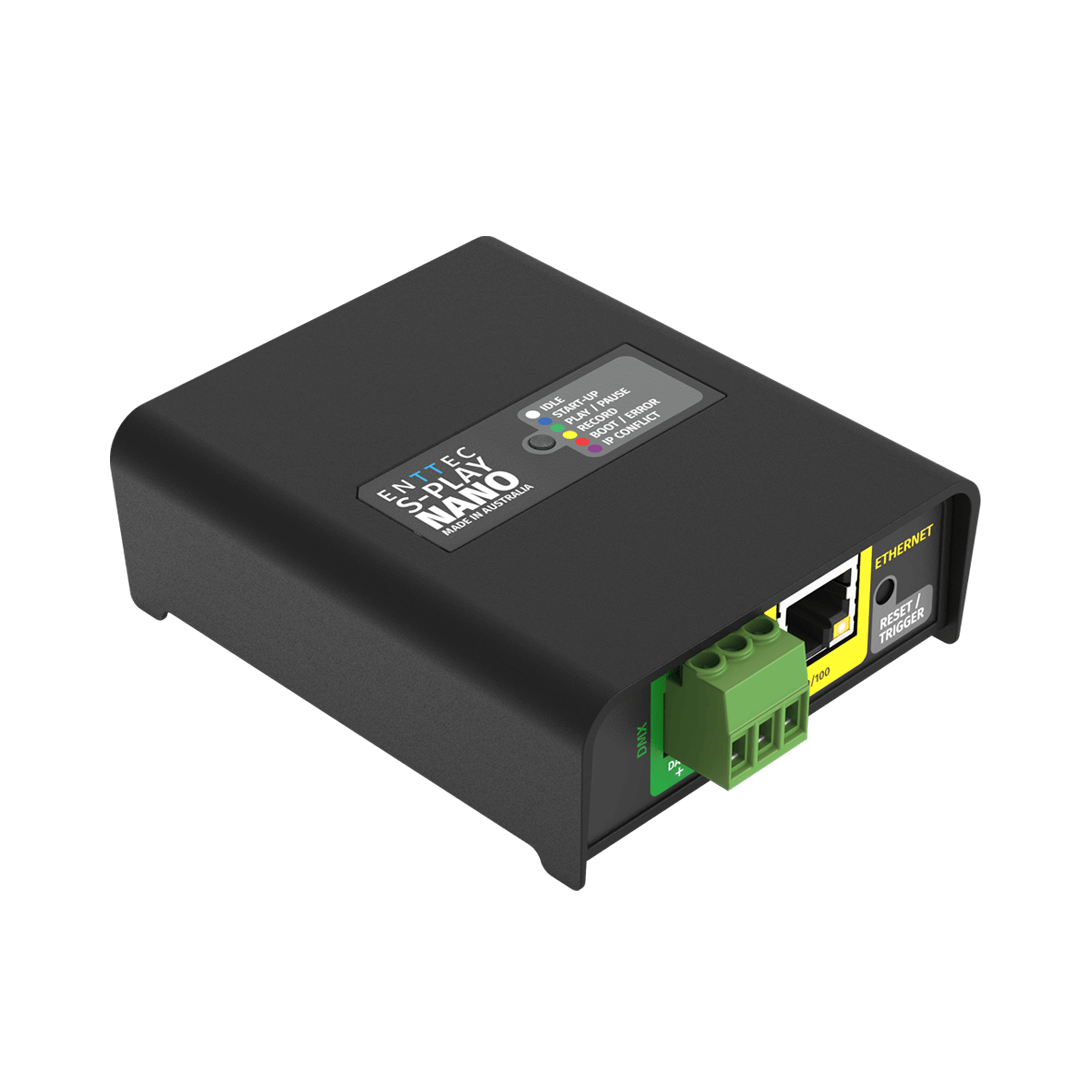

LED indicators Forward-facing LED indicator + network link/activity (integrated into RJ45 port)
Factory reset Web interface / reset button

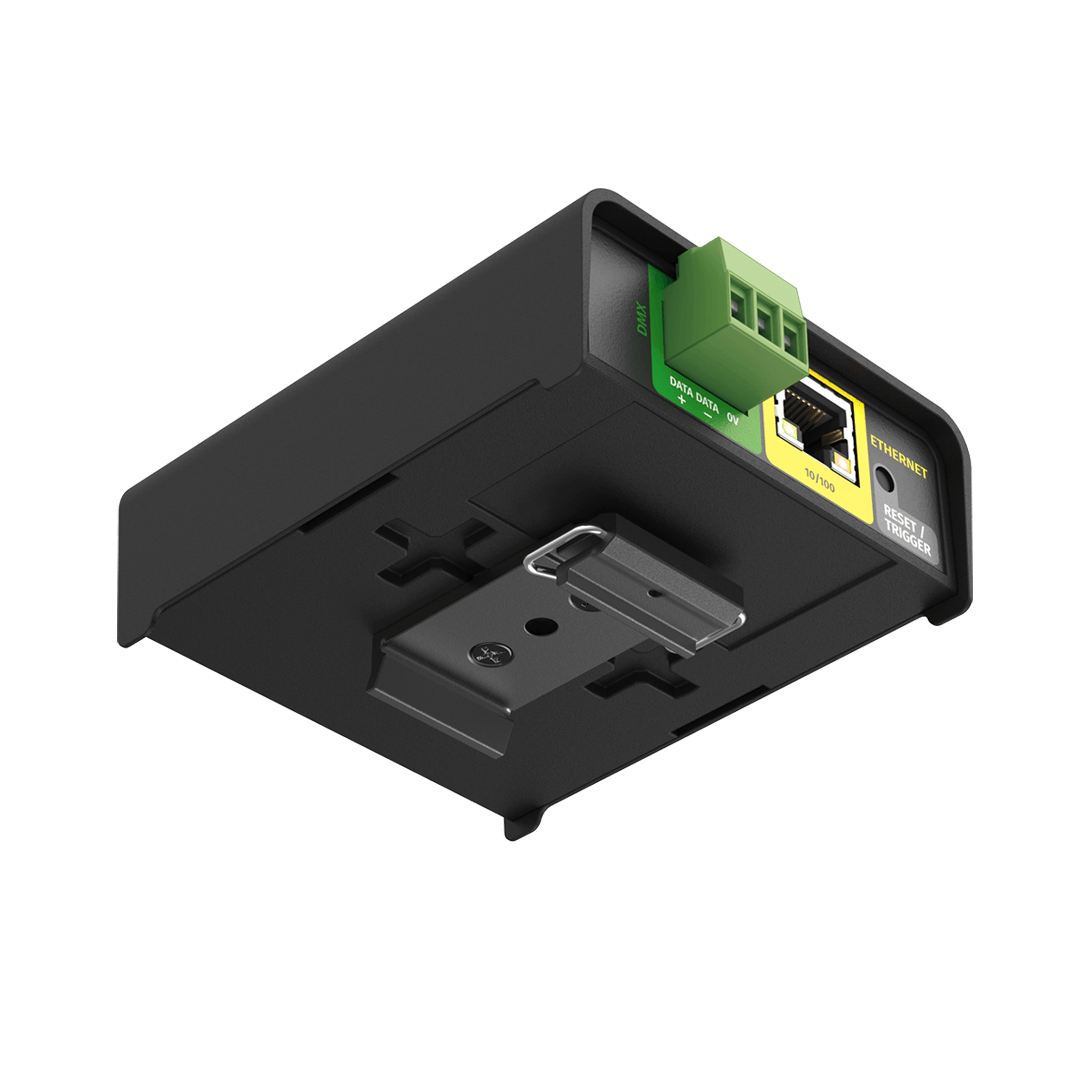

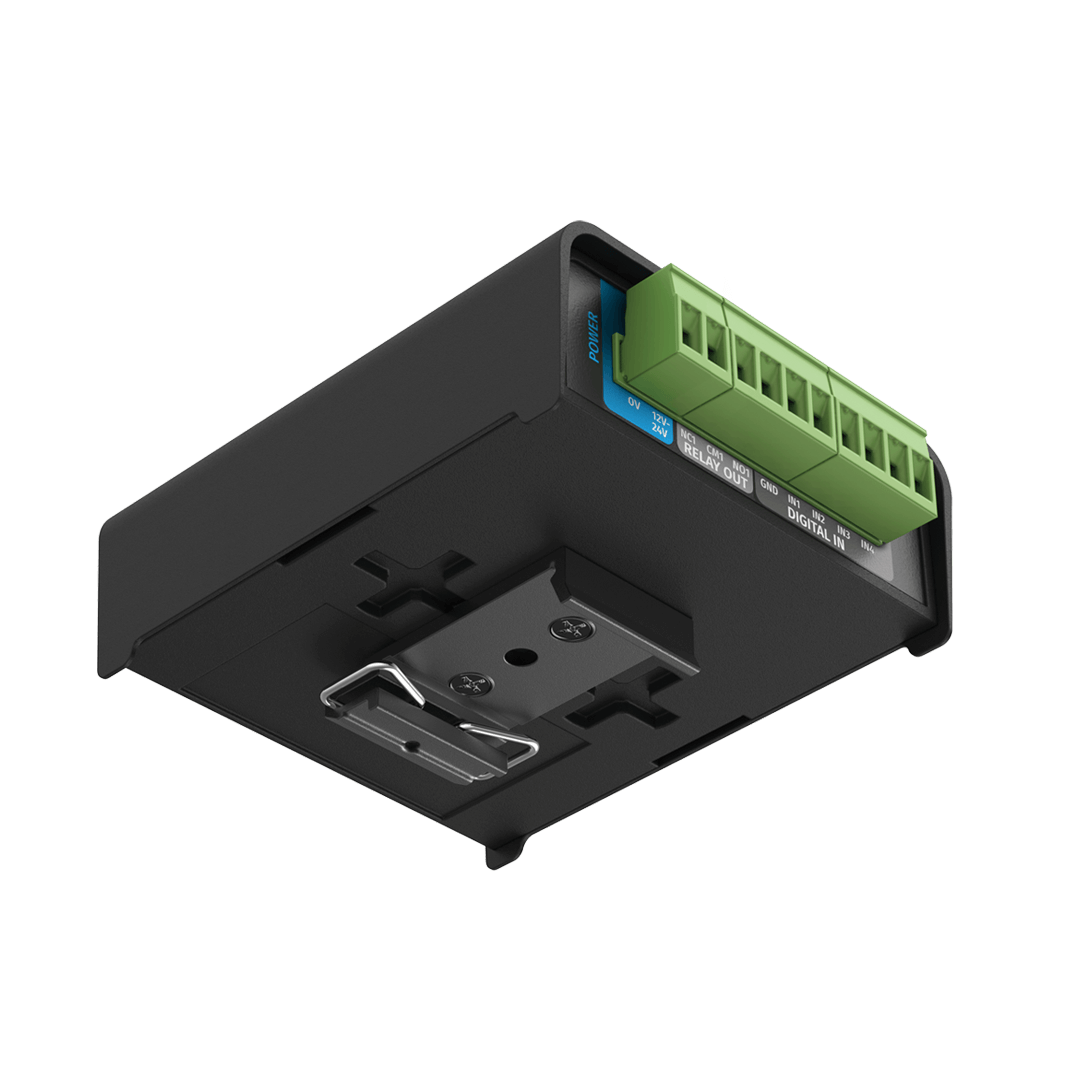

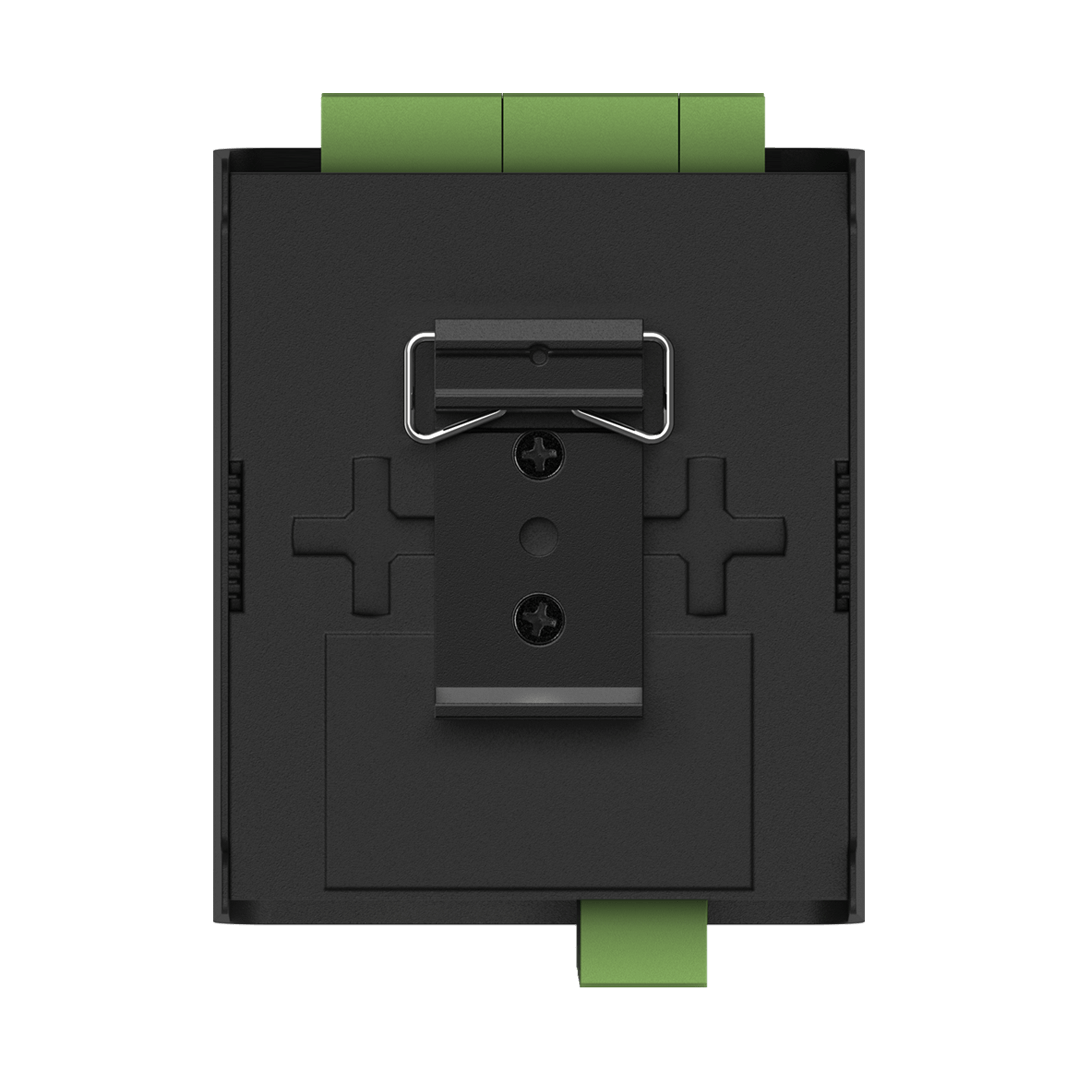

Mounting Surface & TS35 DIN rail mountable (clips & screws included)
IP rating IP20
Environmental operating temperature 0°C to 50°C / 32°F to 122°F
Environmental operating humidity 0 to 95% (non-condensing)
Cooling method Convection
Body material ABS plastic
Unit dimensions 100.5mm x 72.25mm x 34mm
Unit weight 0.83kg / 0.18lbs
Shipping dimensions 160mm x 140mm x 40mm
Shipping weight 0.16kg / 0.35lbs
Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Warranty 3-year return to base manufacturer warranty


DMX universe playback 1U (512 channels of USITT DMX512-A)
Max DMX refresh rate (FPS) 40
Max playlist count 4
Max cue track per playlist 1
Max Cues (including Static, Dynamic and Effect) 4
Max Triggers 8
Max Events 4

Let’s get started!

A compact DMX recorder/show controller can form such an integral part of almost any lighting setup.

Join Jasmine from ENTTEC as she takes you through the differences between the S-PLAY NANO and S-PLAY MINI: two devices that may look rather similar on the surface.

Discover which one is best suited to your requirements – and you’ll soon be up and running in no time!
