The ultimate Power Over Ethernet DMX interface

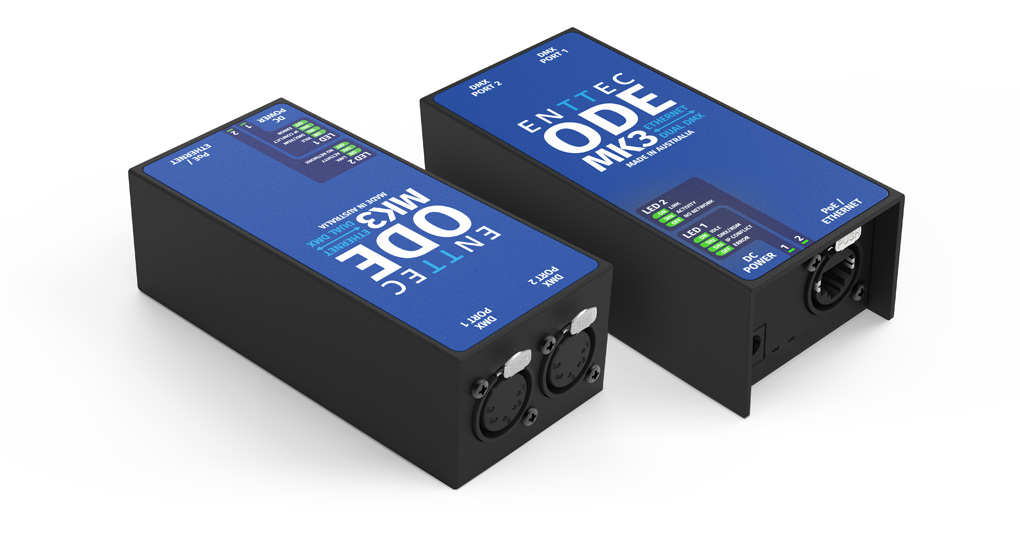

The ODE MK3 is a robust, reliable, installation-grade, Ethernet to DMX converter engineered to connect DMX fixtures to your Ethernet network infrastructure. Now you can expand your lighting project to the next level.
With 2 Universes of bi-directional eDMX to DMX conversion and Art-RDM support, the ODE MK3 is compatible with a wide range of devices and allows for fast deployment of your DMX system. Simply connect, configure and take control!
Additionally, this Ethernet to DMX/RDM gateway is packed with installer-friendly features for a speedy installation and configuration, all managed through a web UI - and contained in a compact, portable form factor.
Image 1 of 6
Easy web page configuration
Configuration is managed through the localhost web interface to simplify commissioning and updates. Consequently, the ODE MK3 to be configured from any computer on your network.
Flexible power options
Power the ODE MK3 using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input.
Sync mode
All ENTTEC Ethernet hardware accepts ArtSync to fully synchronise Art-Net data across your installation when receiving Art-Net from the same source to protect against content tearing and ensure a professional looking output across your rig.
Time-saving and installer-friendly

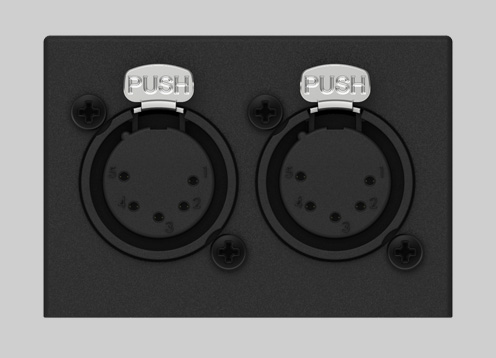

This Ethernet to DMX converter is packed with installer-friendly features including industry standard 5-pin XLR ports to simplify wiring.
Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the localhost web interface to troubleshoot your installation. Upon receiving power, the device is ready to for action within seconds.
Monitor activity

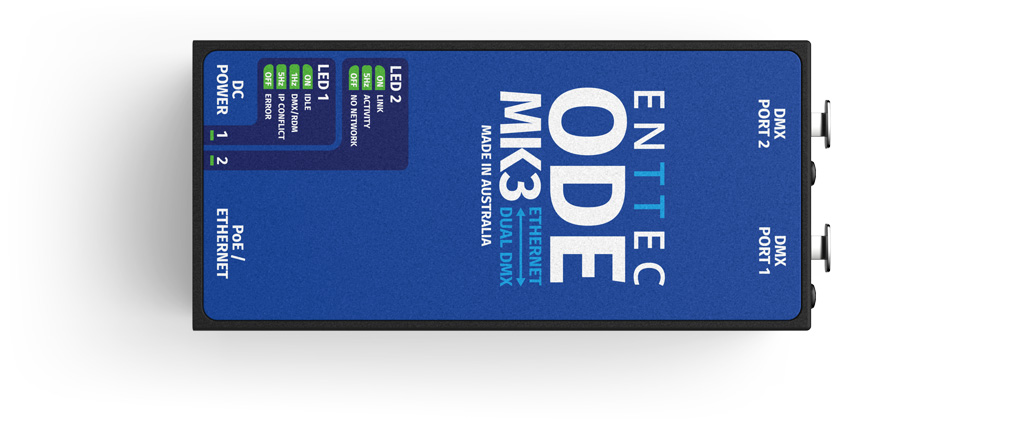

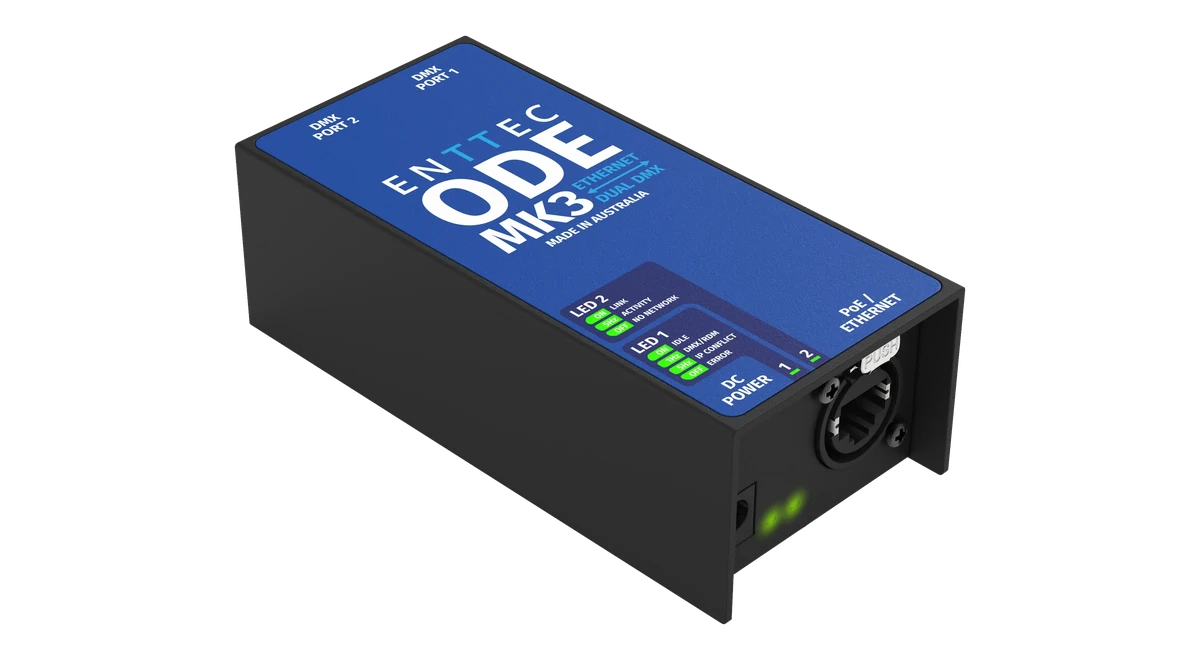

Two status LEDs sit beside the DC power socket, and the key printed on the lid tells you what each one means. LED 1 shows idle, DMX/RDM activity, IP conflicts and errors. LED 2 shows the network link and activity. Solid, flashing or off, you can read the device's state at a glance.
Protocols
The ODE Mk3’s primary functionality is to convert between Ethernet-DMX protocols and USITT DMX512-A (DMX). The following conversions are available with the ODE Mk3: Art-Net – DMX (with/without RDM. ANSI E1.20 RDM supported) DMX – Art-Net (Broadcast or Unicast) sACN – DMX DMX – sACN (Multicast or Unicast) ESP – DMX DMX – ESP (Broadcast or Unicast)
3-year warranty
ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 3-year return-to-base manufacturer warranty on this product.
International compliance
The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.
This ENTTEC product also conforms to the following international compliance and safety standards:
The ODE MK3’s LED status system lets you know exactly what your device is doing
The ENTTEC ODE MK3's status system is designed to offer real-time feedback on its operational state through LED indicators. These indicators provide essential information about the device's connectivity, activity, and DMX status, helping users troubleshoot and monitor the system.
Specifications
| Connectors and network | |
|---|---|
| Connectors | 1 x EtherCon Port (RJ45), 2 x Bi-directional DMX (Female XLR5), 1 x Power Input (DC Jack) |
| Network Speed | 10/100 Base-T |
| Network Configuration | DHCP/Static (default 192.168.0.10) |
| IGMP Version | IGMPv2 |
| LED indicators | Status indicator, Network Link / Activity indicators |
| Output and control | |
| eDMX Protocols | Art-Net / Art-RDM / sACN / ESP |
| Protocols | USITT DMX512-A / ANSI E1.20 RDM |
| DMX & RDM Timings | Break time, 300ms / Mark after Break (MAB), 15ms |
| Max. Channels | 2 Universes (1024ch) |
| Max. Refresh Rate | 44FPS |
| Art-Net Merging | 2 Sources |
| Configuration Software | Web Browser |
| Firmware Updates | Web Browser |
| Power and thermal | |
| Input voltage | 12-24V DC |
| Power over Ethernet | IEEE 802.3af |
| Current draw | 57-187mA |
| Max. power draw | 2.3W |
| Environmental operating temperature | 0°-50°C / 32°-122°F |
| Environmental operating humidity | 5- 95% (non-condensing) |
| Physical and supply | |
| IP rating | IP20 |
| Body material | ABS Plastic |
| Unit dimensions | 129mm x 58mm x 40mm |
| Unit weight | 0.10kg / 0.22lbs |
| Shipping dimensions | 235mm x 159mm x 69mm |
| Shipping weight | 0.45kg / 0.99lbs |
| Warranty | 3-year return-to-base manufacturer warranty |
Resources
Data sheet

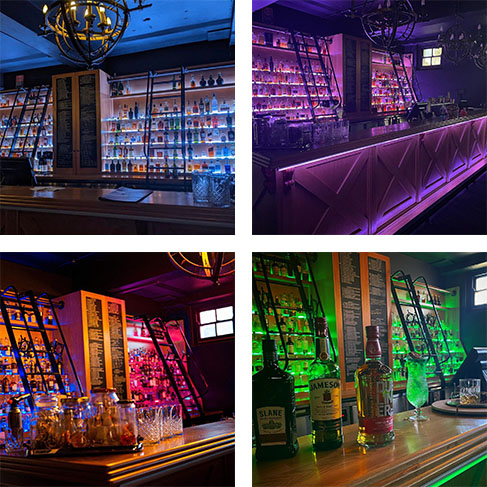

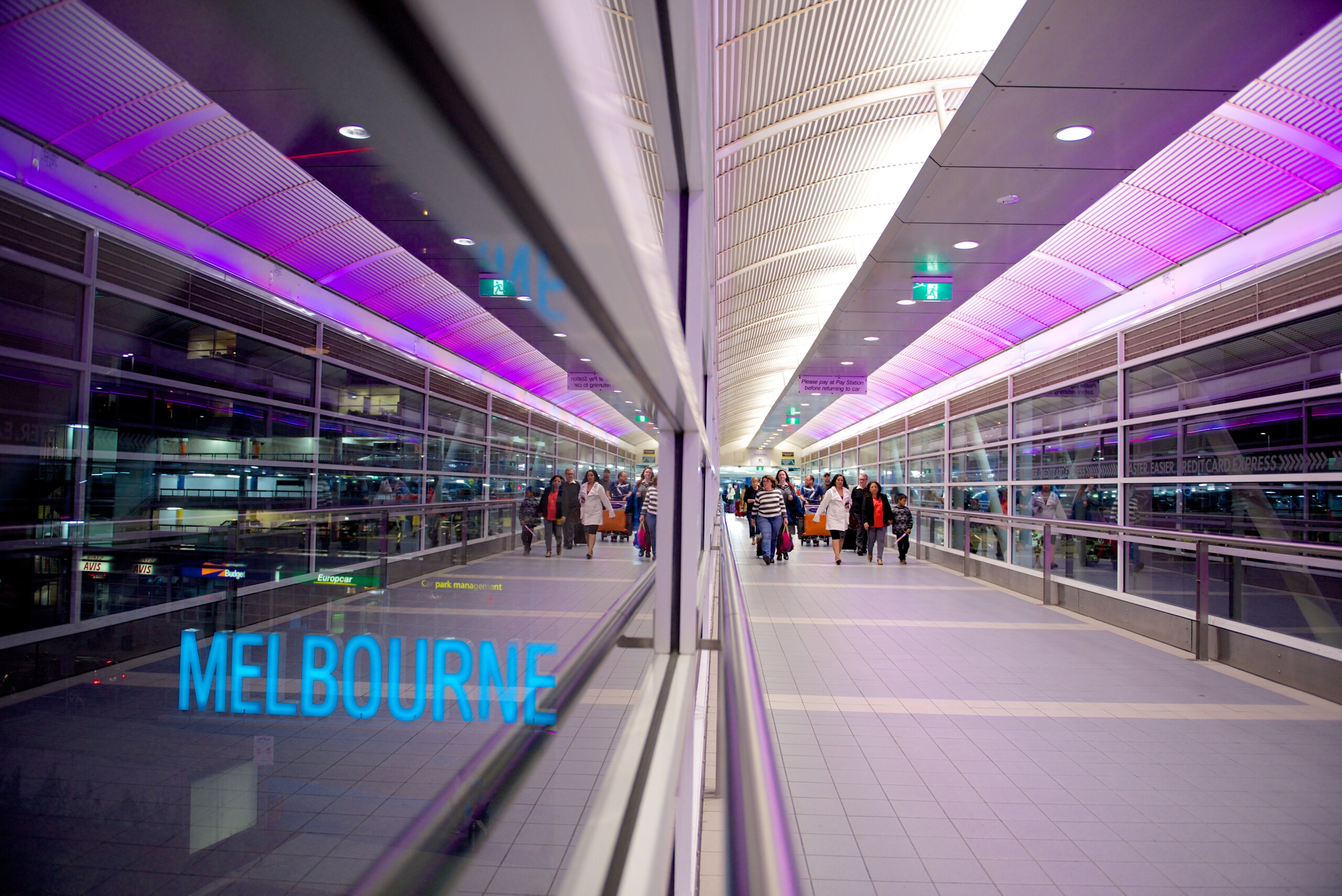

Projects Featuring the ODE MK3
