Supported LED protocols

The following table shows which LED protocols are currently supported by which ENTTEC pixel products.

You can reorder the list by product, and also use the search function to isolate particular protocols in order to discover which LED strips or dots will work with your current devices, or indeed the other way around.

Please note that protocol compatibility is often subject to ongoing change as we improve the abilities of our existing products, so be sure to check back here regularly as you may find that the capabilities of your favourite product have increased over time.

PROTOCOL

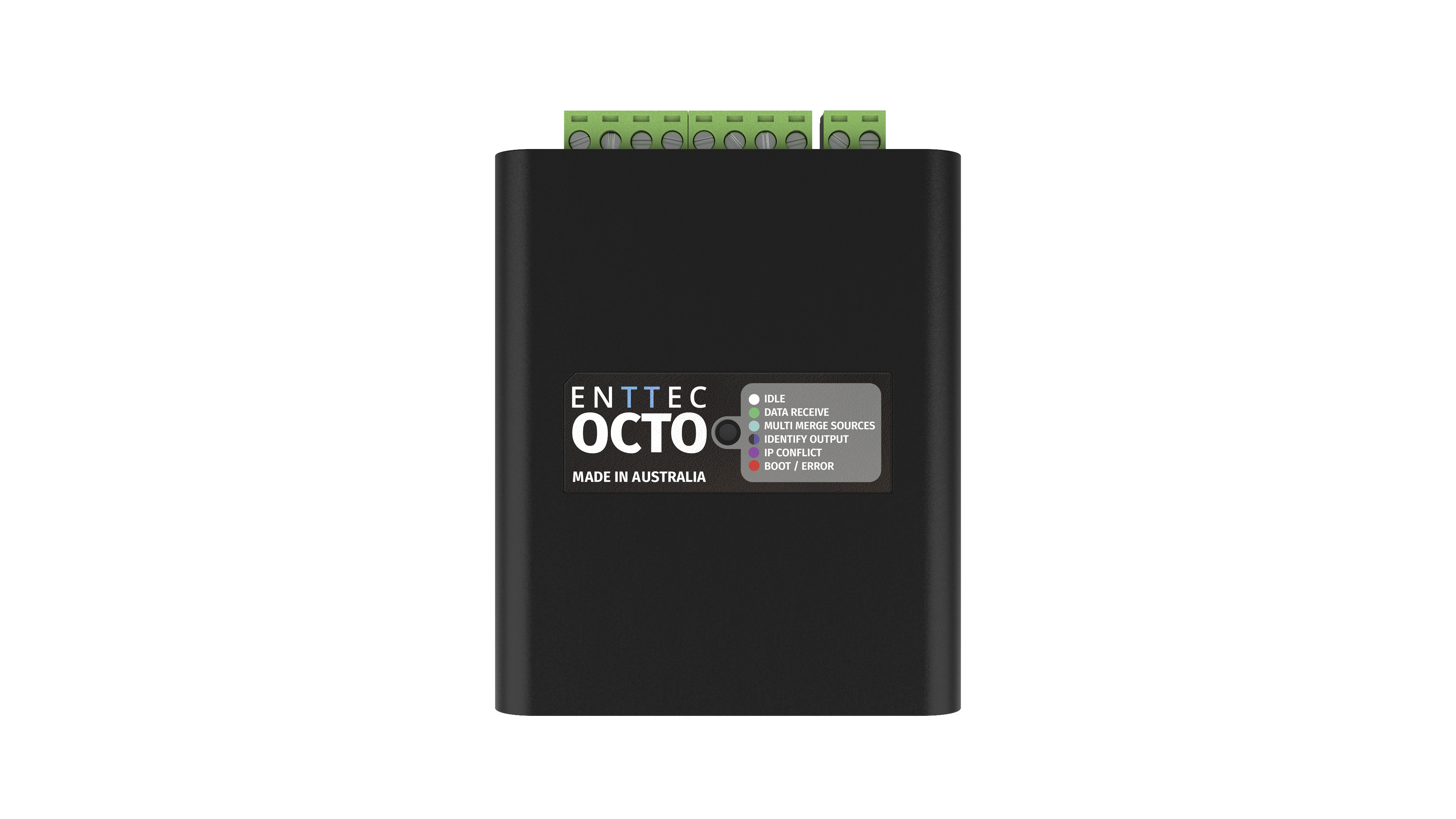

PIXEL OCTO


(v1.4)
PIXEL TRITON


(v1.5)
PIXELATOR


(909_Nov-19)

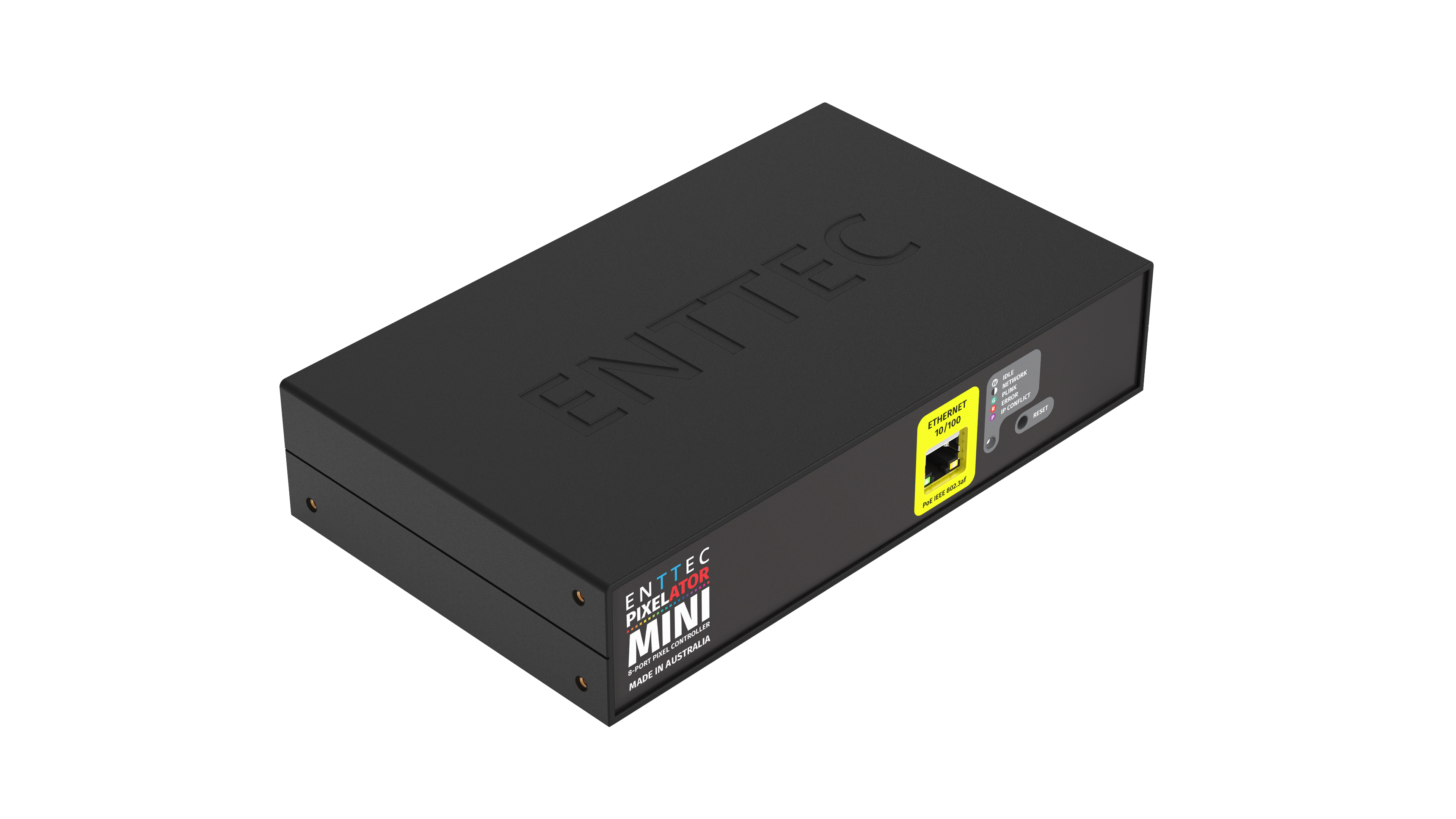

PIXELATOR MINI

(v1.11)
PIXELATOR
PX1-8D

(v1.11)
PIXEL PORT

(v1.2)
PIXIE DRIVER


(v1.15)
WS2811✔*✔*✔*
WS2812✔*✔*✔*
WS2812B
WS2813✔*✔*✔*
WS2815✔*✔*✔*✔*✔*
SK6812
TM1804
TM1812
TM1814
APA-102
APA-104
9PDOT (8bit)✔⁺
9PDOT (16bit)✔⁺
UCS2903✔*✔*✔*✔*
UCS2904✔*✔*✔*✔*
TLC5973-8bit✔⁺
TLC5973-16bit✔⁺
UCS8903-8bit✔⁺✔⁺✔⁺✔⁺
UCS8903-16bit✔⁺✔⁺✔⁺✔⁺
UCS8904-8bit✔⁺✔⁺✔⁺✔⁺
UCS8904-16bit✔⁺✔⁺✔⁺✔⁺
SPXL-8bit✔⁺✔⁺✔⁺✔⁺
SPXL-16bit✔⁺✔⁺✔⁺✔⁺

* IMPORTANT: If you wish to control WS2811, WS2812, WS2813, WS2815, UCS2903 or UCS2904 pixel strips and the option to do so is missing in the current firmware interface for your product, please select WS2812B instead for your LEDs to work properly.

⁺ IMPORTANT: UCS8903-8bit refresh rate is 50% of UCS8903-16bit; UCS8904-8bit refresh rate is 50% of UCS8904-16bit; SPXL-8bit refresh rate is 50% of SPXL-16bit; TLC5973-8bit refresh rate is 66% of TLC5973-16bit; 9PDOT-8bit refresh rate is 66% of 9PDOT-16bit

If you have any questions or confusion regarding protocols and product compatibility, please visit our support section.
