5V RGB 60-LEDs/m pixel strip

5V individually-controllable 60 pixel/m RGB pixel strip with black or white PCB. 5m roll.

    SKU: 8PXA60-RGB-5V

    5V RGB LED pixel strip for professional applications.



    • Quality Australian design
    • RGB 24-bit True Colour LED pixel strip
    • Premium flexible 3oz thicker copper PCB
    • Suitable for architectural + entertainment applications
    • 5V DC input supply voltage
    • 60 LED/metre density
    • Black or white PCB options

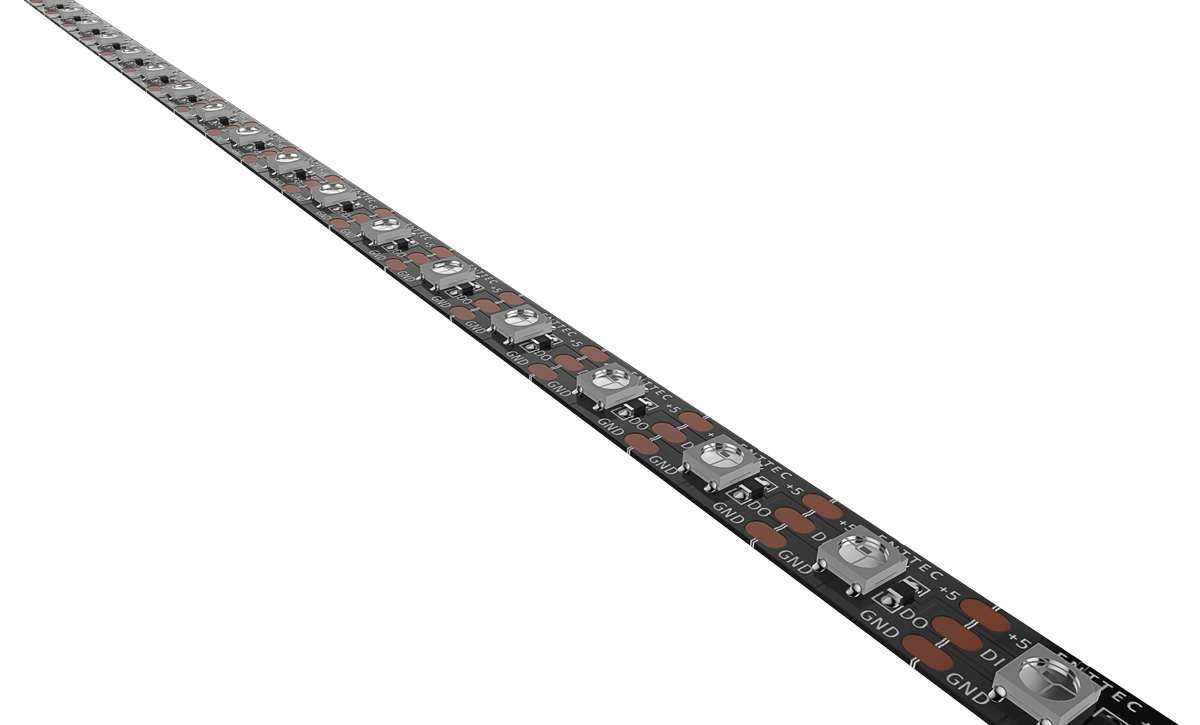

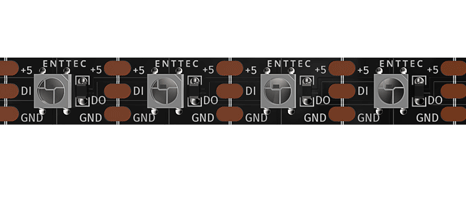

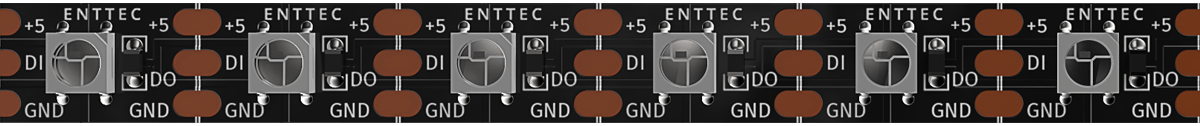

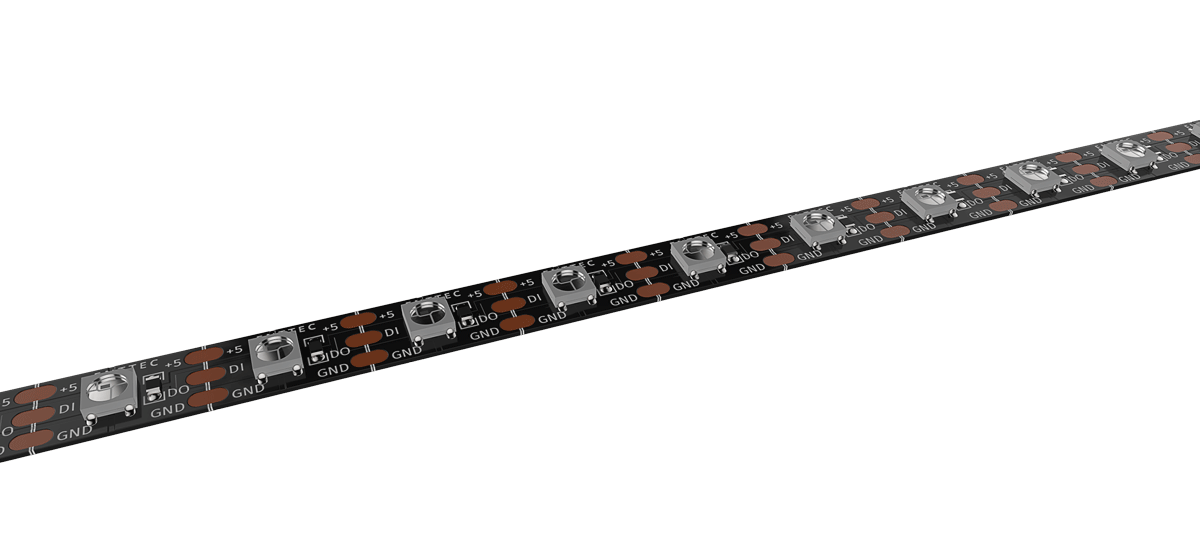

    ENTTEC's 8PXA60-RGB-5V series are 5V, 60-LED-per-metre, addressable RGB LED pixel strips designed for professional architectural and entertainment purposes, achieving soft pastels or saturated colours on a large scale.

    Cut and join into any conceivable shape.

    With a choice of stealth black or traditional white PCB finishes, these premium LED pixel strips are perfectly suited for a range of different applications. Their high scan rate and True Colour palette ensure that graphics and animations are played back smoothly and consistently.

    At ENTTEC, manufacturing quality and attention to detail is paramount. We always use a thicker 3oz copper PCB to offer more durability, better heat dissipation and reduced voltage drop when compared to other LED strips available on the market. This, in combination with the 5V operating voltage, allows up to a 6m run with a single power injection.

    • 60 RGB LEDs per metre

      ENTTEC LED pixel strip boasts 60 colour-calibrated RGB LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.

    • Black or white

      A black printed circuit board is a great way to minimise external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.

    • Bright + super-efficient

      With a maximum power consumption of only 10.5 watts per metre, and a lumen capacity of 259.4 lumens per metre, this 5V pixel strip provides a bright and efficient package.

    • Millions of colours

      Each pixel can achieve a 24-bit, True Colour display. That’s a whopping 16,777,216 possible colours for each LED chip!

    • Australian designed for top performance

      Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

    • Extend as you please

      Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.

    • Is this the right LED strip for your project?

      With such a variety of LED strips available, it can be easy to get confused as to which strip might be best suited for your requirements.

      Check out this video to learn about all the main considerations you need to take into account, such as CV strip v pixel strip, voltage, protocols, RGB v RGBW, pixels per metre, PCB colour, and more.

      If you’re still unsure after viewing, don’t panic – we’re always here to help you at ENTTEC. Get in touch with us and we’ll point you in the right direction!

    Technical specifications

    Connectors 2 x 3-pin JST SM connectors (3A Max) Min. bend radius 30mm / 1.2”
    Input voltage 5V Spacing between cuttable sections 16.6mm / 0.66”
    Max. watts per metre 10.5 IP rating IP20
    Efficacy (lumens per watt) 24.7 Environmental operating temperature 0°C to 50°C / 32°F to 122°F
    DMX channels per pixel 3 Environmental operating humidity 5- 95% (non-condensing)
    Beam angle 120° Weight (5m roll) 0.18Kg / 0.40lbs
    Control protocol  SK6812 IC chips (compatible with WS2811 protocol) Dimensions (5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
    Backup data line No Shipping weight (5-roll carton) 0.80Kg / 1.76lbs
    Pixel mapping order RGB Shipping dimensions (5-roll carton) 260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
    PCB colour Black or white options Warranty 1-year return to base manufacturer warranty
    PCB width 10mm / 0.40” Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)

    DOCUMENTS (BLACK PCB)

    8PXA60 RGB-5V-B datasheet

    8PXA60 RGB-5V-B installation guide

    DOCUMENTS (WHITE PCB)

    8PXA60 RGB-5V-W datasheet

    8PXA60 RGB-5V-W installation guide
