24V CTA range

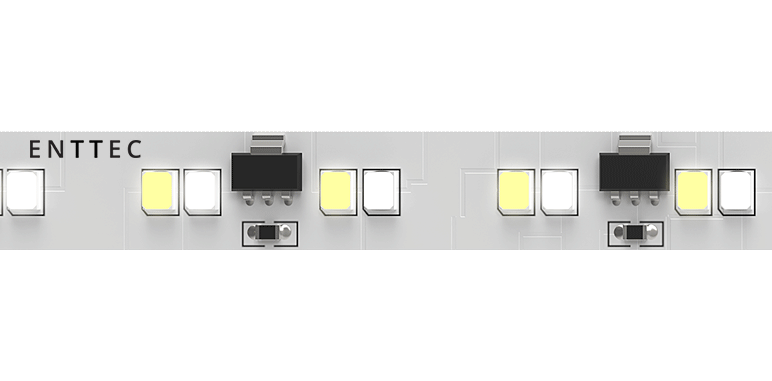

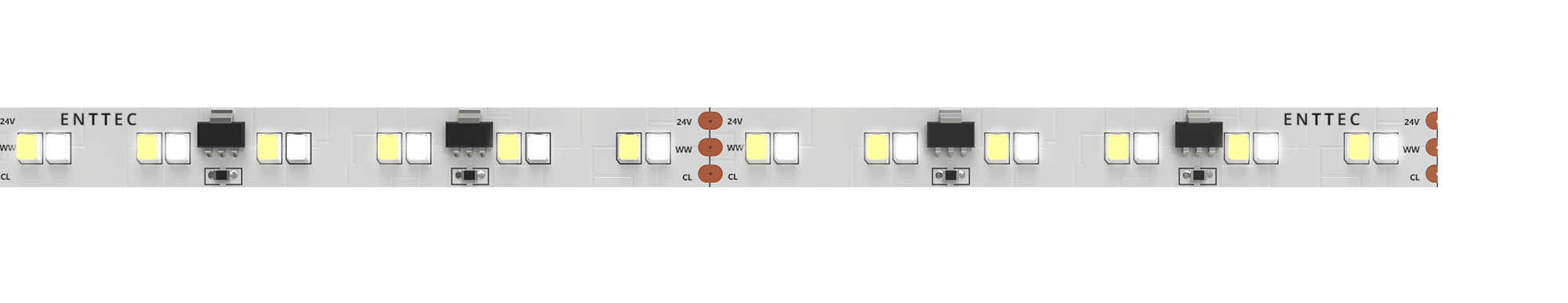

9CY is a 24V CTA LED Tape, which allows variations between 3000K to 5500K color temperature range.
CTA lumen capacity
You can drive this CTA tape at multiple color temperature ranges. The maximum at 3000K is 488 lumens per meter, and the maximum at 5500K is 570 lumens per meter.
Input current and wattage
Maximum input current rating is 0.49 A per meter, which equals 2.45 A for 5-meter length. 9CY consumes a maximum of 11.8W per meter, and has a maximum continuous length of 9.2 meters.
|DC Power||W/m||LED Quantity||Product Family||Product Code||Color||Lm/m||Input Current 1M||Input Current 5M||IP||Reel Length||Strip Width||Cuttable||Maximum Continuous Length|
|24V||9.6||120/m||9CY||9CY2||CTA||3000K - 5500K||420+420||0.4A||2A||20||10m||11mm||100mm||13m|
