12V RGB 60-LEDs/m long-range pixel strip

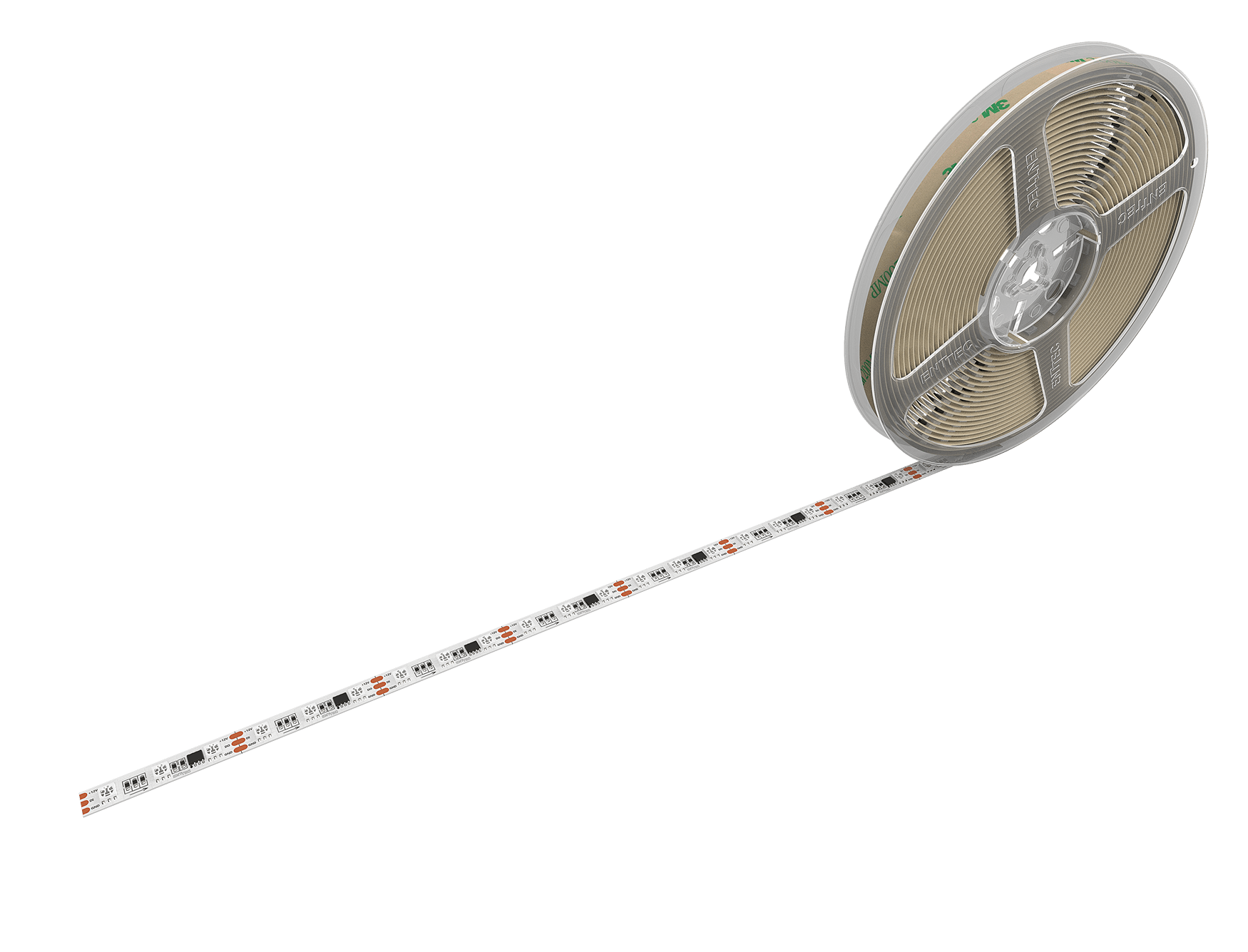

12V individually-controllable 60 pixel/m RGB pixel strip with black or white PCB for long-range applications. 5m roll.

    SKU: 8PXB60-RGB-12V

    12V RGB long-range LED pixel strip for professional applications.



    • Quality Australian design
    • RGB 24-bit True Colour LED pixel strip
    • Premium flexible 3oz thicker copper PCB
    • Suitable for architectural + entertainment applications
    • 12V DC input supply voltage
    • 60 LED/metre density
    • Black or white PCB options


    ENTTEC 's 8PXB60-RGB-12V series are 12V, 60-LED-per-metre, addressable RGB LED pixel strips designed for long-range professional architectural and entertainment installations, achieving soft pastels or saturated colours on a large scale.

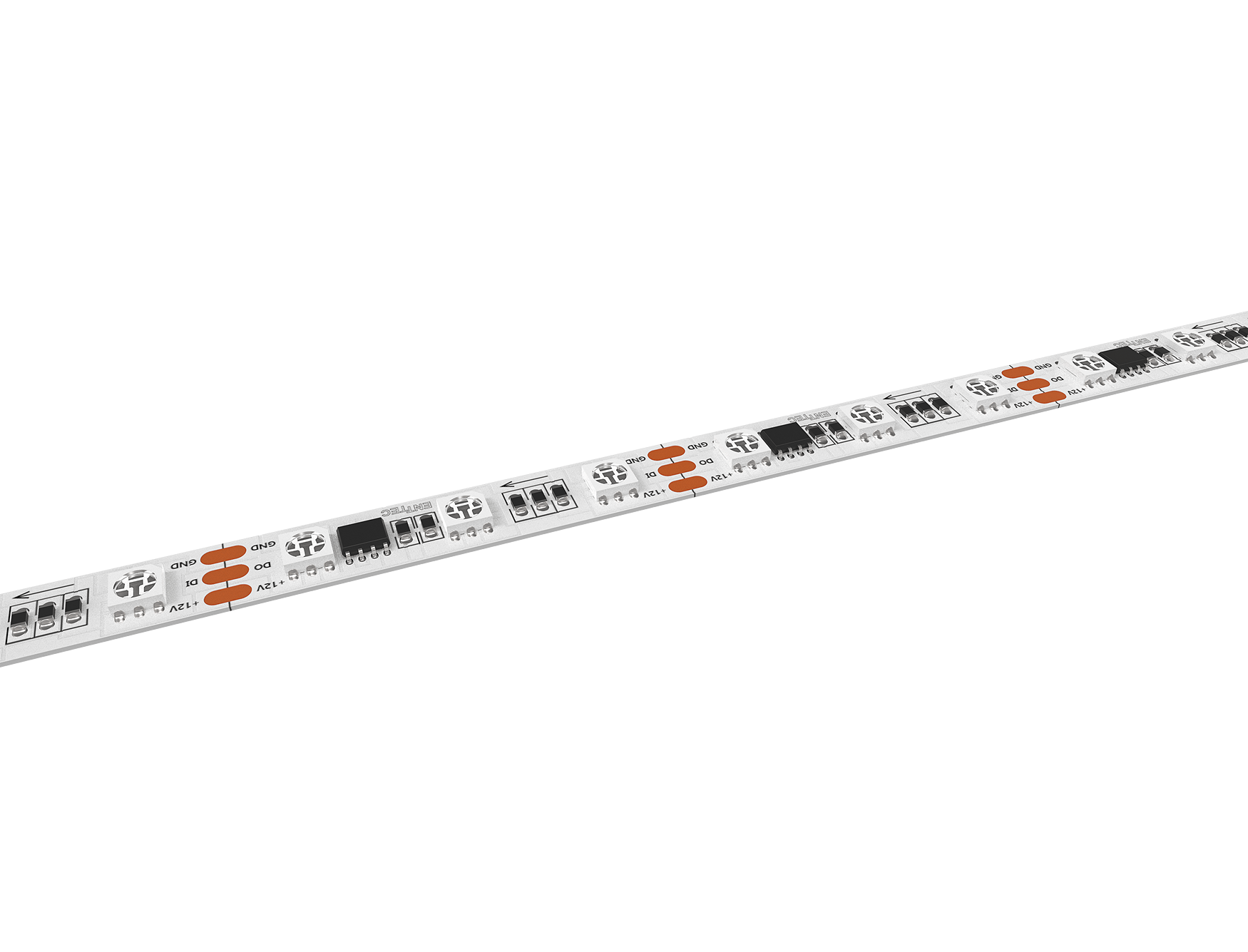

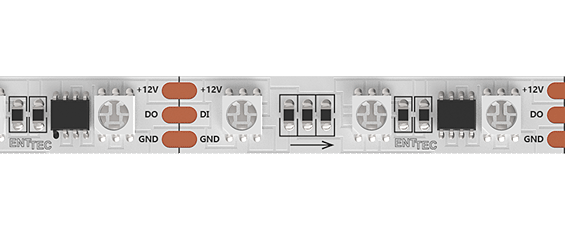

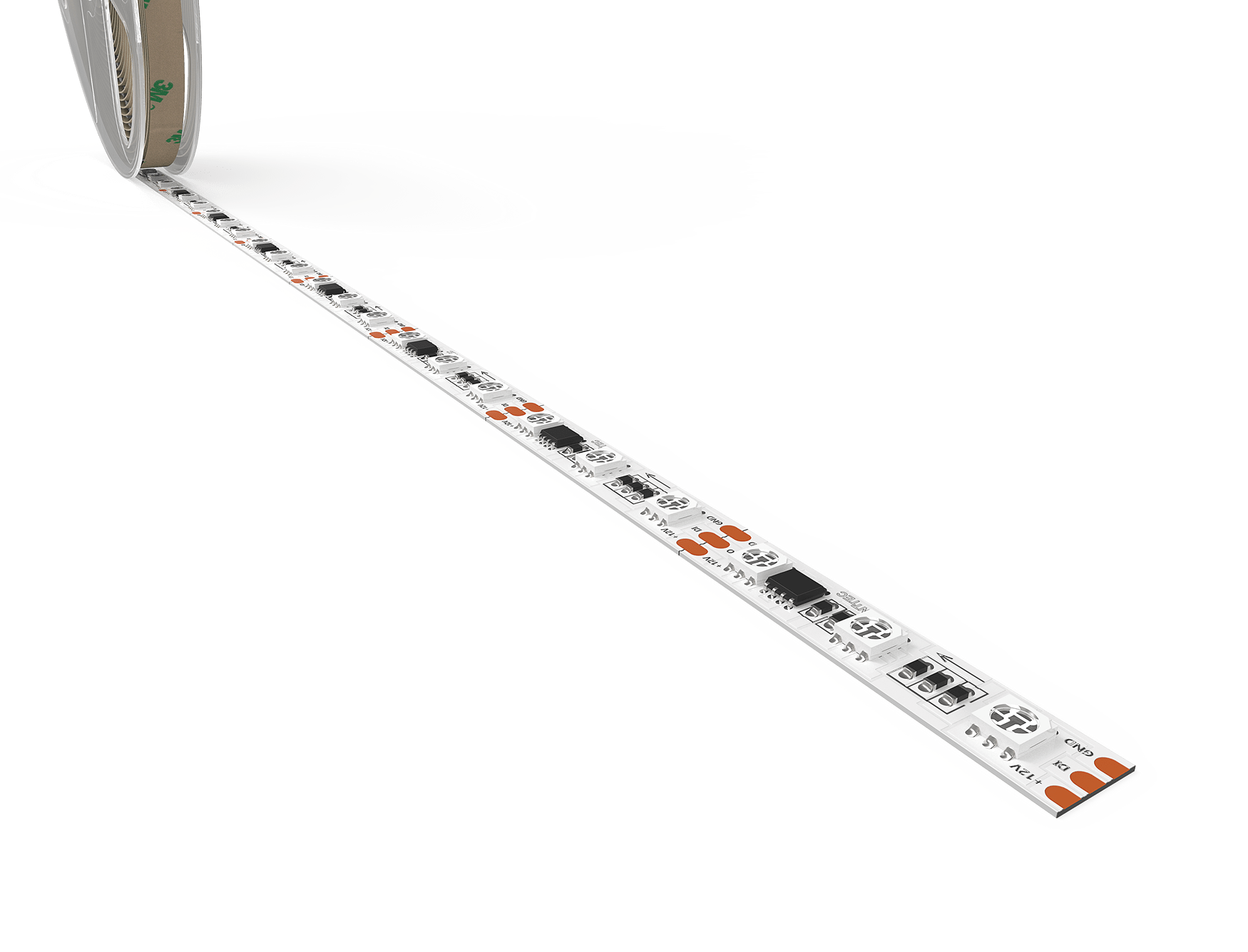

    Cut and join into any conceivable shape.

    Available with a black or white PCB, this premium LED pixel strip is perfectly suited for a variety of different applications - especially for situations where you want to run a stretch of LEDs over large distances. Its high scan rate and True Colour palette ensure that graphics and animations are played back smoothly and consistently.

    At ENTTEC, manufacturing quality and attention to detail is paramount. We always use a thicker 3oz copper PCB to offer more durability, better heat dissipation and reduced voltage drop when compared to other LED strips available on the market. This, in combination with the 12V operating voltage, allows up to a 10m run with a single power injection.

    • 60 RGB LEDs per metre

      ENTTEC LED pixel strip boasts 60 colour-calibrated RGB LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.

    • Extend as you please

      Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.

    • Bright + super-efficient

      With a maximum power consumption of only 7.2 watts per metre, and a lumen capacity of 188.2 lumens per metre, this 12V pixel strip provides a bright and efficient package.

    • Millions of colours

      Each pixel can achieve a 24-bit, True Colour display. That’s a whopping 16,777,216 possible colours for each LED chip.

    • Australian designed for top performance

      Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

    • Black or white

      A black printed circuit board is a great way to minimise external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.

    • Is this the right LED strip for your project?

      With such a variety of LED strips available, it can be easy to get confused as to which strip might be best suited for your requirements.

      Check out this video to learn about all the main considerations you need to take into account, such as CV strip v pixel strip, voltage, protocols, RGB v RGBW, pixels per metre, PCB colour, and more.

      If you’re still unsure after viewing, don’t panic – we’re always here to help you at ENTTEC. Get in touch with us and we’ll point you in the right direction!

    Technical specifications

    Connectors 2 x 3-pin JST SM connectors (3A Max) Min. bend radius 30mm / 1.2”
    Input voltage 12V Spacing between cuttable sections 50mm / 1.98”
    Max. watts per metre 10.08 IP rating IP20
    Efficacy (lumens per watt) 34.66 Environmental operating temperature 0°C to 50°C / 32°F to 122°F
    DMX channels per pixel 3 Environmental operating humidity 5- 95% (non-condensing)
    Beam angle 120° Weight (5m roll) 0.18Kg / 0.40lbs
    Control protocol WS2811 Dimensions (5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
    Backup data line No Shipping weight (5-roll carton) 0.80Kg / 1.76lbs
    Pixel mapping order RGB Shipping dimensions (5-roll carton) 260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
    PCB colour Black or white options Warranty1-year return to base manufacturer warranty
    PCB width 10mm / 0.40” Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)

    DOCUMENTS (BLACK PCB)

    8PXB60 RGB-12V-B datasheet

    8PXB60 RGB-12V-B installation guide

    DOCUMENTS (WHITE PCB)

    8PXB60 RGB-12V-W datasheet

    8PXB60 RGB-12V-W installation guide

    • Precision designed by ENTTEC in Australia.
    • Choose us for your complete light solutions needs.
    • Customer support is our priority.

    Check out these case studies to see how ENTTEC LED pixel strips can help you create visual magic!

    Check out these case studies to see how ENTTEC LED pixel strips can help you create visual magic!

    Display home LED pod ceilingDisplay home LED pod ceilingImmersive LED gymImmersive LED gymFull Production illuminate the rainforest with ENTTEC pixel controlFull Production illuminate the rainforest with ENTTEC pixel control

    Get creative by combining your LED strips with these exciting ENTTEC products

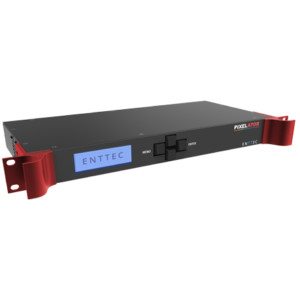

    ELM (ENTTEC LED MAPPER)ELM (ENTTEC LED MAPPER)S-PLAY SP1-1S-PLAY SP1-1PIXELATOR MINIPIXELATOR MINI
