Pixel Link system

The smart way to connect your pixels

ENTTEC’s PLink protocol allows pixel data to travel on standard Cat 6 cables so you can extend your pixel tape and dots to be up to 300m away from the Pixelator or Pixie Driver with no need for special cables or connectors. Simply BYO power supply and inject using the Plink Injector.


PLink Injector

The PLink Injector converts PLink data from your Pixelator or Pixelator Mini, to allow you to easily control pixel tape or pixel dots from long distances.

Available for 5V, 12V or 24V systems, with power re-injected from an external source.

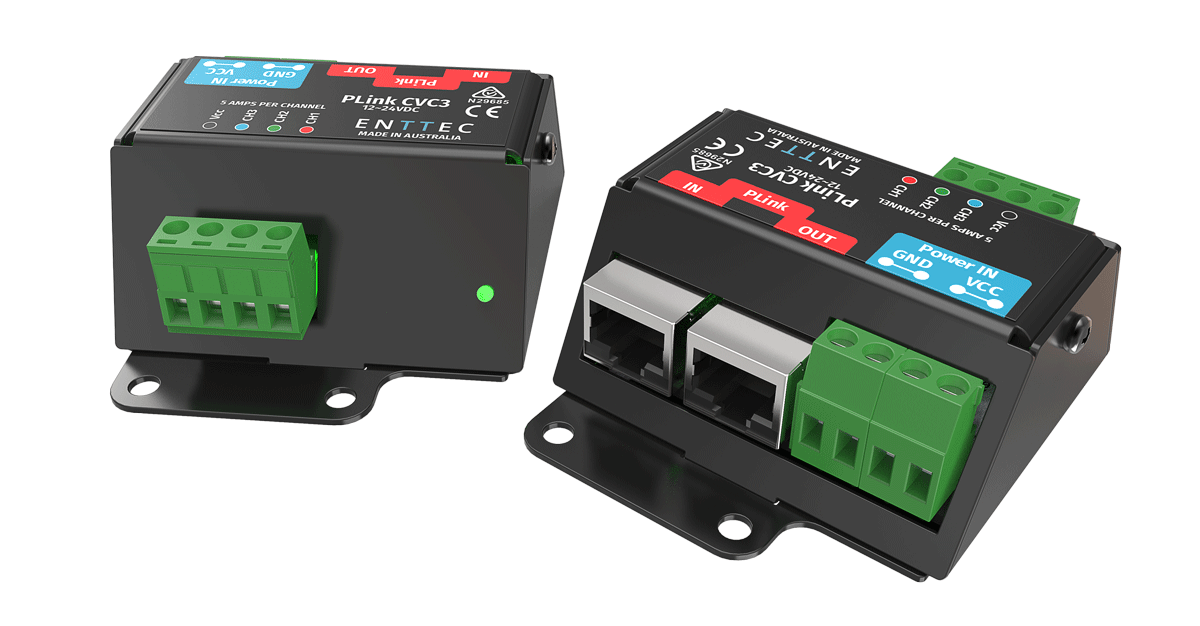

Control your normal RGB tape within the same setup as your pixel tape by using our CVC3.

It provides the ability to drive single-color or RGB LED tape (such as 9VL4) using PLink data. Each unit takes up 3 channels and passes on the remaining channels, allowing various units to be chained together with the same PLink data.

12V or 24V power is re-injected from an external power source. Please refer to application diagram (in ‘Documents’ below) for more information.

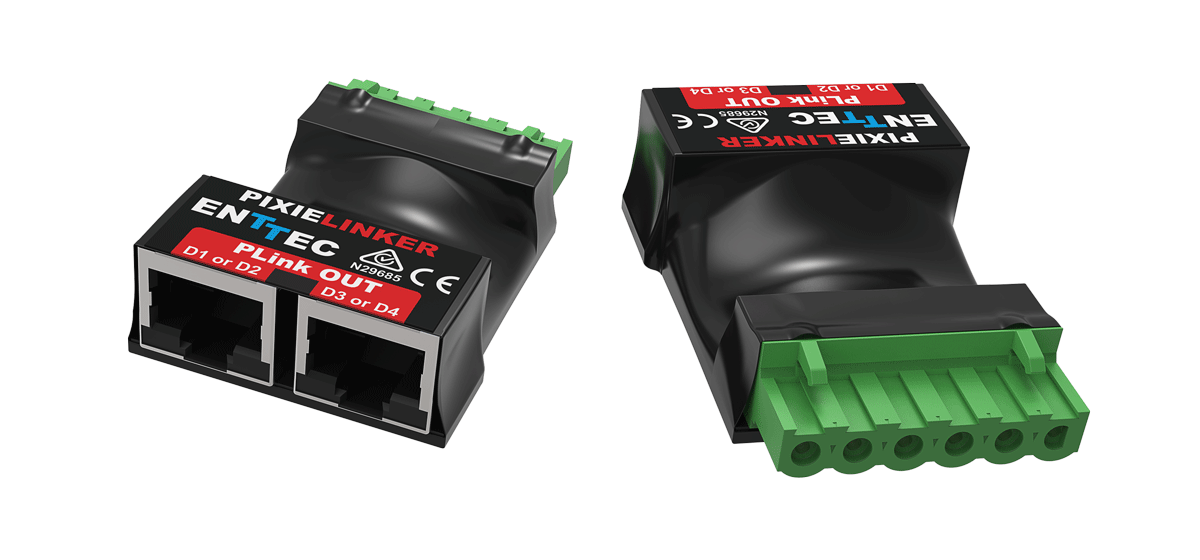

Pixie Linker

The essential link between your 5V Pixie Driver and your system, allowing you to send PLink data over standard Cat 6 cabling.
