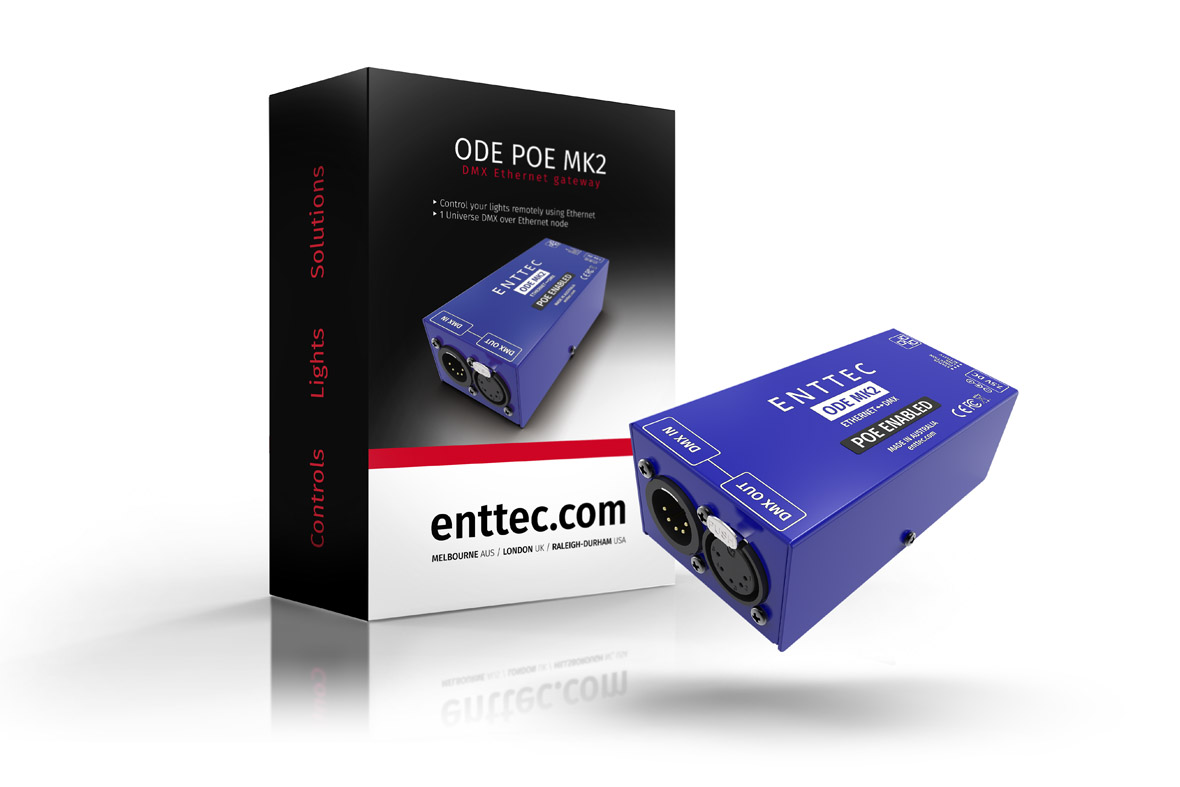

ODE POE MK2

SKU: 70406
More powerful than ever

 The new ODE POE MK2 supports newer protocols, and offers greater options than ever before. Simple and easy to use, thanks to the built in web interface. Ready to connect and control your lights remotely.

Supports power over Ethernet. POE router or injector required, unless you add the optional 7V power supply.

 Features

Power over Ethernet

Supports IEEE 802.3af to provide Power over Ethernet. A POE Injector or router is required to provide power over Ethernet.

Easy web page configuration

Web-based configuration. Use your favorite browser, and click a few buttons and you are done.

Multiple protocols support

Supports Art-Net 1/2/3, Streaming ACN sACN, and ESP. Use whichever you prefer, simply change the protocol using the web configuration.

Ready to connect

ODE Mk2 is factory set to use DHCP IP addressing. Simply connect to your existing router, and any supported software will find it.

Flexible options

Supports either LTP or HTP Merging (upto 2 sources). Either enable or disable merging, to suit your needs.

RDM over Art-Net

Supports RDM Over Art-Net (controller). When enabled, all RDM fixtures connected to the ODE, can be configured using any RDM over Art-net software.

Input or Output

Choose from Input mode (receives DMX, and sends over Ethernet), or Output mode (sends DMX). Input mode supports options for broadcast or unicast.

Box Contents

Each ODE POE Mk2 (sku 70406) comes with a 2m CAT5 ethernet cable, and a user manual. (power adapter is not included)

Recommended App: D-Pro

  • D-PRO 2U is a software based lighting controller which plays well with a host of different professional level hardware devices from ENTTEC.
  • It has plenty of advanced features for the most demanding lighting professional applications
  • includes D-PRO Player, a touch screen firendly interface to easily control your cues.
  • An OSC controller (such as TouchOSC) can be used to remotely control D-Pro.
  • Windows and Mac OSX compatible

Recommended App: ELM

  • ELM : ENTTEC LED MAPPER provides total control over your LED system, regardless of shape and size.
  • Design your layout with vector-based objects for maximum precision and flexibility.
  • Load the media of your choice and begin playback as needed
  • Supports Spout and NDI
  • Supports RGB, RGBW, RGBA, RGBAW/RGBWA and White fixtures
