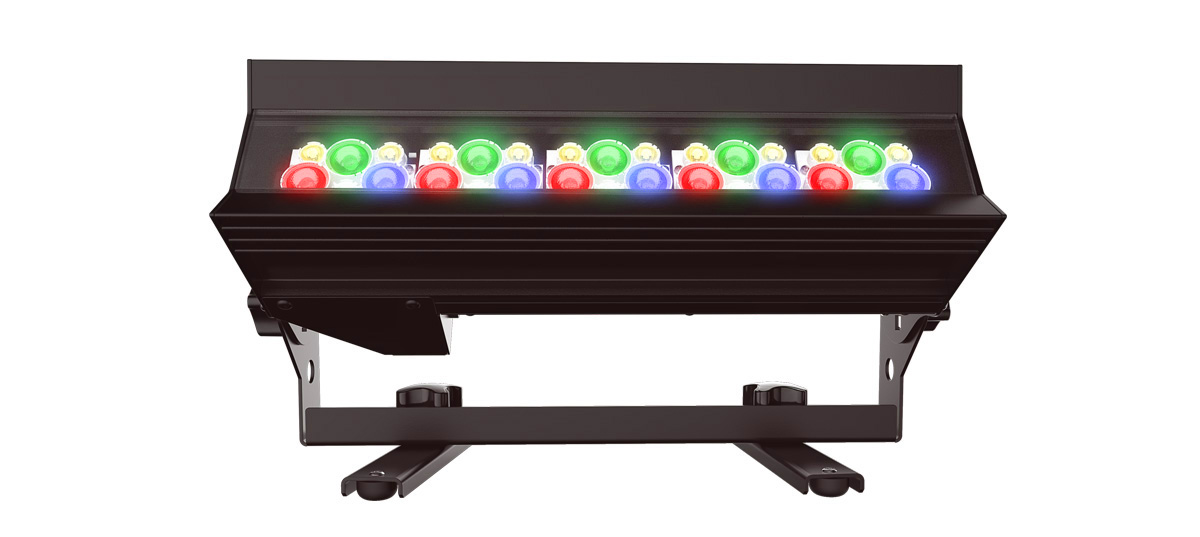

ET3-D Indoor LED Bar

The High Power LED Bar

Designed to be installed easily in any indoor scenario, the bright and powerful ET3-D is a true industry workhorse combining reliability and functionality within a robust convection cooled housing. With a vibrant RGBWA LED output and a choice of 25°, 40° or 60° beam angle, the ET3-D is well suited to a wide range of applications. This LED Bar is also available in either 300mm, 600mm and 1200mm configurations.
As a great additional feature, the ET3-D product range allows for both 8 and 16-bit DMX control of each LED colour allowing a wide array of both pastel and saturated colours alongside the ability to accurately replicate cool and natural whites. Furthermore, RDM integration allows for remote monitoring of temperature sensors and addressing.
By using the ET3-D’s inbuilt menu, DMX snapshots can be recorded to quickly save colour presets. Lastly, the internal memory allows up to 64 user-definable colour presets to be stored as well as 50 default factory presets. If you require an IP rated solution then look no further than the ET3-R.

High Power LED Bar

Features

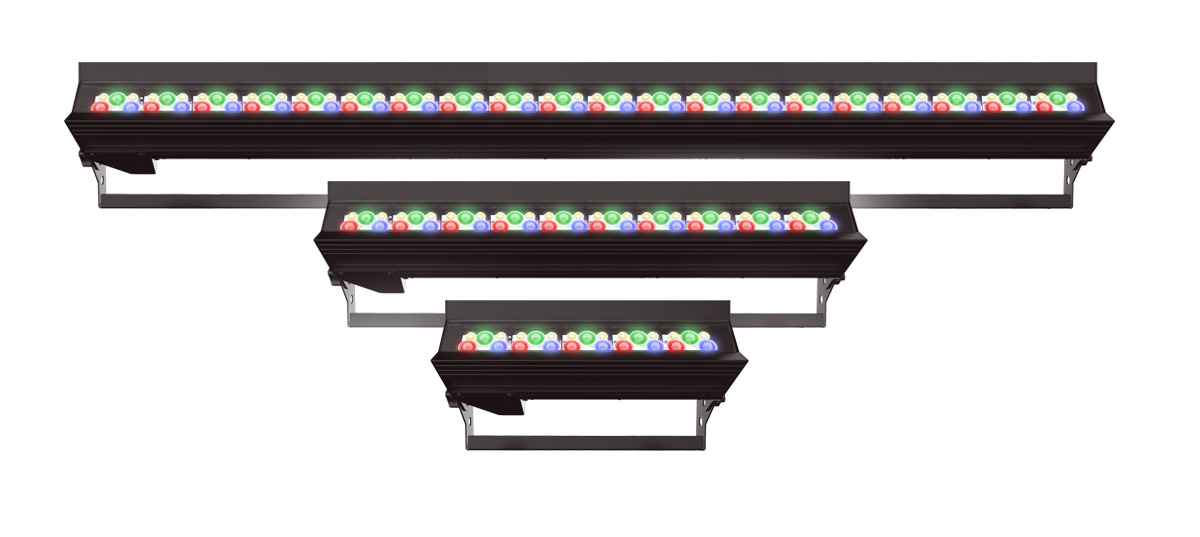

Available in 3 sizes

The ET3-D is available in 300mm, 600mm or 1200mm lengths.

Beam angle options

Choose between 25°, 40° and 60° beam angles.

Control and monitor

Easily control with full DMX-512 support using any DMX source. Monitor the temperature sensors, and configure the rest using RDM, thanks to E1.20 support.

Multiple personalities

Allows a selection of 6 possible DMX personalities. From 8-bit, 5 DMX channel modes to 16-bit, 12 DMX channel mode, each personality allows for the individual control of the unit’s finer features.

Smart dimming

Choose from 16-bit or 8-bit LED dimming. Simply change the DMX personality and get a greater control on the dimming. Also available is a strobe mode with controllable frequency from DMX.

Best color output

The ET3-D has been laboratory-calibrated to closely follow the black body locus curve. With 8-bits resolution allowing the light to travel from true warm to cool whites (1800K to 12000K) keeping a high CRI for natural colours.

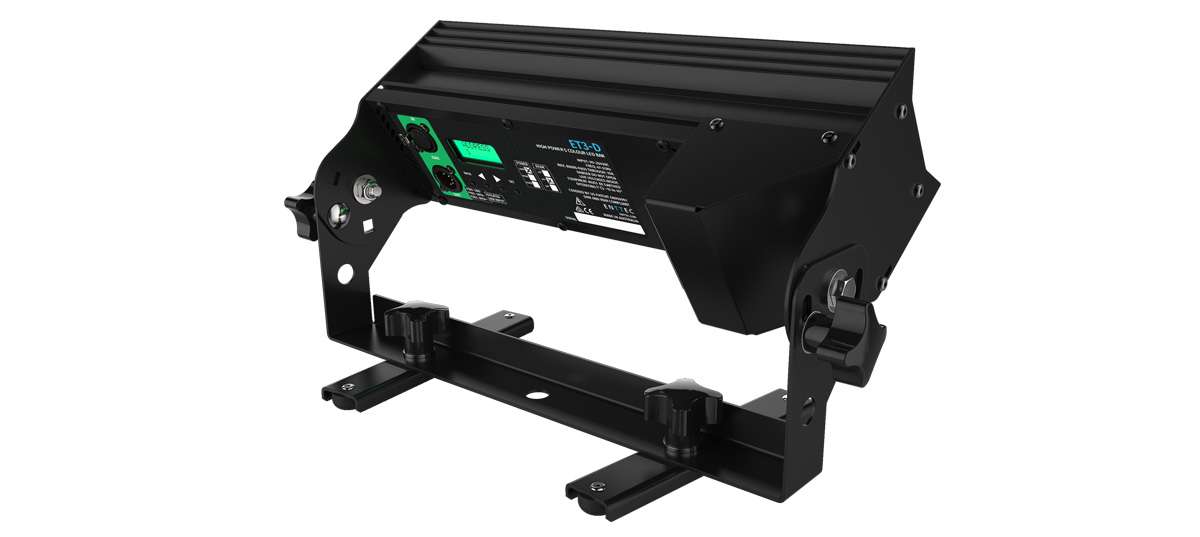

Built in control panel

Easily scroll through the settings: set DMX address or record and recall a snapshot or preset. All with the help of a LCD screen and buttons at the back of the unit.

Snap to a preset

Easily take a snapshot, with support for up to 64 fully user-recordable slots, in addition to 50 presets. The presets are pre-loaded with stand-alone colors to help you get started.
