9CH high output LED tape (10m)

Great for uniformed designs or injecting some creative flair to a project.

SKU: 9CH1-10 / 9CH2-10 / 9CH3-10

Dynamic white options and robust performance

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. 9CH tapes provide high output and come in different colour temperatures so you can choose the white you require.

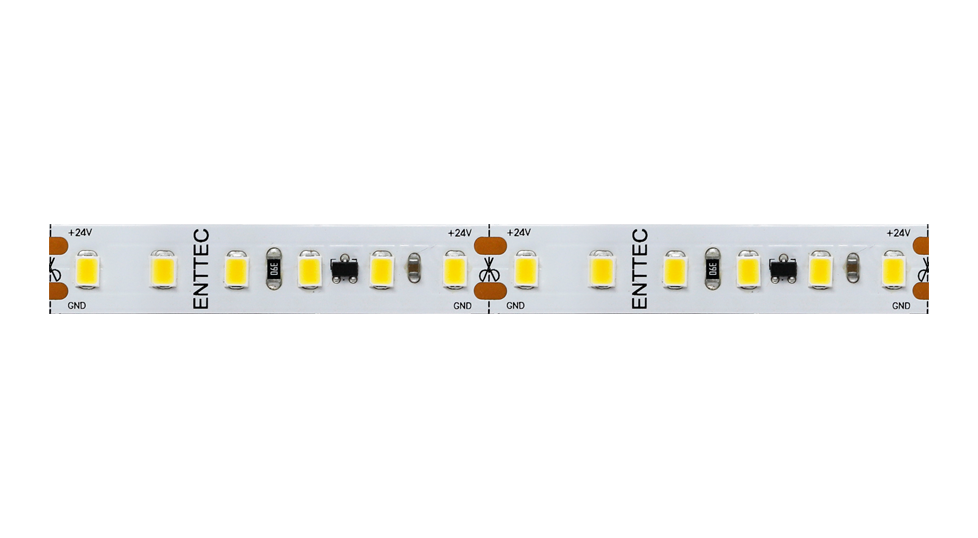

A length of the white LED strip on a plain background, densely packed white SMD emitters and resistors either side of a scissor cut mark, ENTTEC printed on the board and +24V and GND solder pads along both edges.

Image 1 of 1

High output white

Thanks to a high-output configuration, the 9CH delivers up to 1445 lumens per metre at 4000K, 1436 lm/m at 6000K, and 1297 lm/m at 3000K.

24V white range in 3000K, 4000K or 6000K

9CH is a 24V white LED tape. Choose from Warm White (3000K), Natural White (4000K), or White (6000K) colour temperatures.

Input current and wattage

Maximum input current rating is 0.61 A per metre which equals 3.05 A for a 5-metre length. 9CH consumes a maximum of 14.6 W per metre. The maximum continuous length is 10 metres with single power feed, or up to 13 metres with dual power injection.

1-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 1-year return-to-base manufacturer warranty on this product.

A dimensioned close-up of the white LED strip, ENTTEC printed between densely packed white SMD emitters, with +24V and GND solder pads, scissor cut marks, a 50mm span arrow along the top and 10mm marked across the width.

Specifications

Connectors and network
Connection (In/Out)2Pin solder tabs
Output and control
LED quantity120pcs / mtr
Lumens/meter (max)1445
Color temperature (3 variants)6000K/4000K/3000K
CRI (Ra)>90¹
R9>50
Beam angle120°
Power and thermal
Input voltage24V
Current consumption (max)0.61A / mtr
Watts/meter (max)14.6
Working/Storage temperature-30~55°C / 0°C~60°C
Environmental operating humidity5-95% (non-condensing)
Physical and supply
IP ratingIP20
PCB ColorWhite
Led strip width10mm / 0.39”
Spacing between cuttable sections50mm / 1.97”
Weight (10m roll)0.25kg / 0.55lbs
Shipping weight (10m roll)0.30kg / 0.66lbs
Shipping dimensions (10m roll)250mm x 250mm x 30mm / 9.84″ x 9.84″ x 1.18”
Warranty1-year return-to-base manufacturer warranty

Resources

Data sheet
