METAL SMART PXL40 DOT

Flexible strings of ultra-bright, high-resolution 41.5mm RGB LED nodes with robust, aluminium cases for all-weather use.

FeaturesConnectivitySpecifications Downloads

SKU: 73010-73011-73012

Individually-addressable, aluminum LED pixel dot lights.


Most dots in ENTTEC’s SMART PXL40 metal LED pixel dot series are built around robust, weatherproof cases made from UV-resistant PVC.

Because certain projects specify metal fixtures only, we also offer a machined and anodized alloy version of our 41.5mm LED pixel dots.

Constructed from marine-grade aluminum to withstand harsh environments, these are likewise designed and made to order at our Australian HQ using the latest in manufacturing techniques, before being delivered to projects worldwide.


Easy to install and configure into any shape you can imagine, these direct-view 41.5mm RGB PXL40 metal LED pixel dots create dramatic, crisp lighting effects while adding a stylish design element to your venue or installation. We also offer custom spacing options to suit different types of project.

Engineered to take any architectural, commercial or entertainment project to the next level, the SMART PXL range has been created by professionals for professionals.

Precision engineered + proudly made in Australia.

  • For professional applications
  • 24V system
  • Color-changing RGB LED pixels
  • Rich hues & ultra-smooth dimming
  • Custom lengths made to order

Features

Weather resistant

Constructed from premium durable materials in our Australian factory, SMART PXL dots offer outstanding protection against moisture (IP67), corrosion and impact (IK10), and come with a 3-year warranty. The perfect outdoor pixel light for all projects.

Custom options

Because your projects are built to custom specifications, so are our metal SMART PXL40 dots. Select from different lens options and custom spacing from anywhere between 125mm and 1200mm between each dot.

True brightness

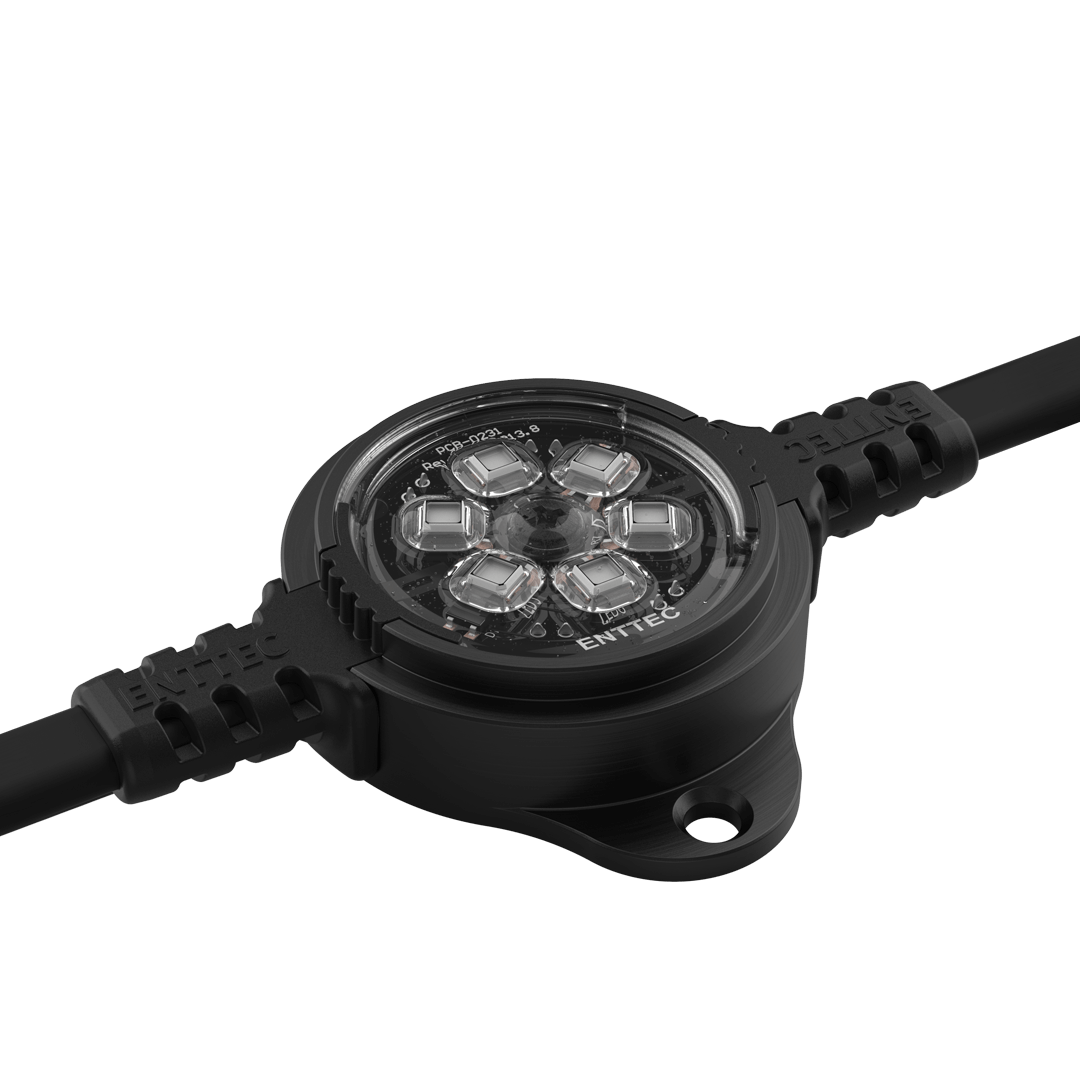

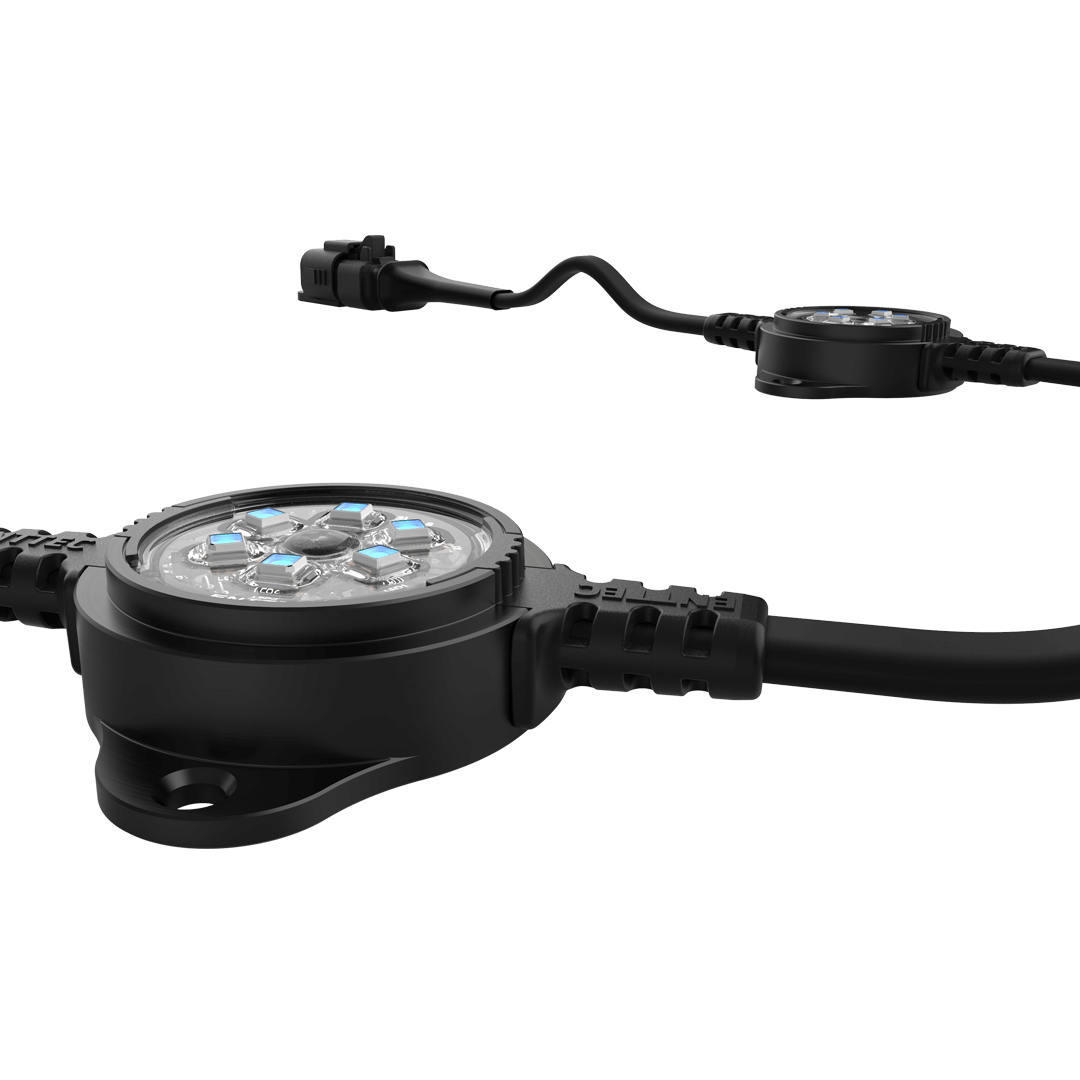

Each direct-view SMART PXL node contains 6 premium RGB LED chips, giving an impressive lumen output. They look amazing from a distance and have been used to great effect around the world on everything from bridges to ferris wheels.

Smooth as silk

16-bit native for an ultra-smooth dimming curve and mixing detail that will truly wow your audience. Alternatively, run them in 8-bit mode with an ENTTEC control system to halve the required control channels.

For extended runs

By using ENTTEC’s SMART PXL Power Injector accessory to supply power from additional PSUs, the impact of voltage-drop and power consumption is removed, allowing you to create stress-free longer installations.

Ultra flexible

The versatile nature of SMART PXL dot strings means they’re easy-to-install around tricky angles, corners or bends, making them ideal to show off or highlight architectural features. Talk with an ENTTEC expert and we can help you bring almost any design you can imagine to life.

Pair your PXL40 dots with an E N T T E C lighting control system for the ability to run your setup in 8-bit to control up to 170 RGB dots per DMX universe.

Connectivity

See how ENTTEC LED pixel dot lights can enhance your installation

Technical specifications

LEDs

Input voltage 24V DC
LED channels RGB (Red/Green/Blue)

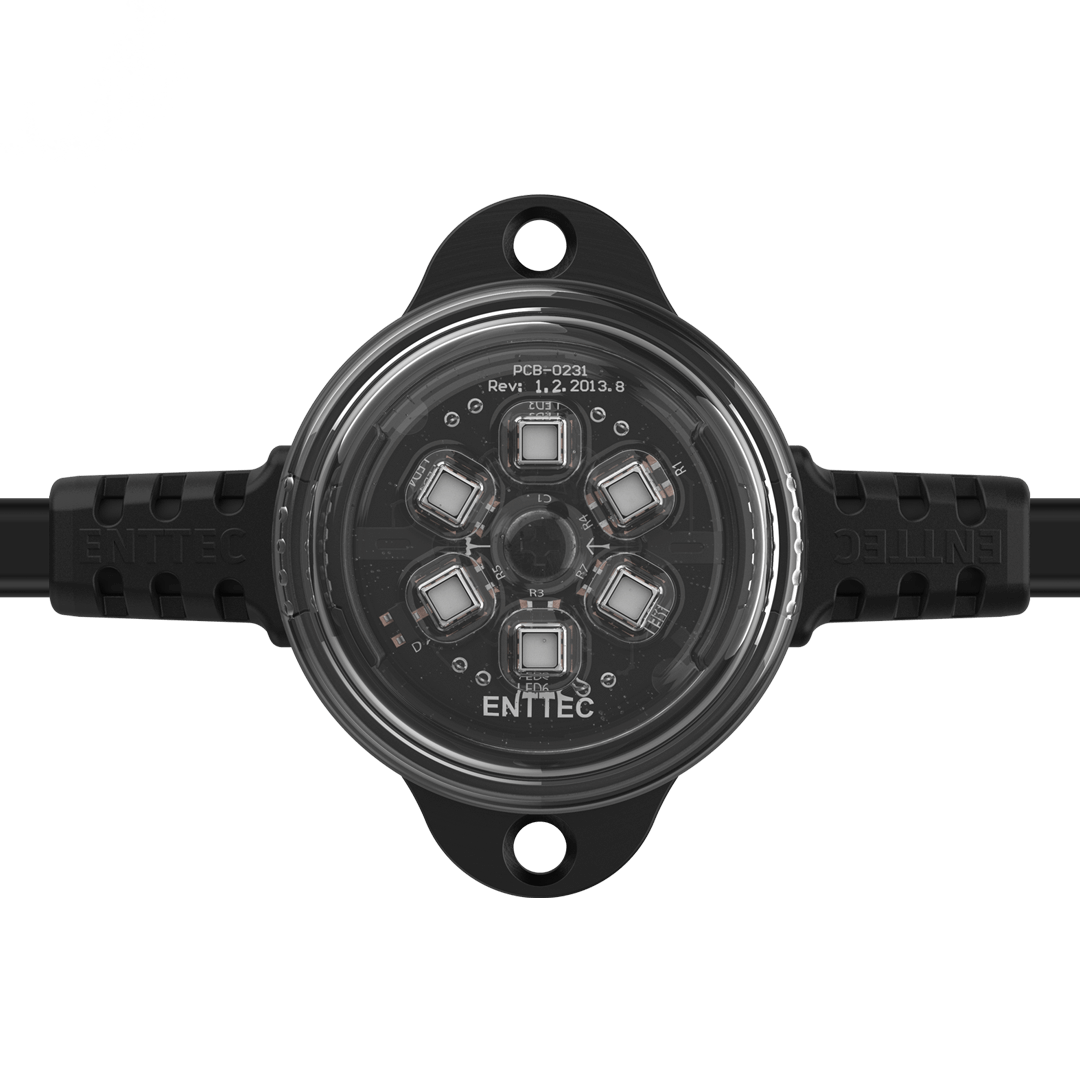

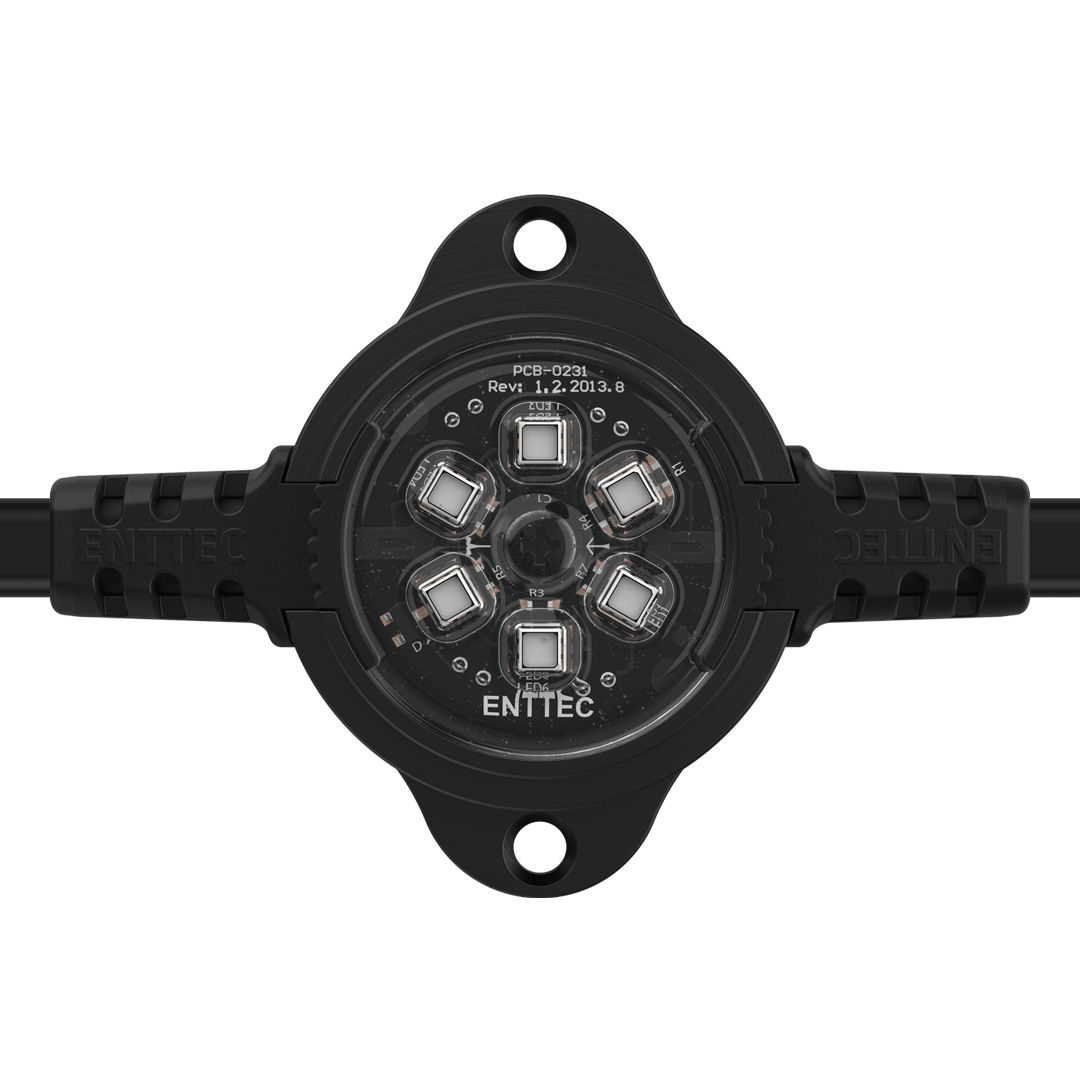

LED source 6 x RGB SMD3535 – customization options available
LED lifetime 50,000 hrs (L70)
Color resolution 16-bit (can also run in 8-bit mode)
Max lumens (lm) no lens: 33 / flat lens: 29 / dome lens: 24
Efficacy (max lm/watt) no lens: 22 / flat lens: 19.3 / dome lens: 16
Data configuration auto-addressing
Control channels equivalent of 6 DMX channels of data per dot
Control protocol ENTTEC SPXL-8 / SPXL-16
Dots controllable per DMX universe 8-bit: 170 / 16-bit: 85

Body

Body material machined and anodized 6032 aluminum

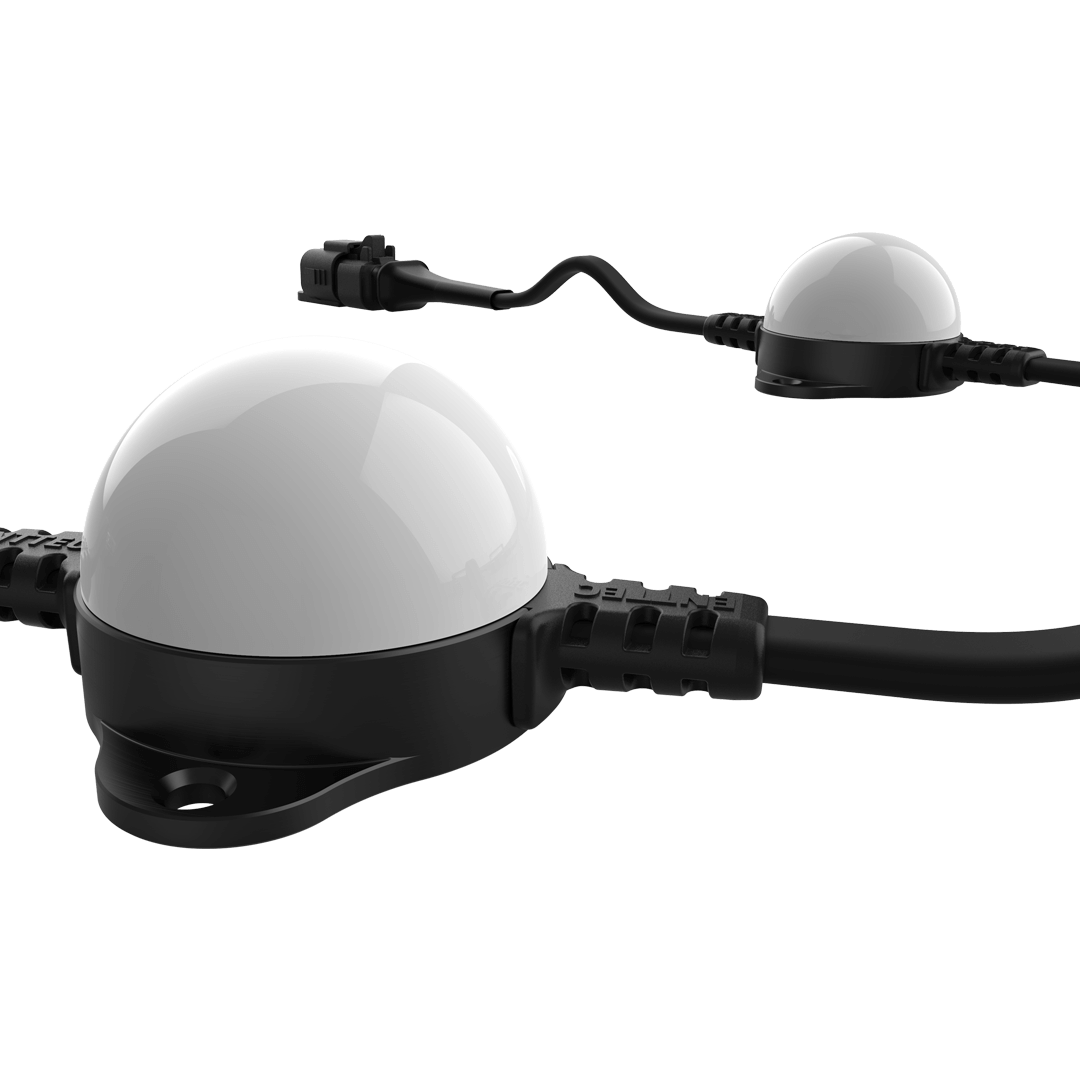

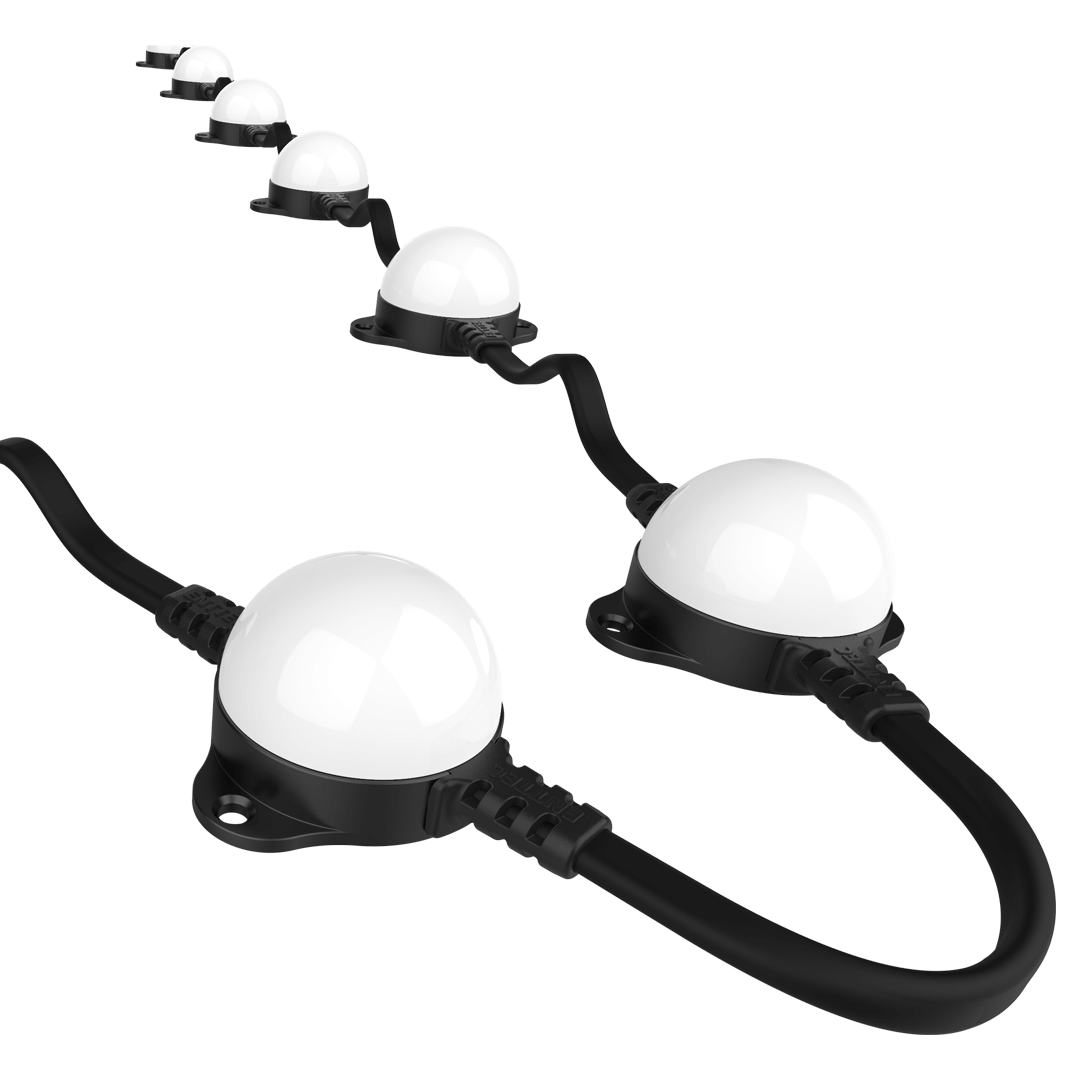

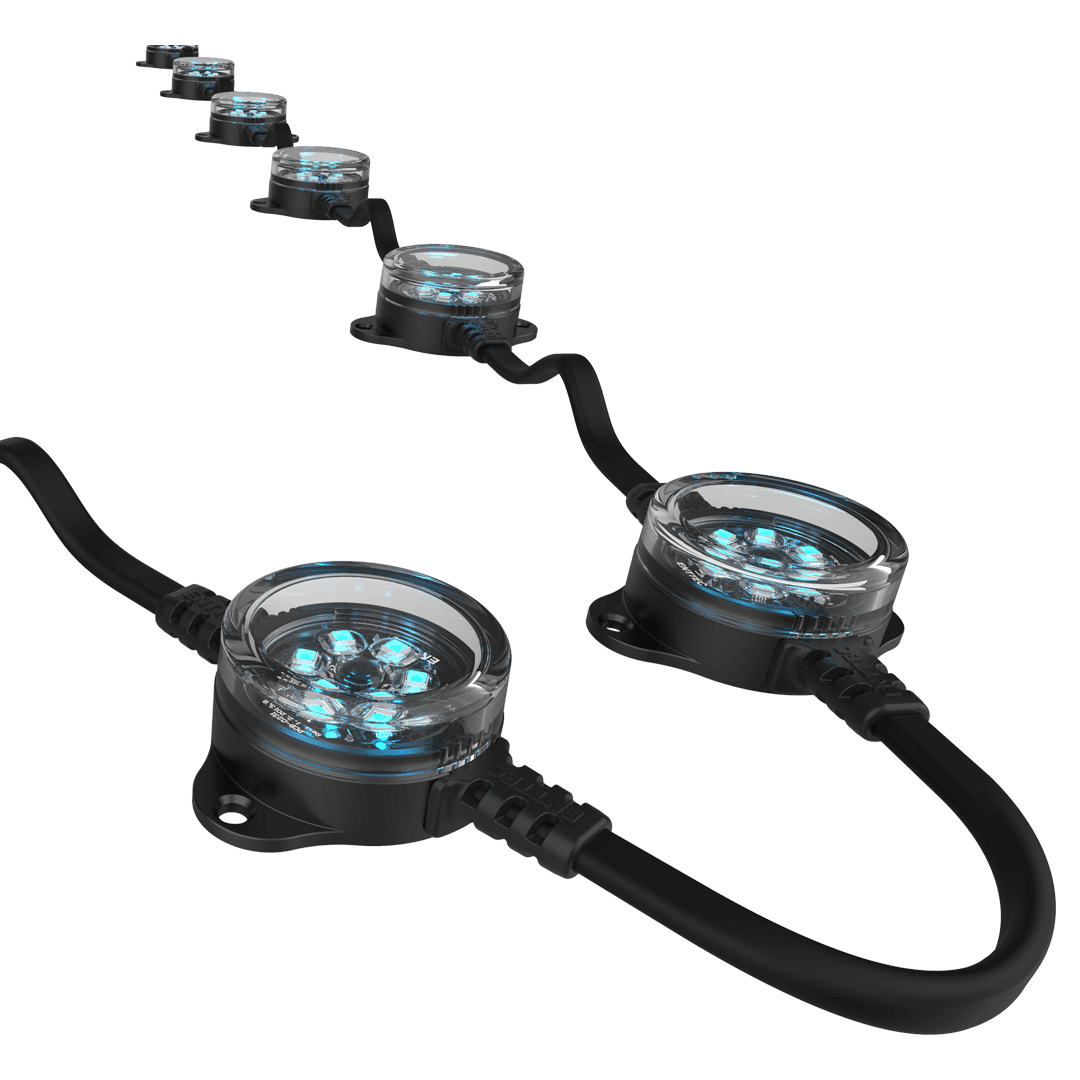

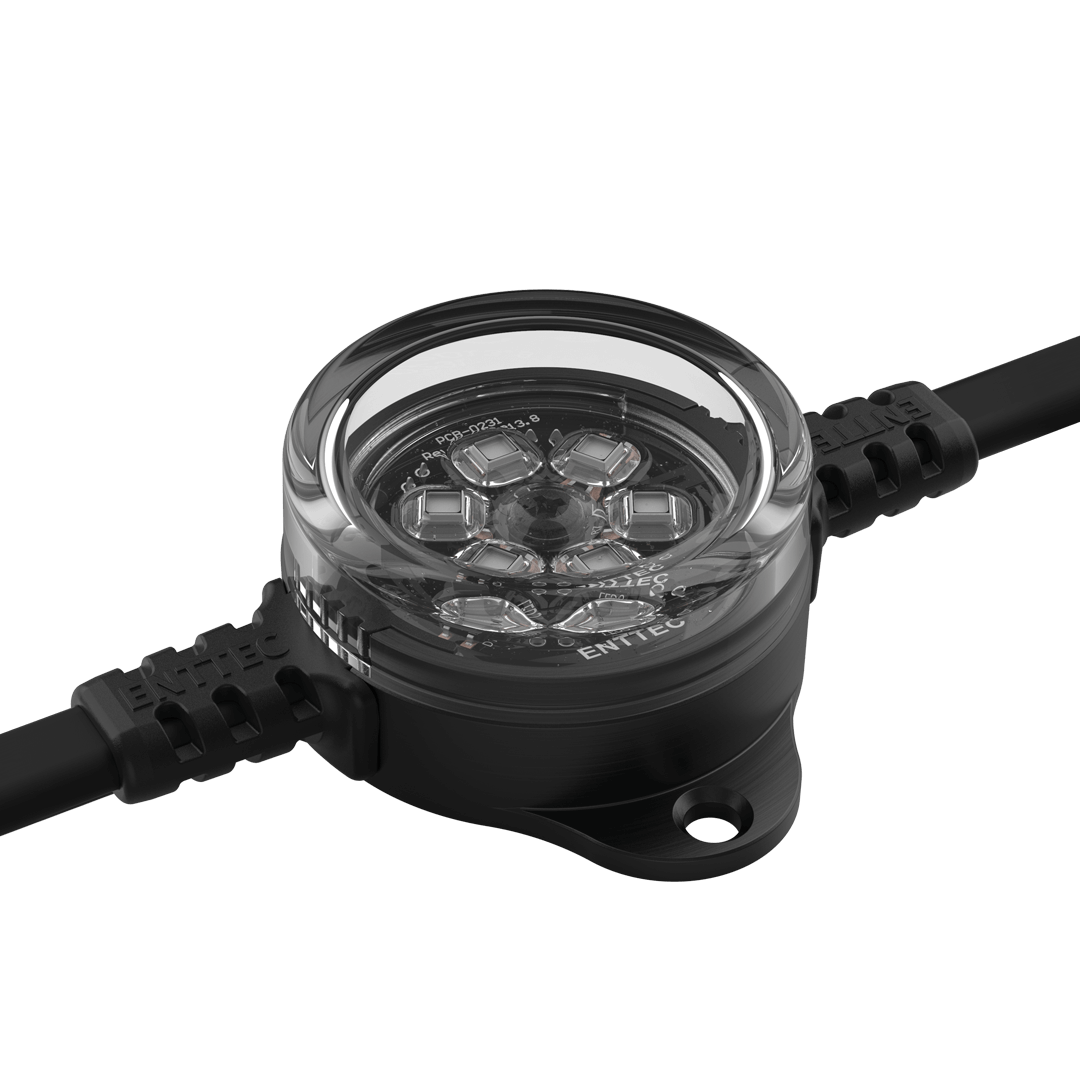

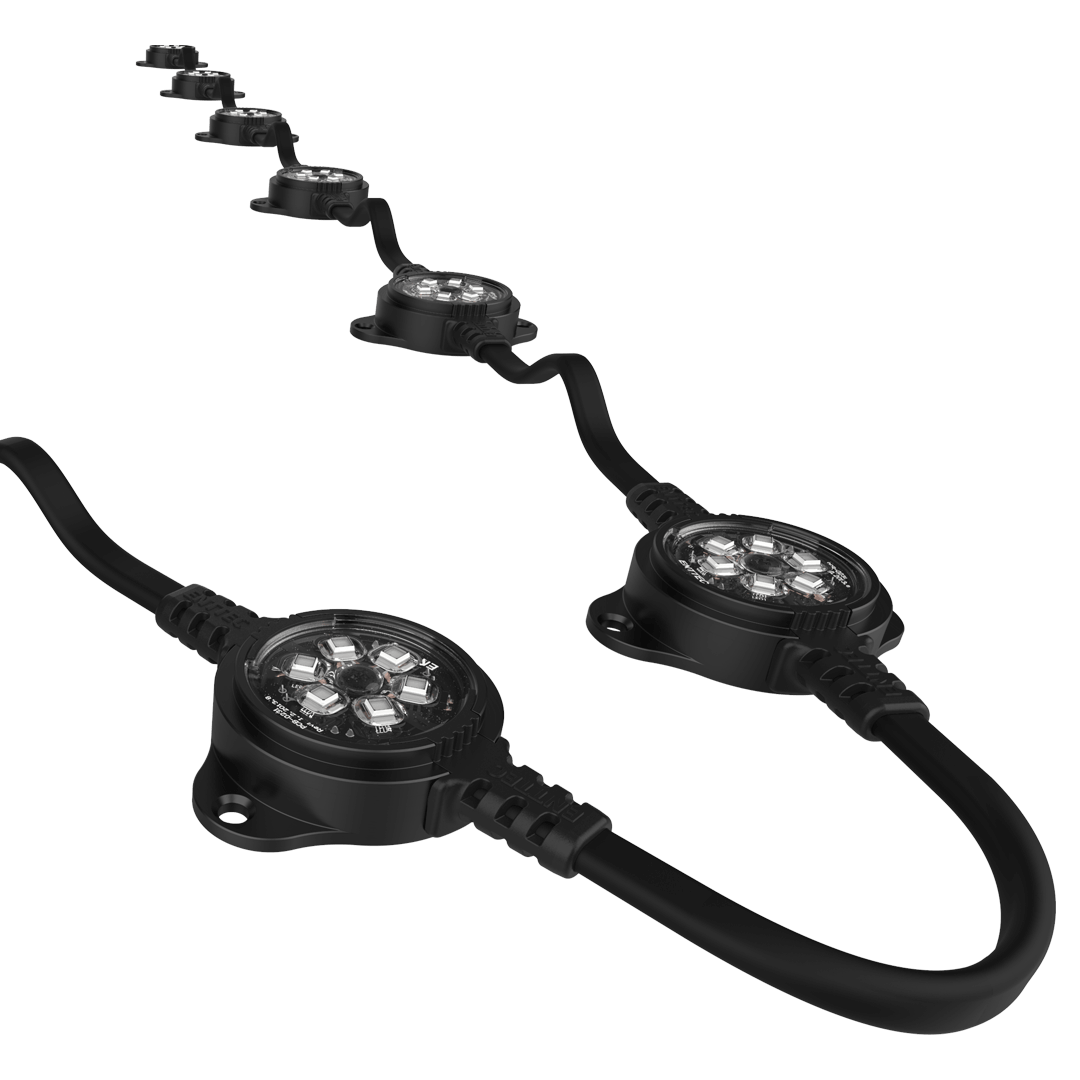

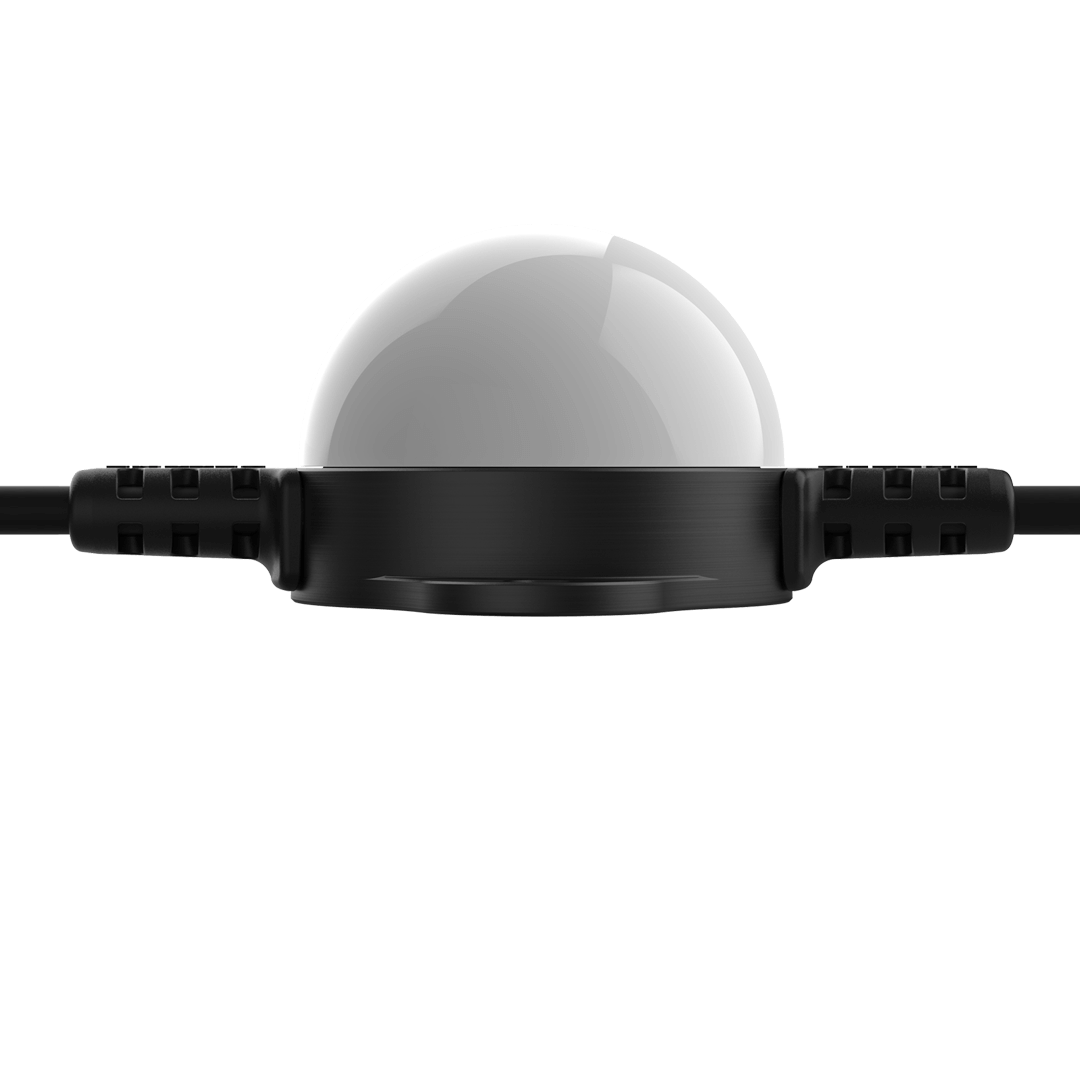

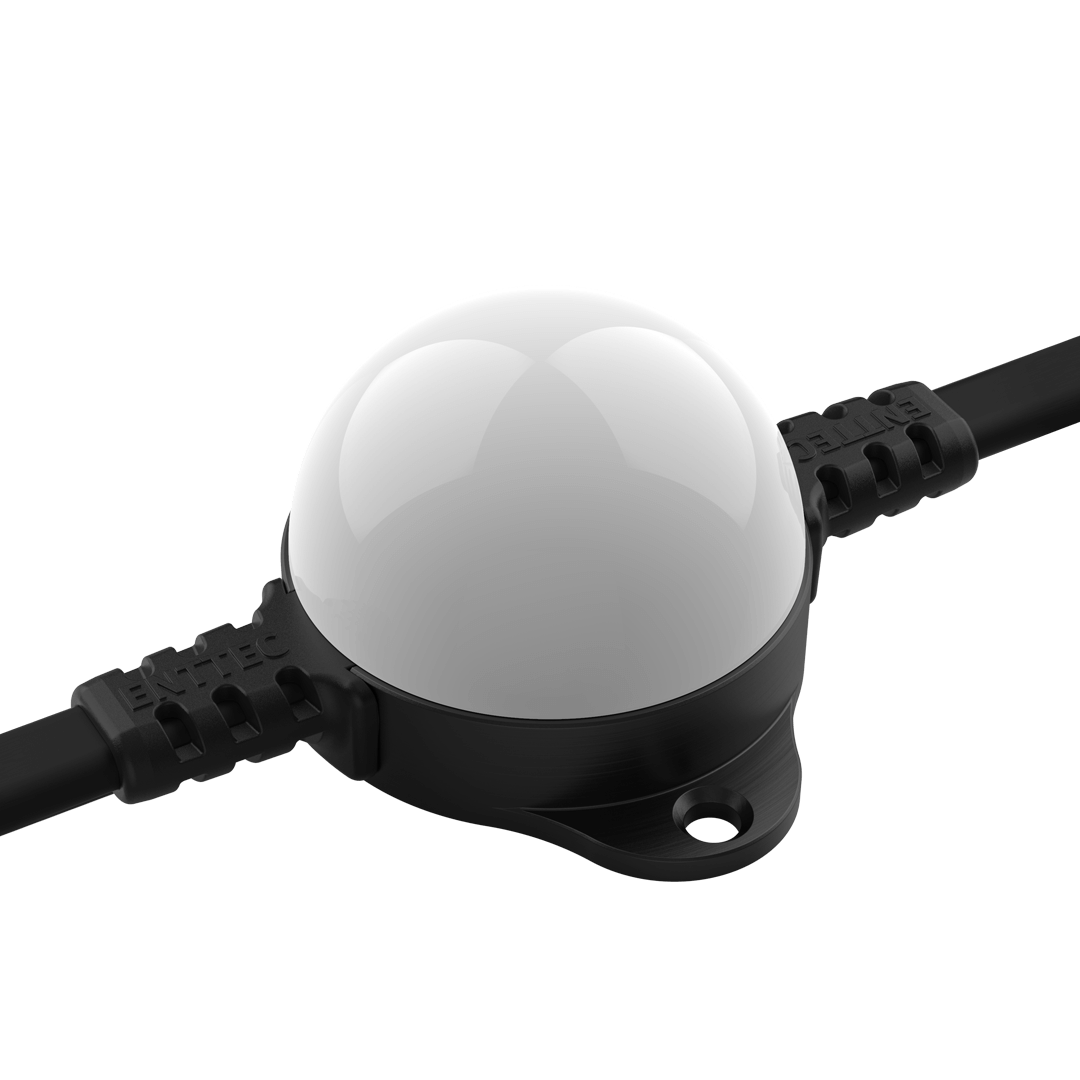

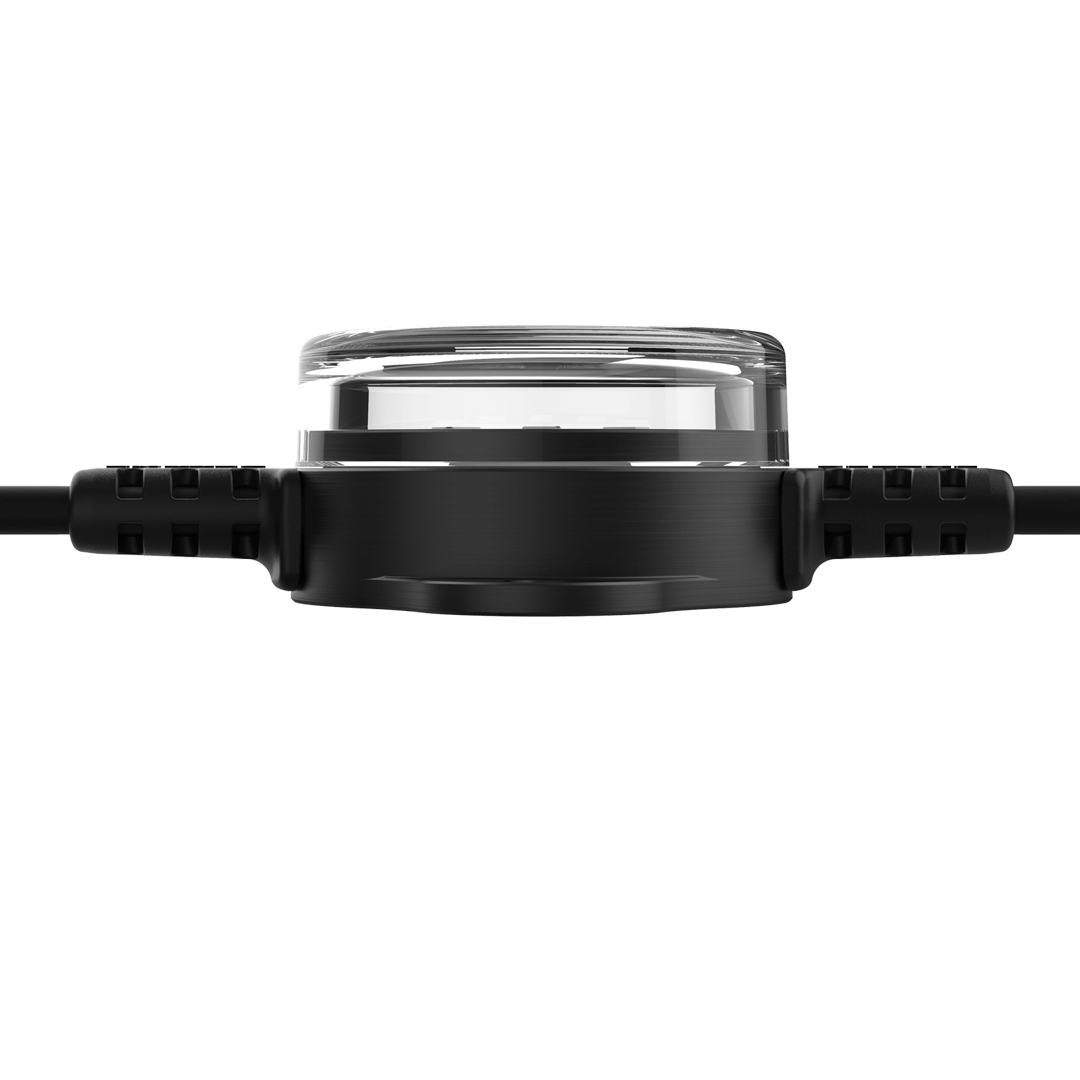

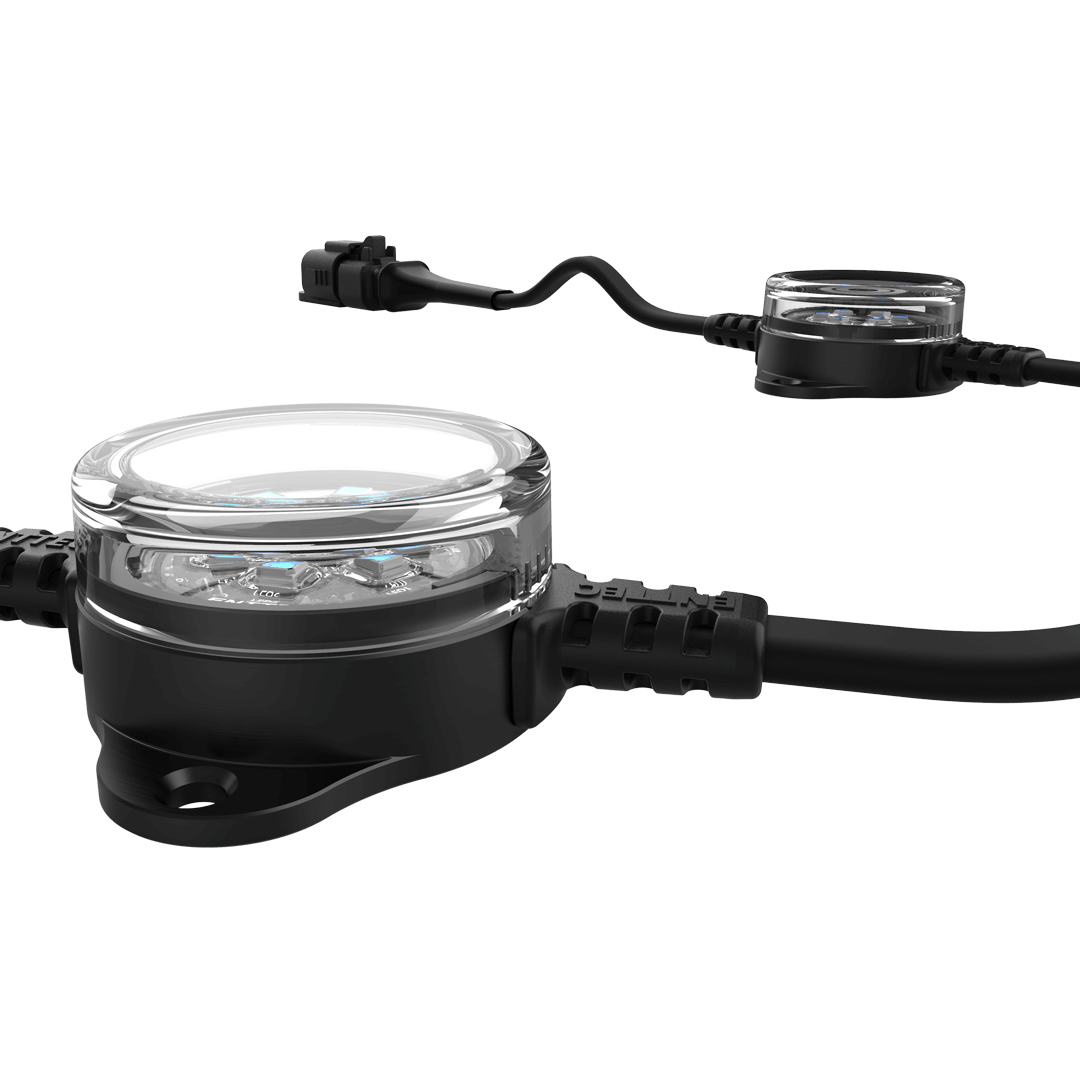

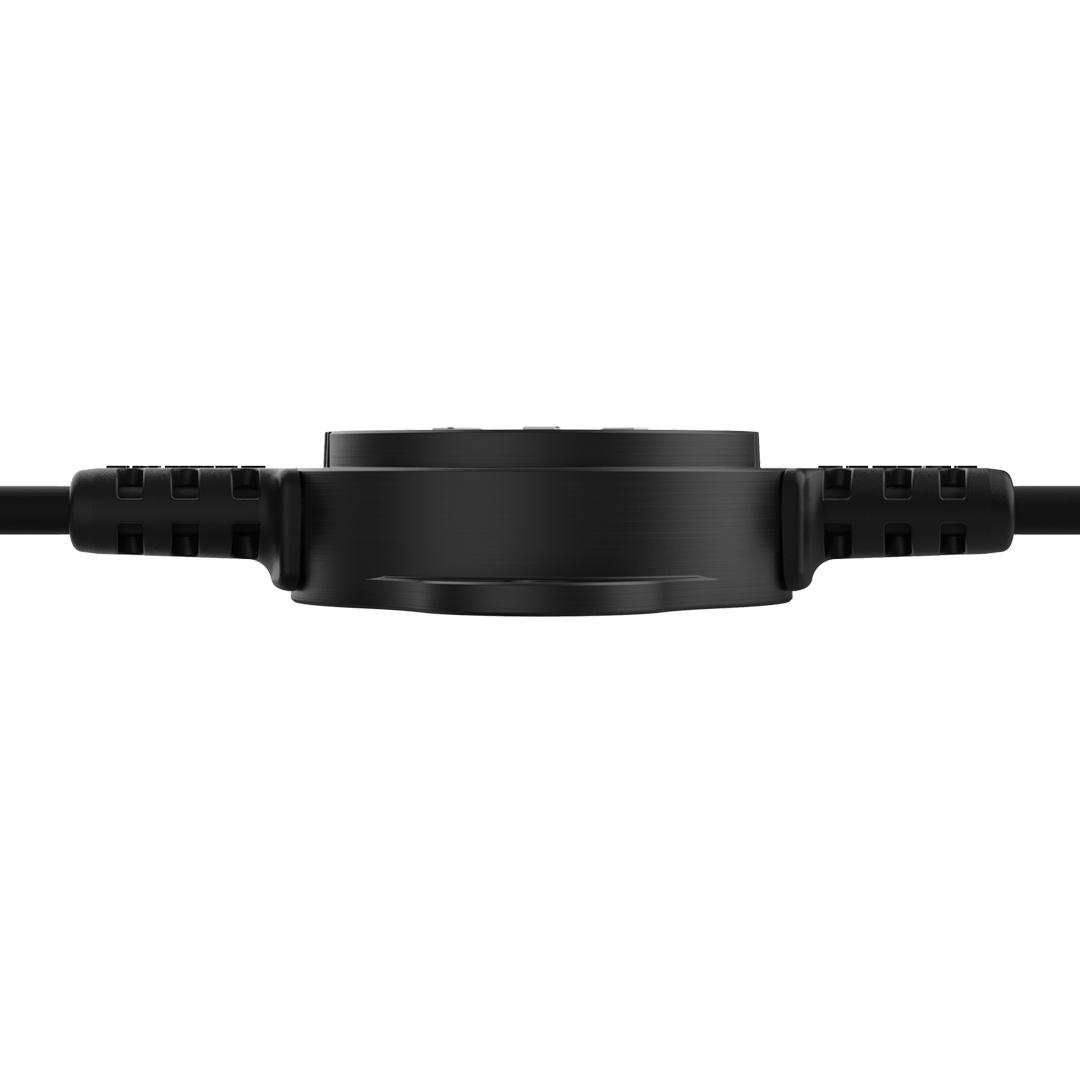

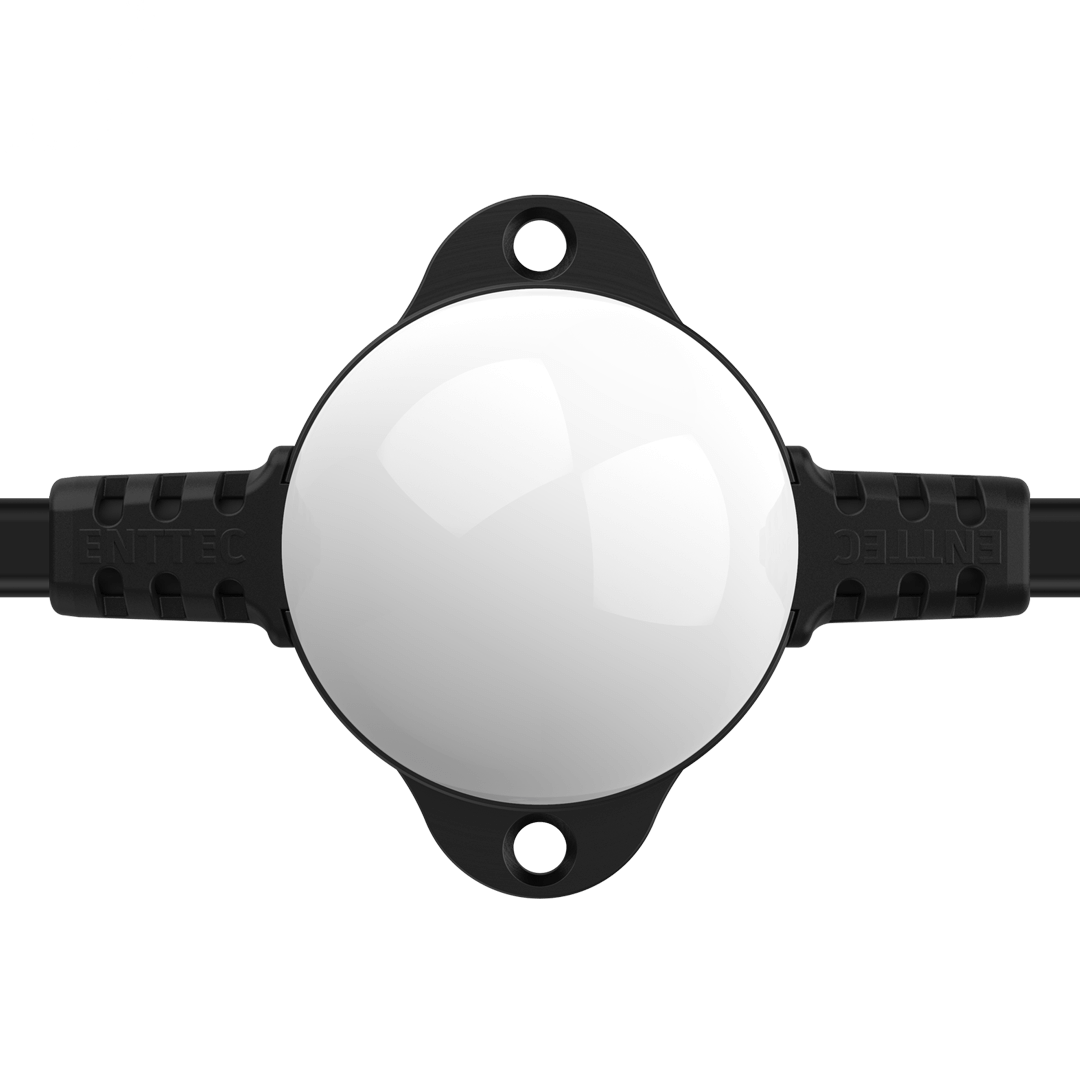

Lens options ⌀41.5mm diffuse dome / clear flat / no lens
Lens material optical grade polycarbonate
IP rating IP67 (wet location immersion ≤ 1m)
Operating temperature -20°C to +50°C
Overall dimensions 77.2mm L x 57mm W x 31.2mm H (dome lens)
Weight 1.00 kg (string of 20 dots)
Dot pitch/spacing customization options available
Installation 2 x ⌀4.3mm mounting holes for M4 screws

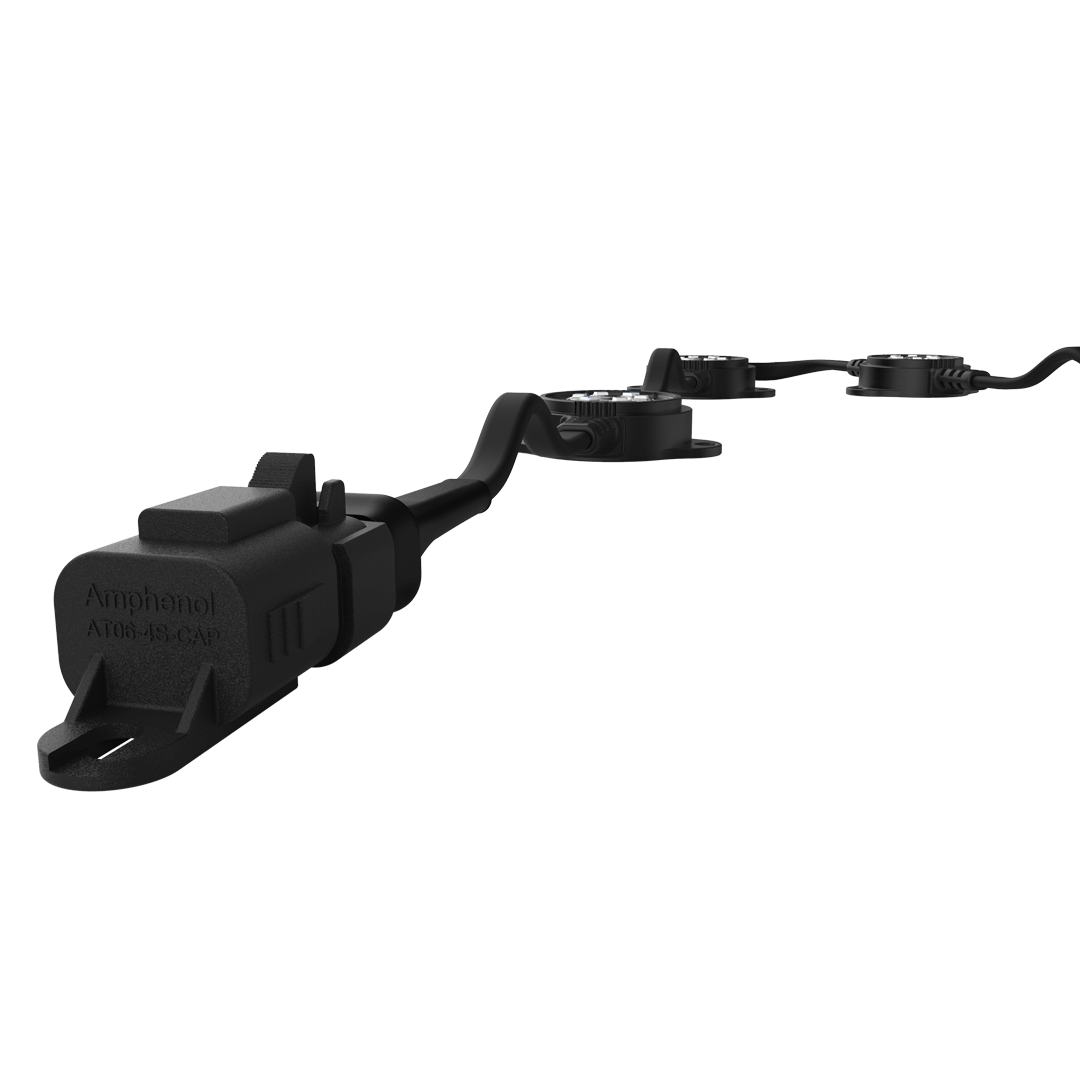

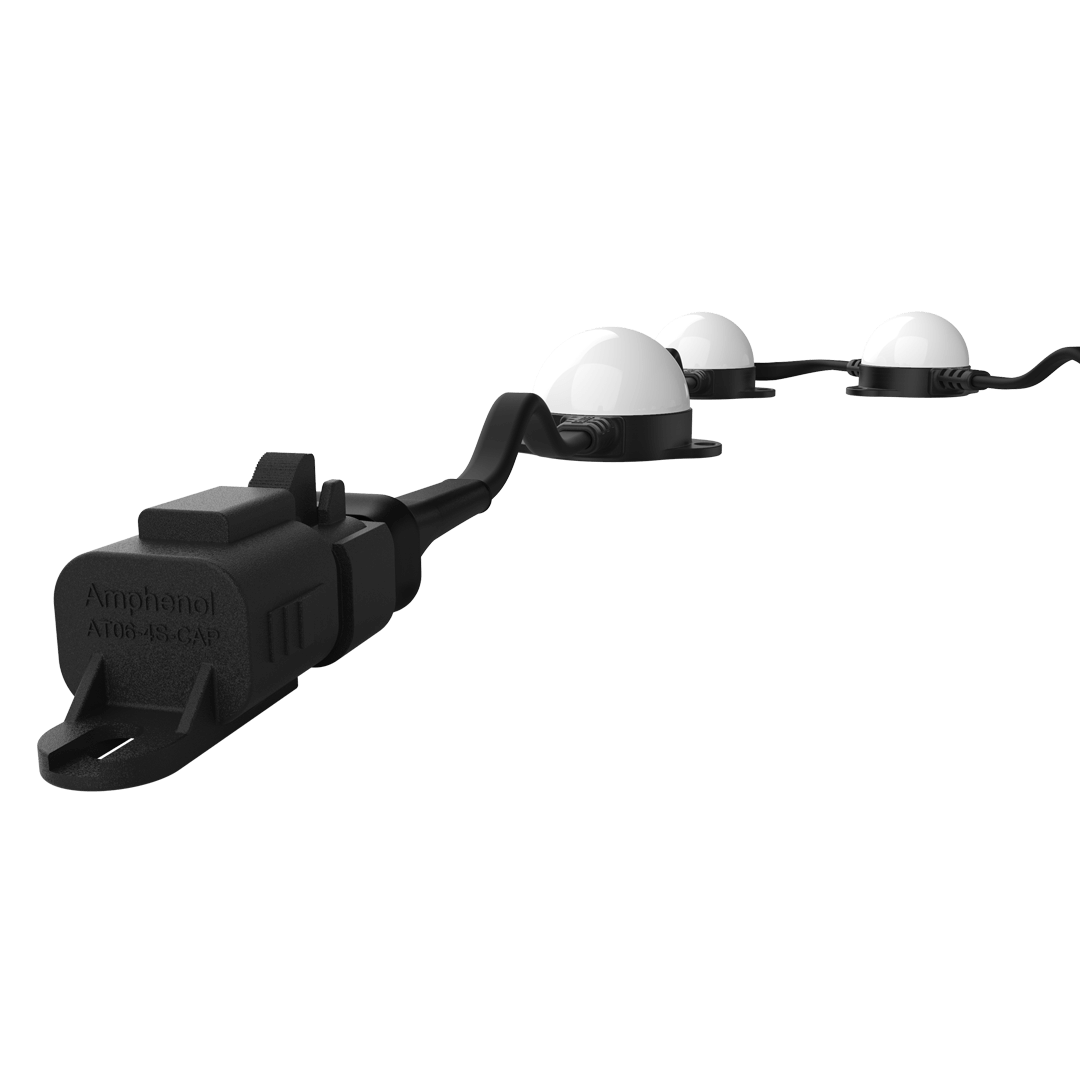

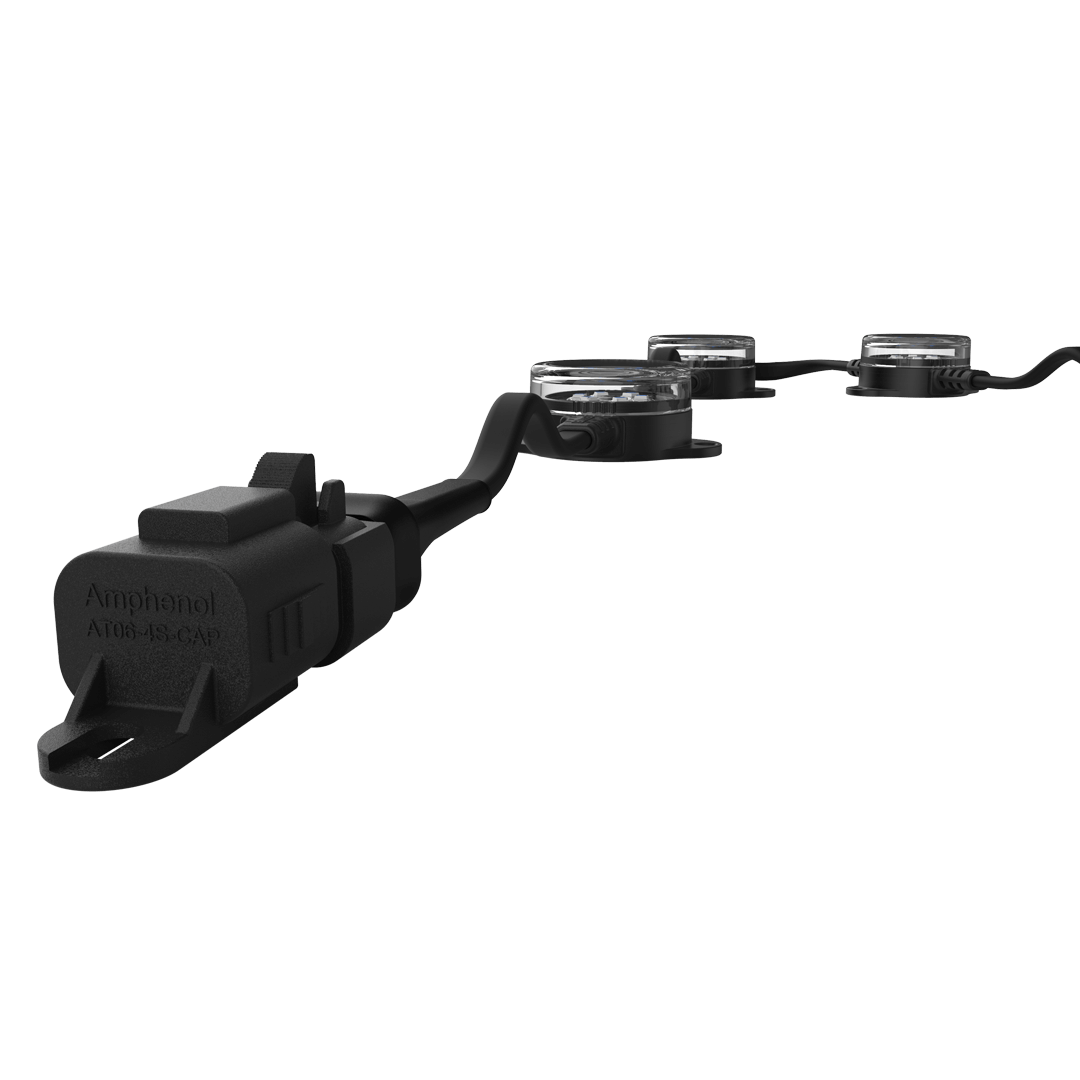

Cabling includes premium Amphenol AT series connectors
Compliance CE / WEEE / RoHS (EU), UKCA (UK)
Warranty 3-year return-to-base manufacturer warranty as standard. Talk to us to arrange longer periods

PXL40 LED pixel dot accessories

At ENTTEC, we know that well-considered design is key to a successful installation.

Our team have created a leading range of innovative accessories with premium cabling and connectors to support your project and make specifying and installing the SMART PXL series simple.

Downloads

DATA SHEETS

Metal SMART PXL40
data sheet

SMART PXL
accessories
data sheets

DOCUMENTATION

Metal SMART PXL40
installation guide

Metal SMART PXL40
IES files

IMAGES

Metal SMART PXL40
CAD drawings + dimensions

Metal SMART PXL40
hi-res images
(22.3mb)
