Constant Voltage LED Strip

Few effects conjure up an awe-inspiring atmosphere as well as constant voltage (CV) LED lighting does. ENTTEC’s non-addressable (NA) series represents the next evolution of CV LED strips — delivering brighter output, superior durability, and enhanced performance that’s ready to turn your project into something truly memorable.

View Products Contact an Expert

About
NA-SERIES LED STRIPS
Related Projects

About

What are constant voltage (CV) LED strip lights?

Also known as analog LED strip lights, constant voltage (CV) RGB or RGBW strips are a continual array of tiny LED lights typically available as a 10m reel of flexible PCB tape with adhesive backing. They differ from their more animated cousins — LED pixel strips (also known as digital, addressable, intelligent or smart LED strips) — in that the entire length of a CV strip can only glow or dim in one color at a time.

Color strips (RGB and RGBW) create vibrant effects, while white strips offer adjustable color temperatures, allowing you to customize your lighting. With varying lumen outputs depending on the model, CV LED strips provide an efficient source of decorative light.

This classic effect is popular for good reason, especially for ambient lighting and setting moods. CV LED strip lights are ideal for backlit washes or accents in your home, as well as bars, restaurants, shopping malls, architectural facades … pretty much anywhere that you might need a constant source of decorative light.

Control your CV LED strip lights with any standard DMX converter or even ENTTEC’s popular PLink system for long-distance installations.

Seven Rivers Church
in Florida, USA

This spectacular transformation of Seven Rivers Church in Florida, USA, uses ENTTEC 24V constant voltage LED strip lights. Creative accents and wall washes completely changed the atmosphere of the space, lifting it to truly ethereal heights.

Why choose ENTTEC CV strips?

ENTTEC offers a range of premium quality constant voltage LED strip lights to suit any mood or effect. Our CV strip series is fabricated to surpass industry benchmarks, not merely conform to them.

This series of non-addressable (NA) LED strips represents the next evolution of our most popular lighting family — redesigned from the ground up with upgraded components, improved photometric performance, and a more robust electrical architecture. It keeps everything installers loved about ENTTEC’s CV range — the flexibility, the reliability, the ease of integration — while adding the performance enhancements required for today’s demanding environments.

The series is fully compatible with ENTTEC control systems (including CVC4, PLink Injector, S-PLAY, ELM, and EMU) as well as third-party controllers and software — ensuring smooth dimming, flicker-free fades, and precise brightness control.

More light. More accuracy. Better consistency. Longer runs.

Usage	Recommended series
Wall wash with single color	NA-series non-addressable CV strip
Video mapping on facade	Pixel strip series
Tuneable white for circadian lighting	NA2 non-addressable CV strip
Animated rainbow chase effect	Pixel strip series
Under-cabinet kitchen lighting	NA-series non-addressable CV strip
Complex 3D mapping	Pixel strip series

Technical Specifications

Manufactured to the highest quality, our constant voltage LED strip lights are custom-designed with heavy-duty 4oz copper substrates and optimised components to deliver professional-grade performance for any application.

Explore the technical details below to see what sets the series apart:

The series features heavy-duty 4oz copper substrates — significantly thicker than the standard 1oz–2oz found in most LED tapes. This provides higher current-carrying capacity, reduced voltage drop, better thermal regulation, and extended maximum run lengths: up to 13m (NA1), 15m (NA2), or 10m (NA3/NA4) with dual injection.

Updated LED packages and optimised board design deliver significantly higher lumen performance across every model:

NA1 (White 6000K): up to 1436 lm/m
NA1 (White 4000K): up to 1445 lm/m
NA1 (White 3000K): up to 1297 lm/m
NA2 (Tuneable White): up to 1803 lm/m
NA3 (RGBW 4000K): up to 1111 lm/m
NA4 (RGB): up to 611 lm/m

Exceptional Color Accuracy (White Models)

All white and tuneable-white strips deliver specification-grade color quality:

CRI > 90 — true-to-life color reproduction
R9 > 50 — natural, vibrant reds for accurate skin tones
SDCM < 3 — tight color uniformity between batches

White-Body LEDs (RGB & RGBW Models)

The NA3 and NA4 strips use white-body SMD LED packages for more consistent blended output, reduced color fringing, and cleaner color transitions — ideal for diffused architectural coves, retail lighting, hospitality environments, and stage installations.

Physical Features:

10m reels with cuttable sections every 50–100mm (depending on model)
Easy solder-tab connections and adhesive backing for simple installation
Premium white FPC finish with 24V CV operation
IP20 indoor use

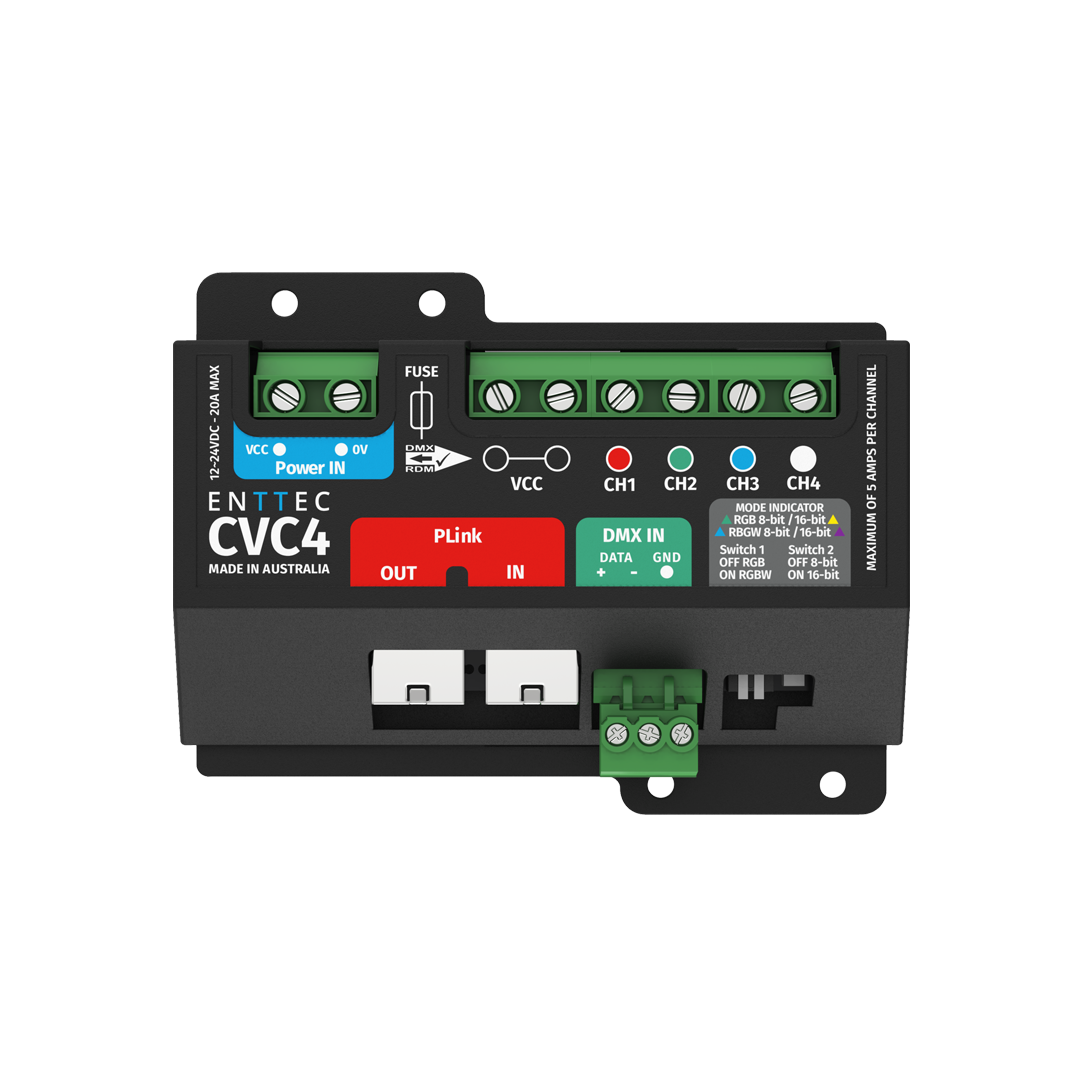

Control System Compatibility: Fully compatible with ENTTEC control systems (CVC4, PLink Injector, S-PLAY, ELM, EMU) and third-party controllers — ensuring smooth dimming, flicker-free fades, and precise brightness control.
