Powerful Ethernet to DMX, single port solution that supports Art-Net, sACN or ESP and is RDM compatible
Ethernet to DMX interface – more powerful than ever

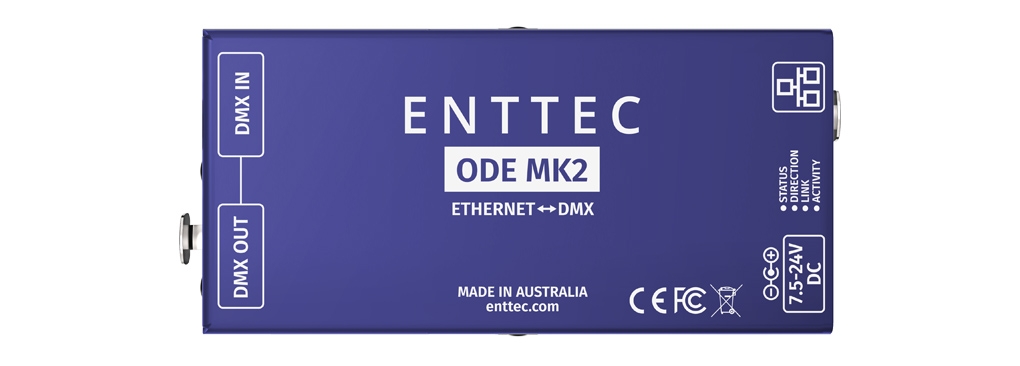

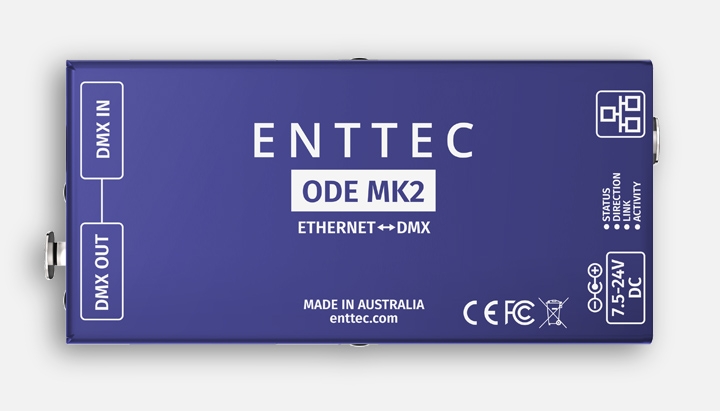

The ODE Mk2 is a solid-state single universe RDM compatible DMX node designed for the highest level of portability, simplicity, and practicality. It is the perfect solution for converting from a multitude of Ethernet-based lighting protocols to physical DMX and vice versa, without the need for adaptors. Our powerful Ethernet to DMX interface features the same modern and intuitive web-based configuration found in our premium products including, diagnostics, either LTP or HTP Merging (with up to 2 sources), and RDM support. All in the form factor of a portable single universe node.
The ODE Mk2’s four LED indicators can be used to visually check the status of your ODE Mk2 without the need to view the web interface. Use the ODE Mk2 in conjunction with a wireless router to give a buffered DMX output from any sACN / ArtNet compatible iOS or Android application. You can now enjoy trusted industry-standard performance at a budget-friendly price point. The ODE Mk2 is also available in a Power over Ethernet variant.
Easy to use
Multiple protocol support
Supports Art-Net 1/2/3, Streaming ACN sACN, and ESP. Use whichever you prefer, simply change the protocol using the web configuration.
Designed for simple connection on a network, and is compatible with an enormous range of commercial and free software thanks to its implementation of ArtNet & sACN.
Ready to connect
Our Ethernet to DMX interface is factory set to use DHCP IP addressing. Simply connect to your existing router or network infrastructure, and any supported DMX over Ethernet software will be able to stream to it.
Supports either LTP or HTP Merging (up to 2 sources). Either enable or disable merging, to suit your needs.
RDM over Art-Net
RDM to RDM-Net and vice versa is possible in both directions. When enabled, all RDM fixtures connected to the ODE Mk2 can be configured using any ArtRDM capable software.
Input or Output
Choose from ‘Input mode’ (receives DMX, and sends over Ethernet), or ‘Output mode’ (sends DMX). DMX Input mode supports options for broadcast or unicast.
Each ODE Mk2 interface comes with a 2m CAT5 ethernet cable, power supply and a quick start guide.
The ODE Mk2 is compatible with all software and controllers capable of outputting ArtNet, ESP or sACN. Two ENTTEC applications worth checking out to use with your ODE Mk2 are:
Recommended App: EMU
- EMU is a professional software based audio to lighting lighting controller for musicians which plays well with a host of different professional level hardware devices from ENTTEC.
- It has plenty of advanced features for the most demanding performers applications.
- It includes touch screen friendly interface to easily control your cues.
- Windows and MacOS compatible
- Use EMU to discover and configure Your ODE on a network.
Recommended App: ELM
- ELM : ENTTEC LED MAPPER provides total control over your LED system, regardless of shape and size.
- Design your layout with vector-based objects for maximum precision and flexibility.
- Load the media of your choice and begin playback as needed
- Supports Spout and NDI
- Supports RGB, RGBW, RGBA, RGBAW/RGBWA and White fixtures
At ENTTEC we’ve built a reputation for system compatibility and integration.
Unlock a world of potential by integrating the ODE Mk2 by pairing it with a number of well know automation systems using generic ArtNet or sACN drivers to allow you to send and receive DMX and RDM.
