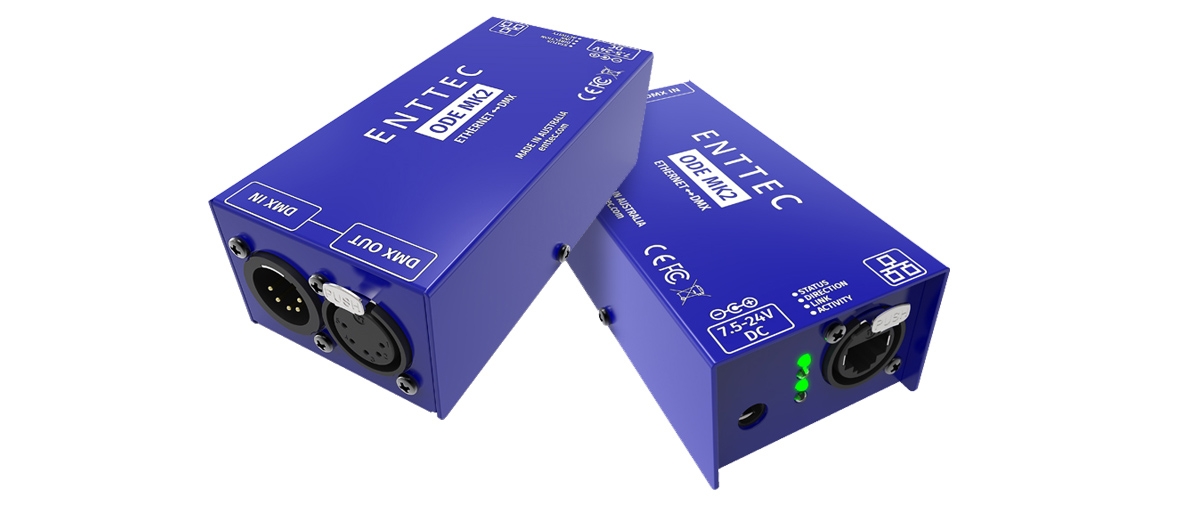

ODE MK2

SKU: 70405
Ethernet DMX interface – more powerful than ever

The ODE Mk2 is a solid-state single universe RDM compatible DMX node designed for the highest level of portability, simplicity and practicality. A perfect solution for converting from a multitude of ethernet based lighting protocols to physical DMX and vice versa, without the need for adaptors. The ODE MK2 features the same modern and intuitive web-based configuration found in our premium products including, diagnostics, either LTP or HTP Merging (with up to 2 sources) and RDM support. All in the form factor of a portable single universe node.

The ODE MK2’s four LED indicators can be used to visually check the status of your ODE MK2 without the need to view the web interface. Use the ODE MK2 in conjunction with a wireless router to give a buffered DMX output from any sACN / ArtNet compatible iOS or Android application. Enjoy trusted industry standard performance at a budget-friendly price point. Also, the ODE Mk2 is available fitted with a PoE option or in a DIN-rail form factor to ensure the best flexibility. And for even greater flexibility, truss mount your ODE using the ODE Truss mount kit.

ethernet DMX interface

 Features

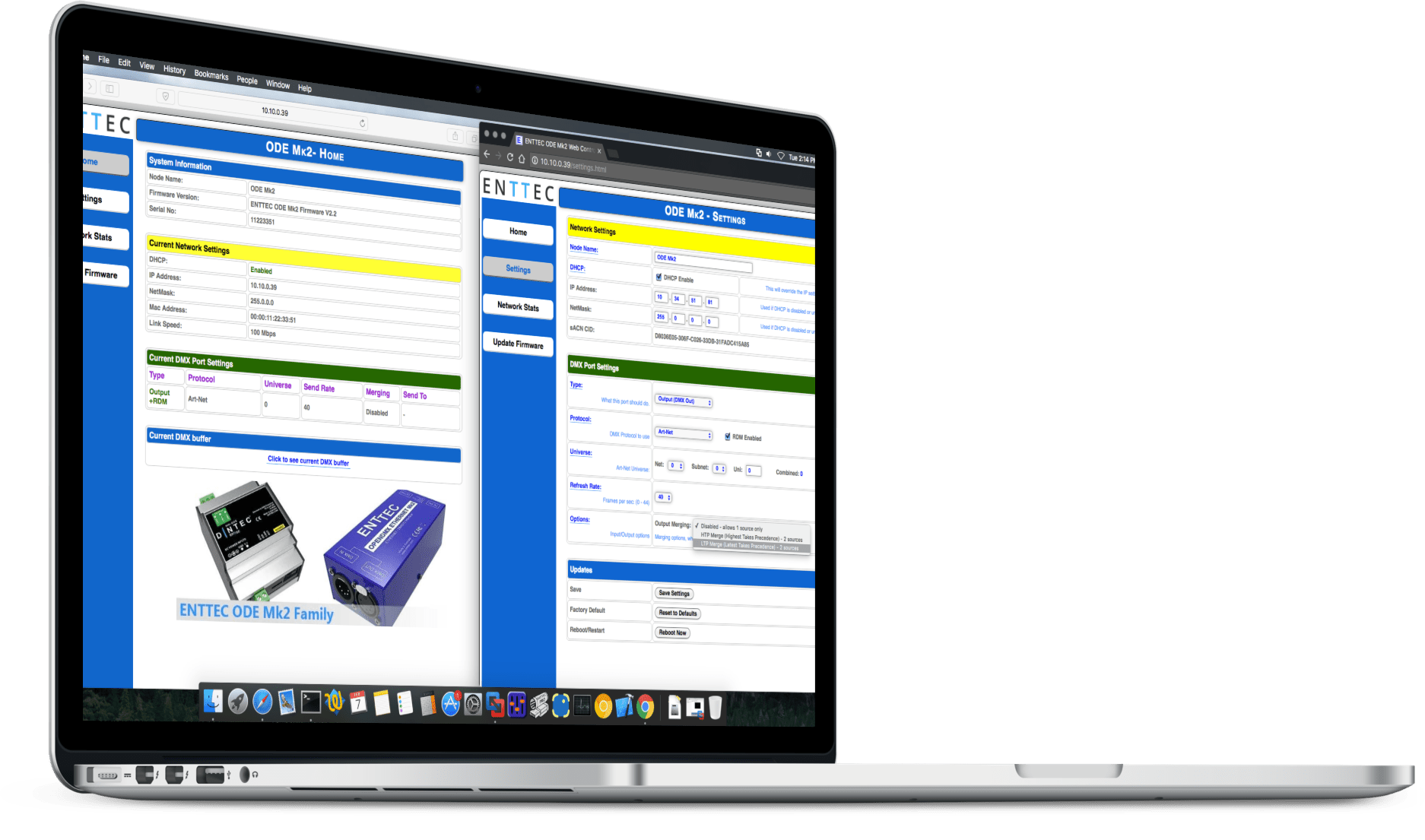

Easy web page configuration

Web-based configuration. Use your favorite browser, and click a few buttons and you are done.

Multiple protocols support

Supports Art-Net 1/2/3, Streaming ACN sACN, and ESP. Use whichever you prefer, simply change the protocol using the web configuration.

Ready to connect

ODE Mk2 is factory set to use DHCP IP addressing. Simply connect to your existing router, and any supported software will find it.

Flexible options

Supports either LTP or HTP Merging (up to 2 sources). Either enable or disable merging, to suit your needs.

RDM over Art-Net

Supports RDM Over Art-Net (controller). When enabled, all RDM fixtures connected to the ODE, can be configured using any RDM over Art-net software.

Input or Output

Choose from Input mode (receives DMX, and sends over Ethernet), or Output mode (sends DMX). Input mode supports options for broadcast or unicast.

ethernet DMX interface

Recommended App: D-Pro

  • D-PRO 2U is a software-based lighting controller which plays well with a host of different professional level hardware devices from ENTTEC.
  • It has plenty of advanced features for the most demanding lighting professional applications
  • includes D-PRO Player, a touchscreen friendly interface to easily control your cues.
  • An OSC controller (such as TouchOSC) can be used to remotely control D-Pro.
  • Windows and Mac OSX compatible

Recommended App: ELM

  • ELM : ENTTEC LED MAPPER provides total control over your LED system, regardless of shape and size.
  • Design your layout with vector-based objects for maximum precision and flexibility.
  • Load the media of your choice and begin playback as needed
  • Supports Spout and NDI
  • Supports RGB, RGBW, RGBA, RGBAW/RGBWA and White fixtures
