9VLW – RGBW LED tape (10m)

The RGBW LED strip provides ultimate RGBW output and is designed and produced to the highest ENTTEC quality standards.

SKU: 9VLW-10

Overview
Features
Specifications
Resources

High-density, outstanding performance, and unmatched output

This high-grade RGBW LED strip provides the ultimate RGBW output thanks to a brilliant design. With high density, power and performance the RGBW LED strip outshines the competition. This is the best RGBW strip you will ever use.

Thanks to a brilliant output configuration, 9VLW is the best RGBW strip to ever come out of the ENTTEC LED factory. You’ll experience quality unlike any other tape on the market.

Highly efficient at less than 17.28W total power consumption per metre. Copper track for effective heat dissipation and long life.

With 60 high quality RGB and White LEDs crafted per metre, this tape outshines the competition.

Specifications

Connection (In/Out)	5Pin solder tabs
IP rating	IP20
Input voltage	24V
Current consumption (max)	0.73A / mtr
LED quantity	60pcs / mtr
Watts/meter (max)	Red, 4.45 Green, 3.31 Blue, 3.12 White, 6.4
Lumens/meter (max)	Red, 66 Green, 179 Blue, 42.6 White, 562
CCT (All LEDs RGB On)	7000K
CCT White	4000K SDCM3
Beam angle	120°
PCB Color	White

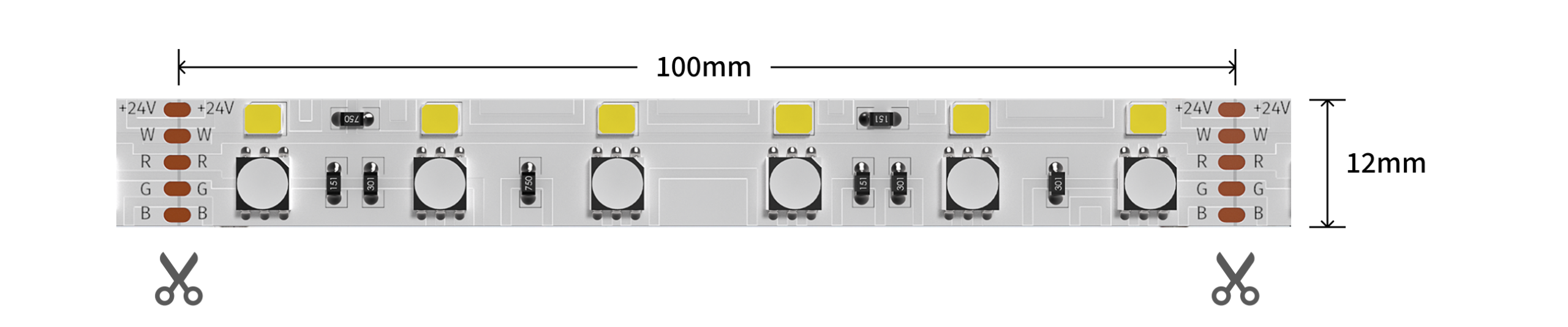

Led strip width	12mm / 0.47”
Spacing between cuttable sections	100mm / 3.93”
Working/Storage temperature	-30~55°C / 0°C~60°C
Environmental operating humidity	5-95% (non-condensing)
Shipping weight (10m roll)	0.30Kg / 0.66lbs
Shipping dimensions (10m roll)	250mm x 250mm x 35mm / 9.84″ x 9.84″ x 1.38”
Warranty	1 year manufacturer’s return-to-base warranty
