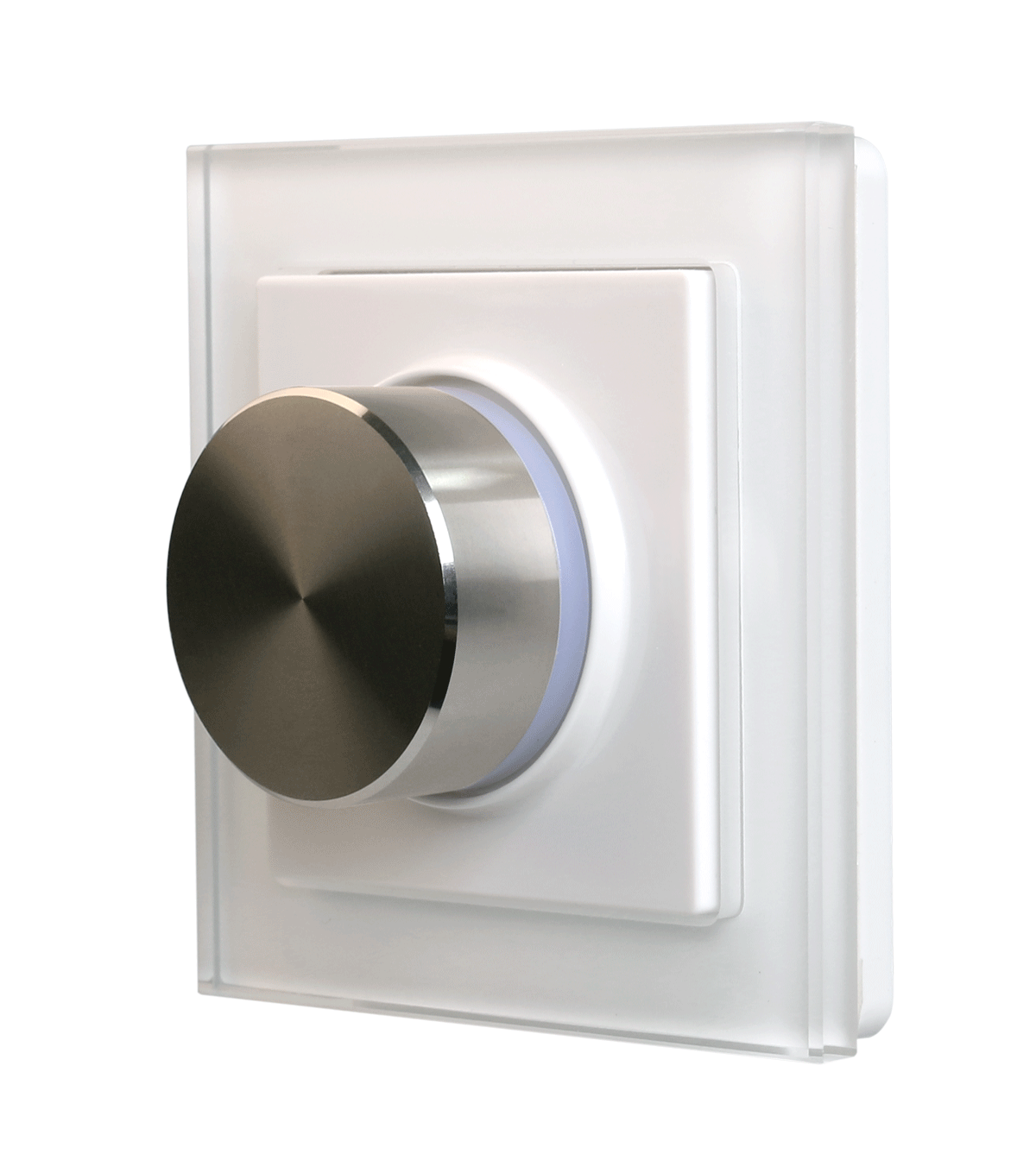

DT8 Rotary Controller
SKU: 72422
Simple, no fuss DALI dimmer driver.
Features
DALI control and dimming
DALI single channel PWM dimmer
Smooth fading
This DALI dimmer, supports a smooth full range logarithmic fade curve tuned to human vision. Best in class.
External connections
This dimmer will require an external DC power supply for normal operation. (not included). Features screw terminal connections, for ease of use.
Max power and current
Since the driver supports 8A between 12V to 36V DC, it can achieve a maximum of 96W to 268W power. Actual power will vary based on the external power supply used.
Downloads

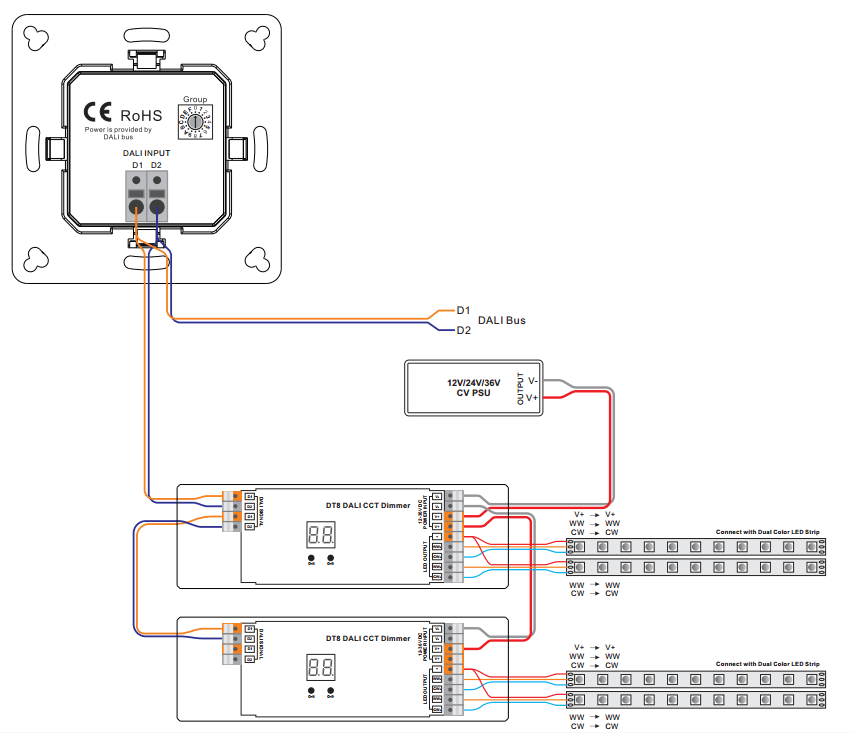

Wiring Diagram
