Built for life on the road, this robust unit can run directly from your Art-Net, sACN or ESP data stream, enabling you to easily incorporate pixel projects of all sizes into your live rig.

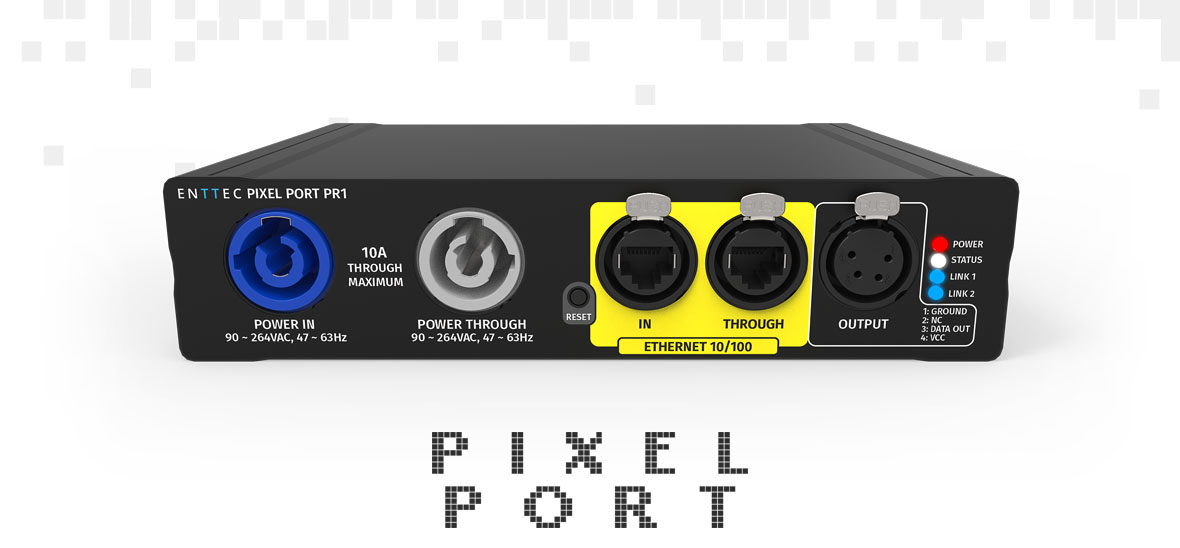

The Pixel Port comes complete with etherCON and powerCON ins and outs, supports a wide variety of protocols and is available as a 5, 12 and 24-volt product. It’s also rack, truss, DIN and surface-mountable (with the optional Universal bracket set), allowing for seamless integration into any high-quality, industry-standard set-up.
Direct Mode lets you control each pixel individually for infinite creative possibilities, while Standalone Mode comprises 14 pre-sets designed to showcase the best of what your tape/dots can achieve. You also get six blank user slots with which to store your own bespoke shows.
Or try our latest innovation, the Effect Generator. Configured with our classic ENTTEC web-server, the Pixel Port’s on-board processor gives the user extensive effect options such as waveform, direction, speed, size, strobe, which operate as crossfading programming layers.
This intelligent, touring-grade network driver truly is your portal for easy lighting control.
Touring pixel driver
Hook up your pixel tape or dots using the supplied connector, connect to a network, and power it up. It couldn’t be more simple! And the unit’s rugged construction means that it’s built for life on the open road.
Built-in effects generator
Configured with our classic ENTTEC web-server, the Pixel Port’s on-board processor gives the user extensive effect options such as waveform, direction, speed, size, strobe, intensity and operates both on ‘background’ and ‘foreground’ programming layers.
Easy webpage configuration
Intuitive web-based configuration. Use your favorite browser, click a few buttons and you’re done.
Multiple protocols support
Supports Art-Net 1/2/3, Streaming ACN sACN, and ESP. Use whichever you prefer, simply change the protocol using the web configuration.
Supports a wide range of Pixel tape and dots
The following protocols are fully compatible with Pixel Port:
Powerful control modes
Built-in standalone presets with the ability to record more. You can simply choose your preset and power the unit up – no further input is required.
How many pixels?
Each unit can power and drive up-to 340 RGB pixels. If that’s not enough for you, simply link one Pixel Port to another, and keep going until all of your pixels are connected. Too easy!
Recommended App: ELM
- ELM : ENTTEC LED MAPPER provides total control over your LED system, regardless of shape and size.
- Design your layout with vector-based objects for maximum precision and flexibility.
- Load the media of your choice and begin playback as needed
- Supports Spout and NDI
- Supports RGB, RGBW, RGBA, RGBAW/RGBWA and White fixtures
powerCON mains cable (US)
A high quality 1.7 metre long powerCON mains power cable with US plug.
Universal bracket set
A high quality carbon steel mounting bracket set to suit many mounting options
