Robust and reliable, ENTTEC’s high-resolution, individually-addressable SMART PXL pixel dots are designed and made in Australia from marine grade aluminum to withstand the harshest of environments.
Easy to install and configure into any conceivable shape, SMART PXL dots create spectacular, crisp lighting effects while adding a stylish design element to your venue or installation.
Engineered to take any architectural, commercial or entertainment project to the next level, the SMART PXL range has been created by lighting professionals for lighting professionals.
SMART PXL dots are 16-bit native for an ultra-smooth dimming curve and color mixing detail that will truly wow your audience. If using an ENTTEC control system, you can also run them in 8-bit mode to double your control channels.
Each SMART PXL node contains premium RGB LEDs, giving an impressive lumen output with different diffuser options, while thick, tinned copper cabling reduces voltage drop over the length of each string.
Unlike other brands, ENTTEC SMART PXL cases are made from anodized aluminum (6061 T5), a marine grade alloy known for its high corrosion resistance. These dots are seriously built to last.
The internal components of our SMART PXL range are fully-potted (encased in resin) for waterproofing as well as resistance to shock and vibration. Offering outstanding protection against moisture and corrosion, they come with a 3-year warranty.

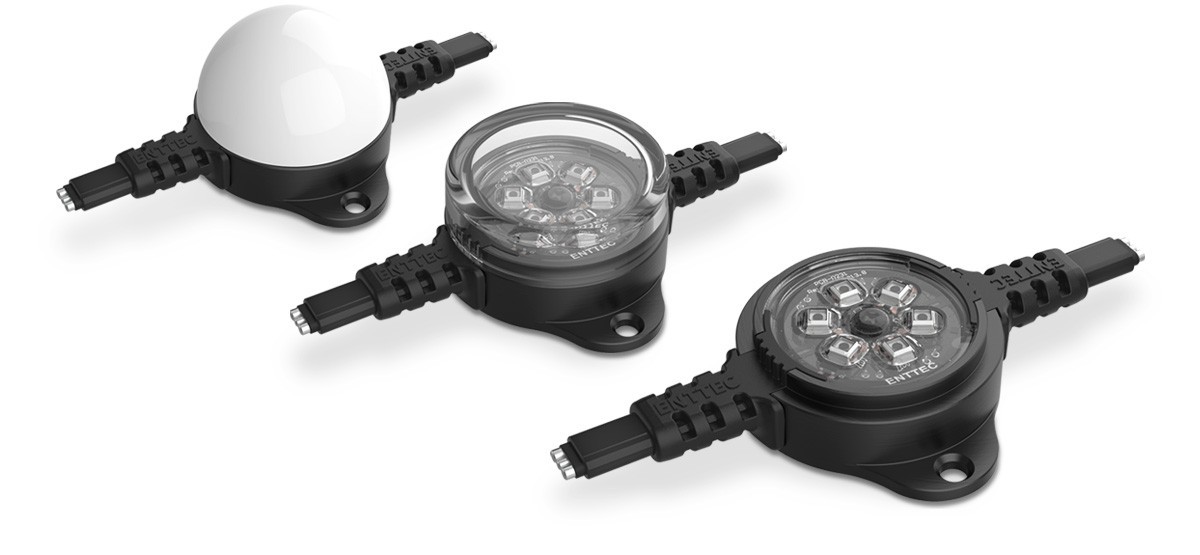

A truly versatile LED pixel fixture, 41mm-diameter SMART PXL 40 dots are the ideal size to create fantastic resolution lightshows in any shape or location, indoor or out. Onboard mounting holes ensure fast, easy positioning and installation without the need for extra brackets.
Simply calculate how many dots you’ll need, pick the diffusers that best suit the design of your project, and you’re away!
- 6 x video grade Hi-Res RGB LED chips
- Each SMART PXL dot is individually-addressable
- True 16-bit/8-bit dimming curve
- Lumens: 33 (no diffuser) / 29 (clear flat) / 24 (opal dome)
- 1.5W max / 24V DC
- 41mm diameter
- String of 20 dots (3375mm)

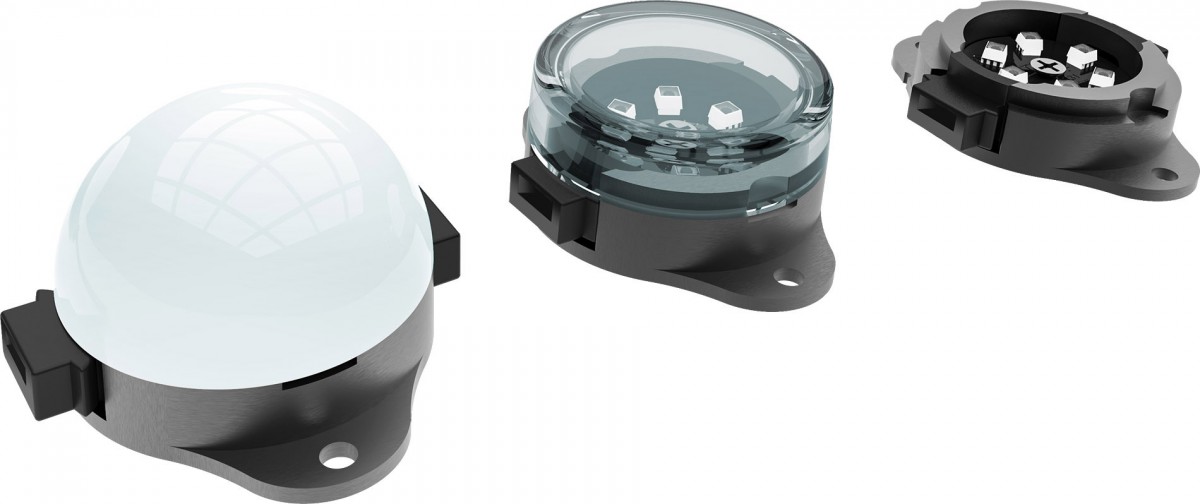

- Diffuser options: opal dome / clear flat
- Pitch: 125mm (custom available)
- Anodized 6061 T5 aluminum body
- In-built mounting ears
- IP67 Rated for indoor or outdoor use
- Operating temperature: -20°C to +50°C
- Custom pitch and/or diffusers available
- 3-year warranty
- SMART PXL 40 dot CAD: No diffuser + dimensions
- SMART PXL 40 dot CAD: Dome diffuser + dimensions
- SMART PXL 40 dot CAD: Clear flat diffuser + dimensions
- SMART PXL 40 dot CAD: Installation footprint
Strings of SMART PXL 40 dots are coupled together using high-performance Amphenol connectors.
An international leader in professional connector and cabling technology for over 60 years, Amphenol’s easy-to-use, rugged designs have been specifically tailored to meet the rigorous demands of the entertainment industry.
Fitted with superior environmental seals and seal retention capabilities, their durable thermoplastic casings have excellent UV resistance and are environmentally RoHS compliant, while electrical contacts are derived from quality copper alloys to ensure a reliable connection every time.
Amphenol AT Series connectors are rated IP67 with industrial grade heat shrink for added rigidity. Both male and female connectors are available individually on a 2M flat cable with 3-core bare ends, or as a male-to-female 2M extension cable.
A handy termination end cap is also available, designed to protect the final female connector in a Smart PXL DOT chain from short circuiting or corroding in wet conditions.
CONTROL YOUR DOTS
SMART PXL dots require DC power and data input using the ENTTEC SPXL protocol.
This means that there are a variety of ENTTEC products designed to control and drive your dots, all of which have different features and capabilities. The system best suited to you will depend on the requirements of your project and how many SMART PXL dots you’d like to control.
Below are some of our most popular options:
Used in conjunction with ENTTEC’s famous PLINK SYSTEM, the compact PIXELATOR MINI and its DIN-rail mountable twin, the PIXELATOR MINI PX1-8D, enable control of up to 2,730 SMART PXL dots, while their big brother, the original PIXELATOR, can handle up to a whopping 8,192 dots when connected to ENTTEC’s PLINK or PSAT output devices.
A state-of-the-art DIN-Rail LED pixel controller, the PIXEL OCTO can also handle up to 1,360 SMART PXL dots through its intuitive web interface, or by receiving up to 8 Universes of DMX over Ethernet.
