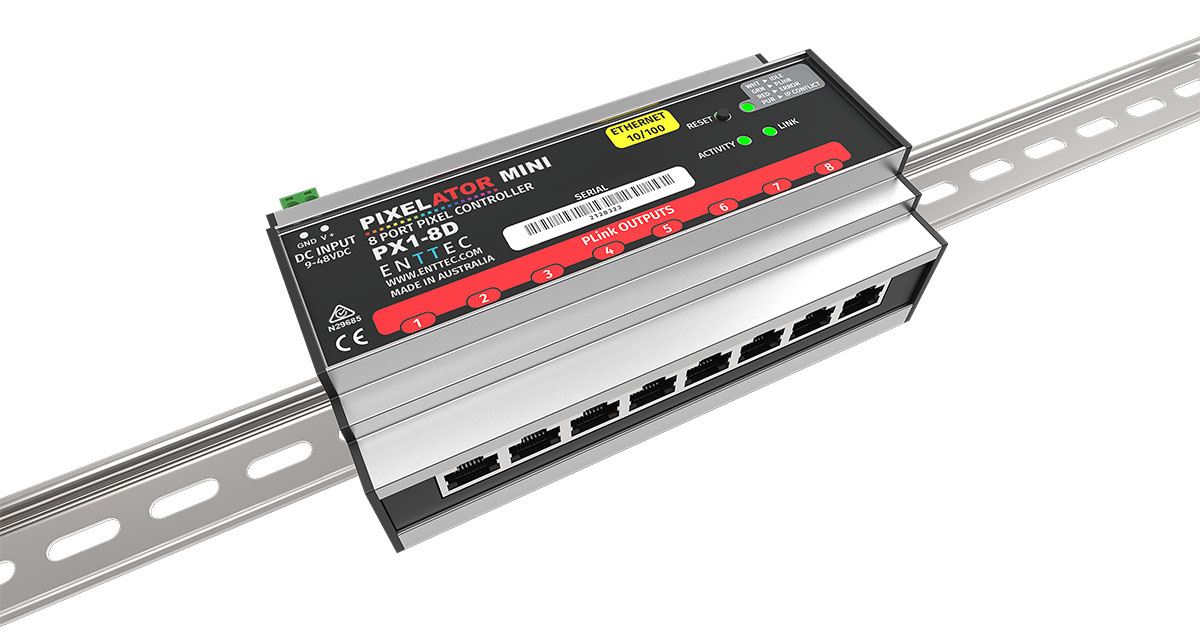

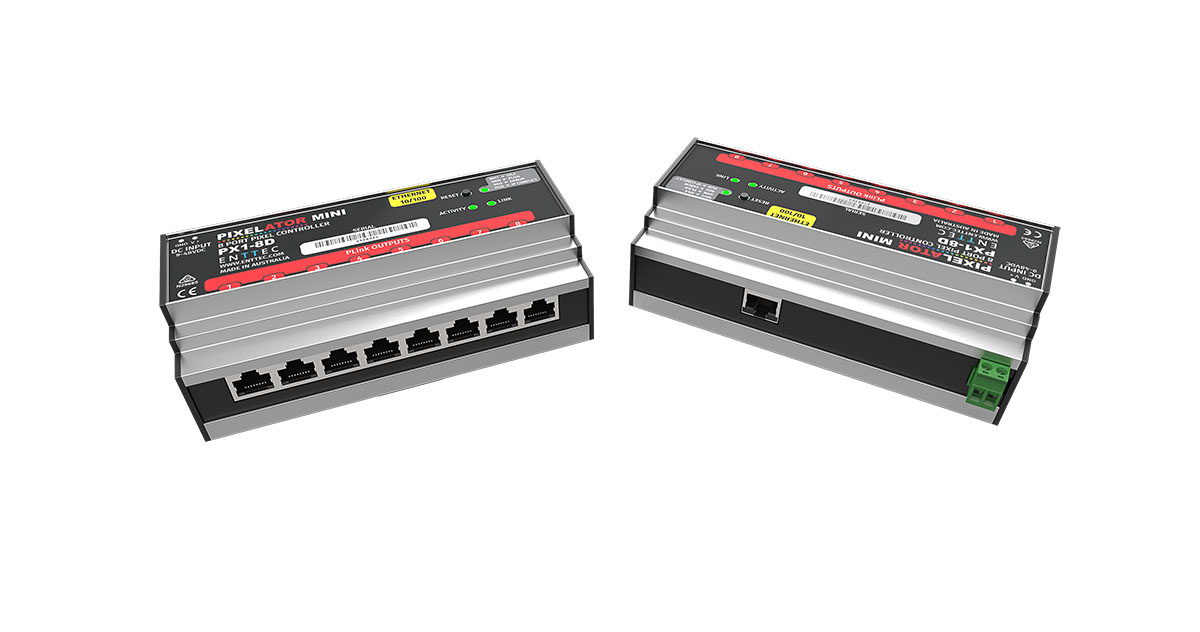

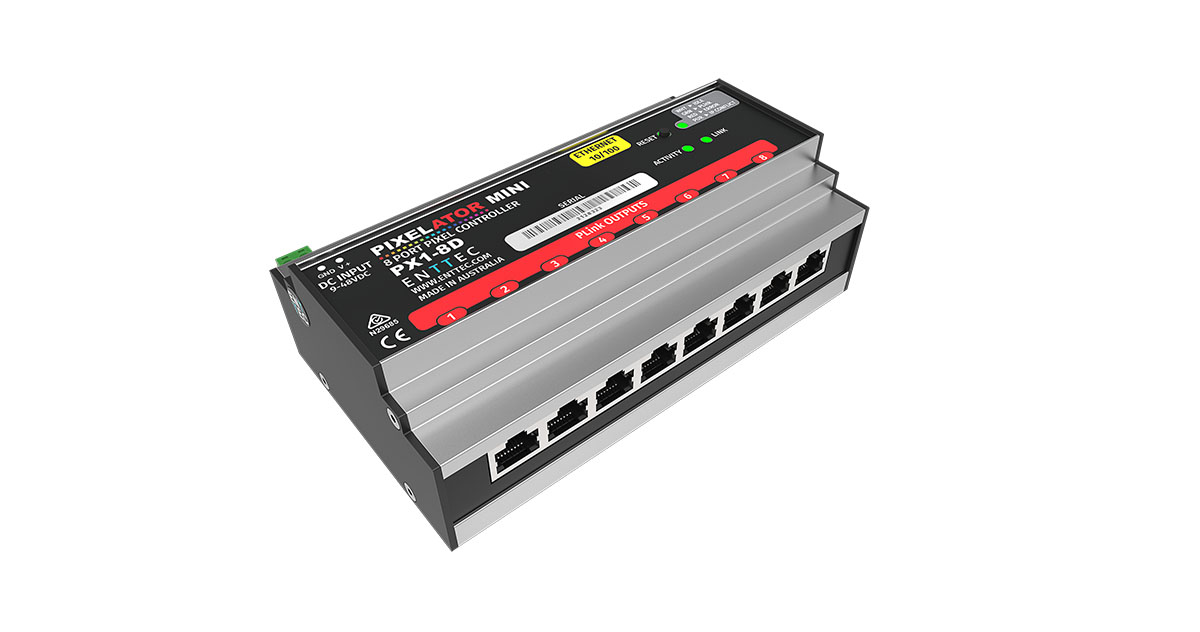

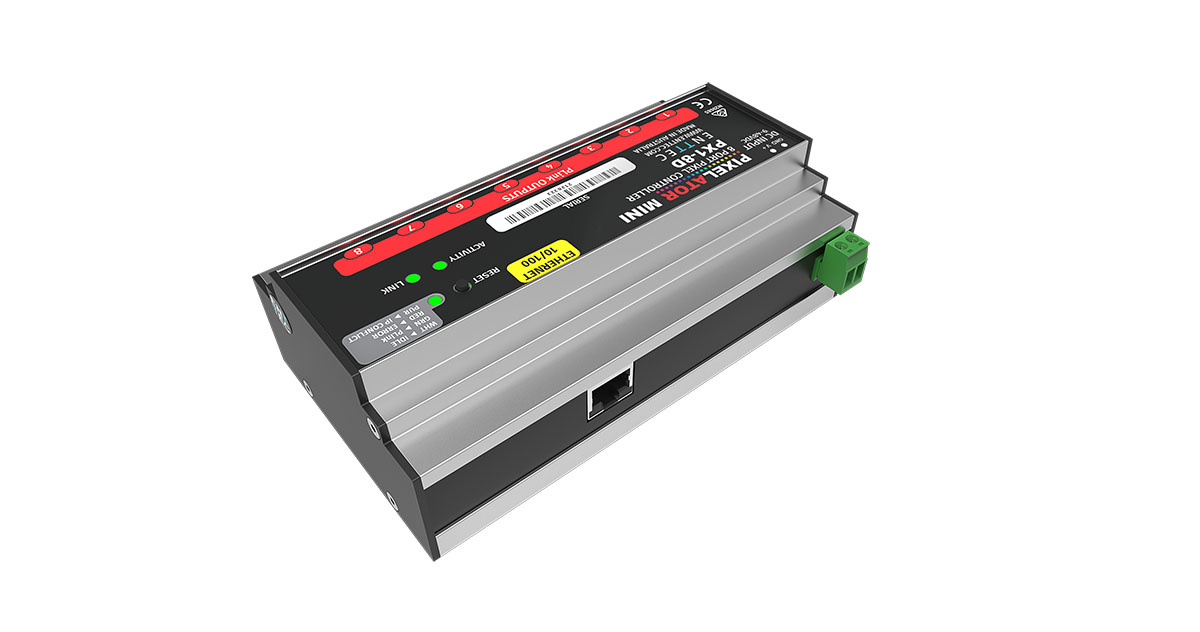

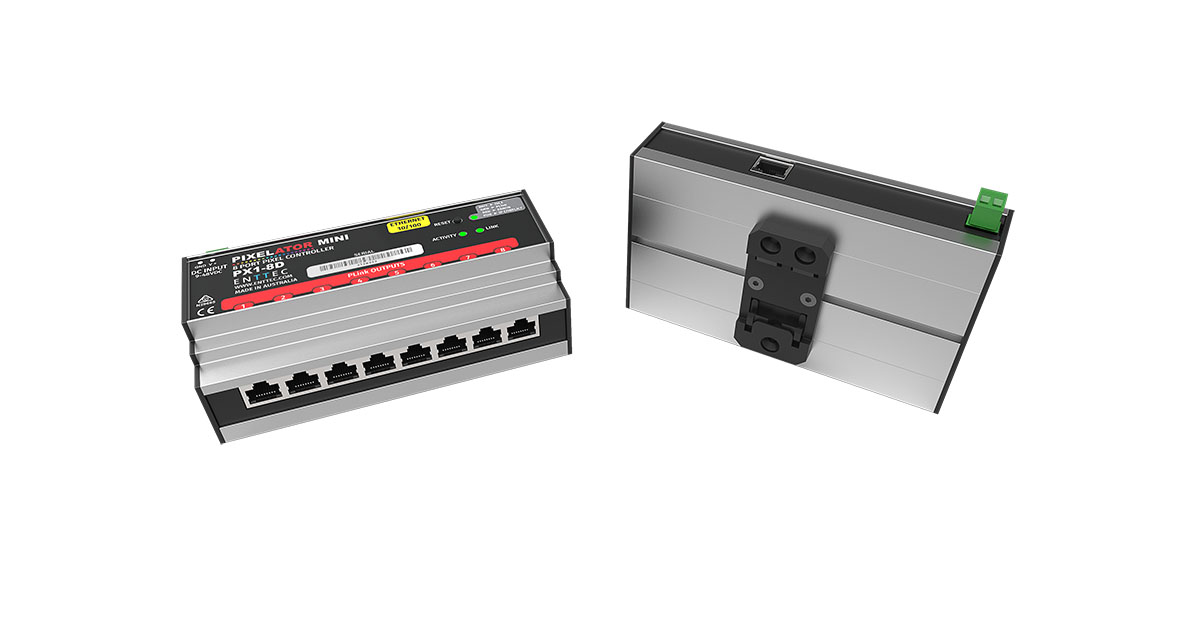

Super-compact Pixelator Mini for DIN-rail applications
The Pixelator Mini PX1-8D is a DIN-rail Ethernet pixel converter. A compact version of ENTTEC’s flagship Pixelator, it is small yet powerful enough to control up to 8,192 channels (2,730 RGB pixels). And it does it with perfect synchronization across all of its eight outputs up to 300m away when combined with either the PLink system.

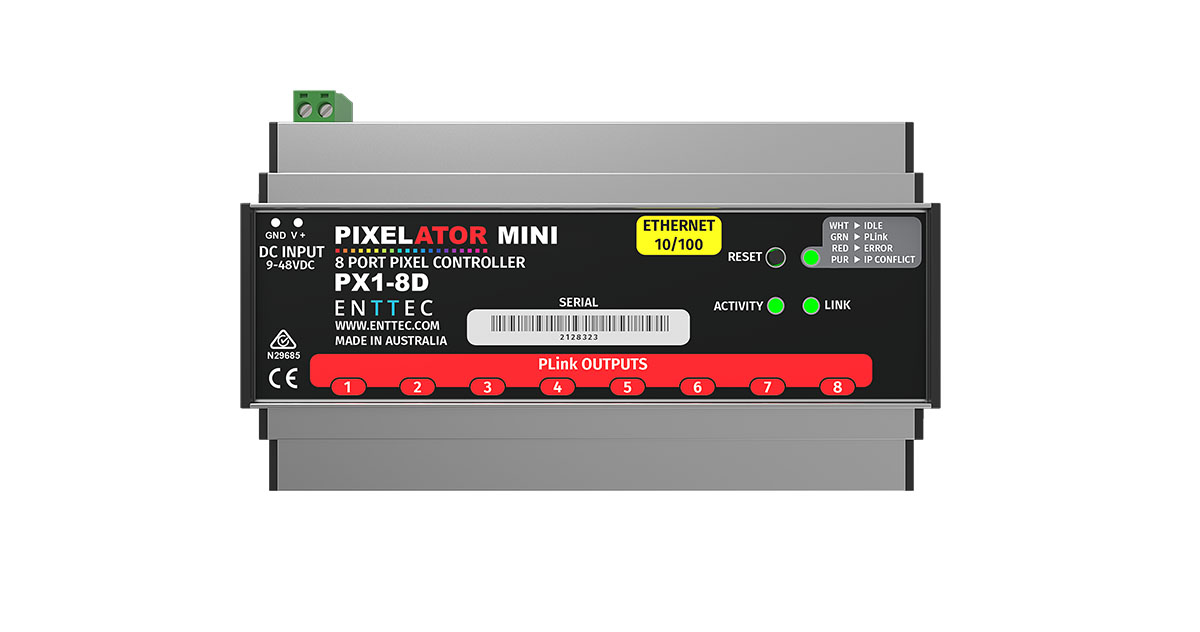

The unit’s robust DIN-rail hardware features a variable 7-24v input and front LED indicators to show the status and connectivity of each unit. As a result, used in conjunction with its intuitive web interface, it makes installations quick and easy every time.
controlling LED pixels, dots, and LED strips has never been more simple with input support for sACN and Art-Net 1, 2 & 3, as well as outputs for a wide range of pixel protocols.
Alternatively, the Pixelator Mini PX1-8D is available in a 1U half-width form factor for rackmount solutions.
From the same team that brought you the original PIXELATOR comes this super-compact DIN rail device. With the same classic functionality as our famous PIXELATOR MINI Ethernet-to-PLink driver, the PIXELATOR MINI PX1-8D is an 8-output, 16-Universe DIN rail-mountable pixel controller. And it is still powerful enough to control 2720 individual RGB pixels. Remarkable indeed!
Expert pixel sync
With a spectacular performance from all outputs and combined with our expertise in pixel control, the ENTTEC’s Pixelator range offers the best Ethernet to pixel converters in their class.
Supports a wide range of LED pixel strips and dots
Simply connect any ENTTEC pixel strip or pixel dots to the Pixel Link ports (using PLink Injector and external power), or bring your own strip or dots. See Downloads section for a comprehensive table showing all currently compatible LED protocols.
Smarter pixel conversion
Our DIN-rail ethernet Pixel converter manages pixel conversion in a smart and efficient manner, to maintain a perfect output. Thanks to its miniature size, it’s the smallest, yet smartest converter out there.
Use any modern web browser to manage Pixelator Mini PX1-8D. A very simple and easy to use settings page allows you to configure each output as required. Each output supports mapping of up to 2 Ethernet Universes.
- ArtNet 1/2/3

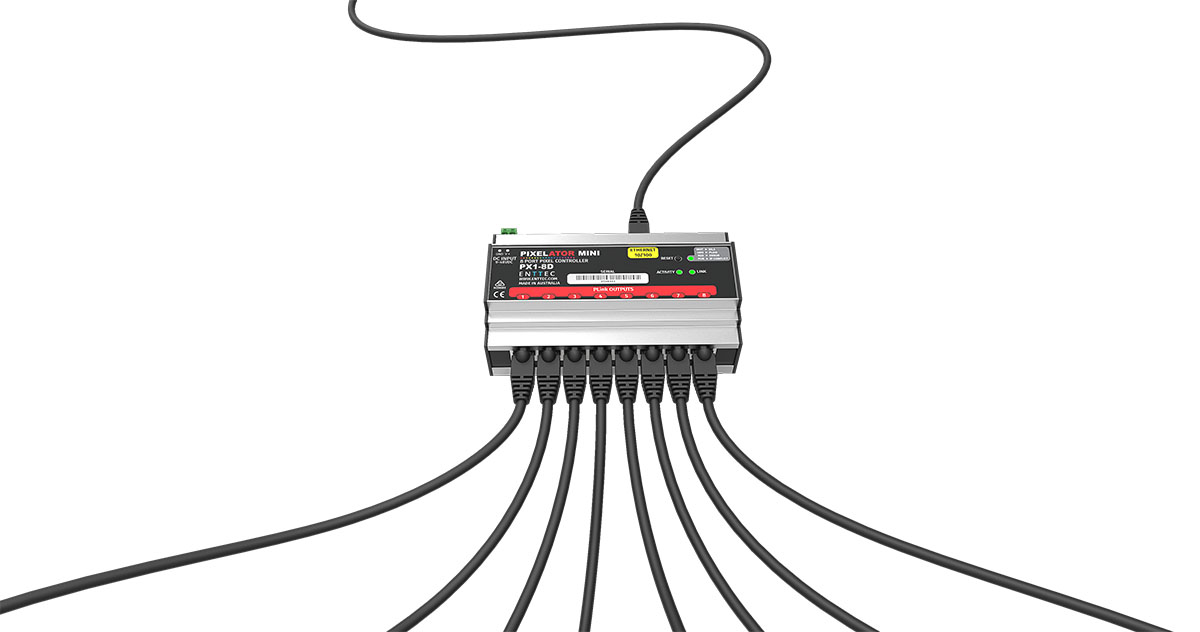

- 8 x PLink output ports on RJ45 (Pixel Link data)
- 1 x 10/100Mbps Ethernet port
- 1x 2 pin screw terminal (Power in)
Recommended App: ELM
- Award winning, ELM: ENTTEC LED MAPPER provides total control over your LED system, regardless of shape and size.
- Design your layout with vector-based objects for maximum precision and flexibility.
- Load the media of your choice and begin playback as needed
- Supports Spout and NDI
- Supports RGB, RGBW, RGBA, RGBAW/RGBWA and White fixtures
3rd Party Apps
4-Channel, Constant Voltage LED Dimmer
Robust and reliable, made for installation grade, the ENTTEC’s CVC4 is the ultimate high fidelity, constant voltage (CV) LED dimmer. Prepare to take your CV projects to the next level!
Engineered for projects that require precise automation, the S-PLAY smart light show controller is your all-in-one solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.
S-PLAY – Smart light show controller
PXL 40 DOT
Robust and reliable, ENTTEC’s hi-res, individually-addressable SMART LED Pixel dots (PXL 40) are designed and made in Australia from marine-grade aluminium to withstand the harshest of environments.
SMART PXL 40 DOT

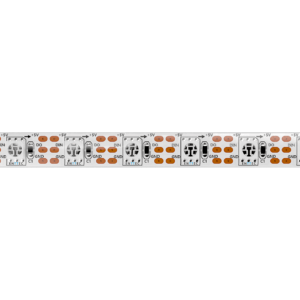

Pixel tape RGB: 8PL60 (5V) 5m
