LED driver

Powerful all-in-one LED driver: in-built power supply (with auto-ranging 110-240V AC input) and driver, this driver contains every ingredient you need to control your 24V LED strips.


From $352.00

SKU: 73-520
Powerful all-in-one LED driver

To get the most out of LED strips, you need the driver with the most going for it. The CV Mk2 LED strip driver is a powerful all-in-one driver that allows you to drive up to 17 meters of ENTTEC 9CL 24V LED tape per output—without the need for extra wiring. Powered simply by a mains 110-240V AC input, the CV Mk2 LED Tape Driver is DMX512 controllable, and RDM configurable.

Available in two options: 12V and 24V

LED driver


All in one driver

With in-built power supply (with a 110-240V AC input) and driver, this all in one driver is all you need to power and driver your 24V or 12V LED tape. Available in 2 options to suit the output voltage.

DMX control and RDM configuration

Full DMX-512  compatible, which means control your LED tapes with any DMX Controller. ANSI E1.20 RDM supported, so CV driver is configurable using any RDM Controller. Simply use a DMX USB PRO with ENTTEC RDM Controller App to change address or personality or keep an eye on Temperature sensors.

Power when you need it

CV driver supports up-to 5 Amps per output, and a massive 240 watts (73520) total output power. Which means, it’s ready to power and drive up-to 17 meters of ENTTEC 9CL 24V LED tape per output, without needing anything extra.

Smart heat management

Thanks to the in-built temperature and voltage sensors, the CV driver is smart to limit the output, when it gets too hot. Advanced heat management

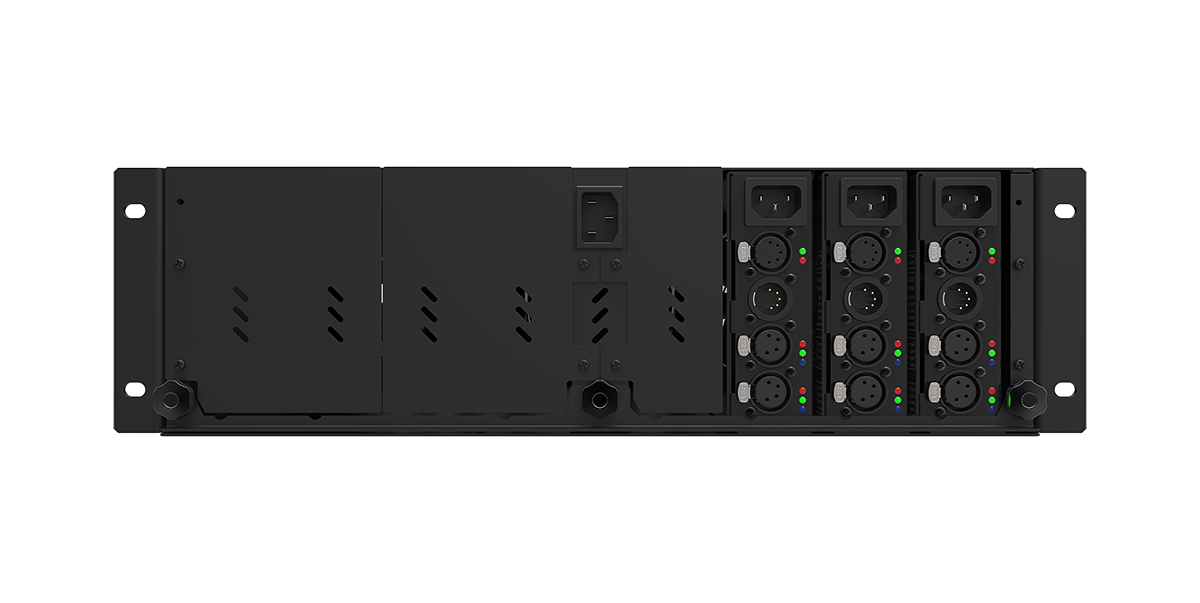

Extend using a rack

Standard 19″ rack mount unit using 8 Way mounting rack (sold separately). Allows racking up-to 8 units into a single rack, so it’s convenient to wire multiple LED tape and strips.

LED driver rack




Downloads (rev B)


Video Tutorial

Compatible with
