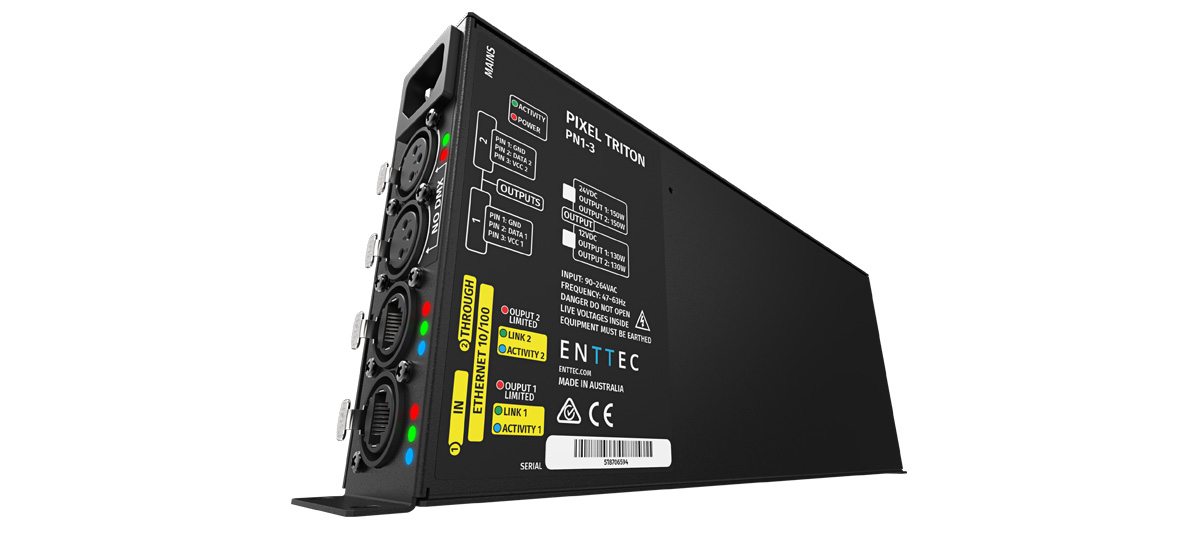

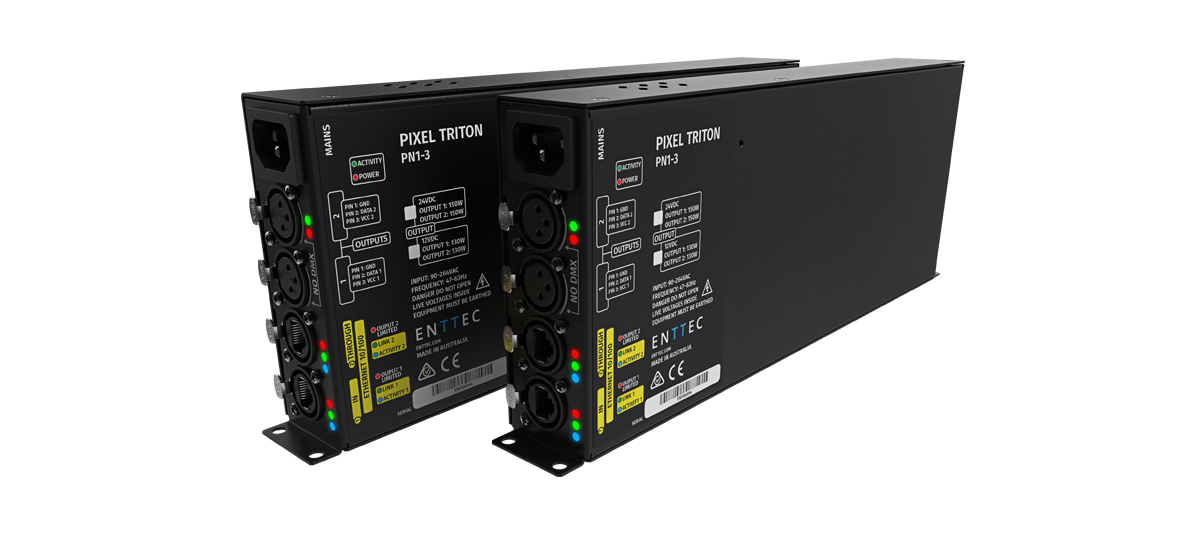

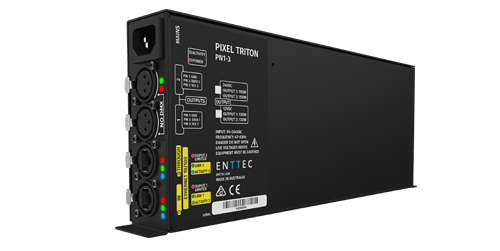

Pixel Triton
The High Power LED pixel driver
Outputs up to 300W of power!
The Pixel Triton is our new high power LED pixel driver, which outputs up to 300W. Perfect for those large-scale touring projects, the Pixel Triton also supports up to 8 Universes of DMX data.
Be in control!
With 2,048 DMX channels per output, you get a total of 4,096 DMX channel at your disposal from the Pixel Triton, allowing you to drive up to 1,360 individual RGB pixels. Still not enough? Then daisy chain your Tritons with RJ45 Ethernet connectors to extend your set-up.
The Pixel Triton comes in two voltage options – 12V (outputting 260W) or 24V (the full 300W). Due to the smart design, your refresh rate won’t suffer if you’re using the Triton at its limits.
With compact dimensions of 335mm (L) 129mm (W) 43mm (H) and a weight of 2.4kg, this device will fit snugly into an ENTTEC 8-way rack unit (SKU:73530) for mounting into any standard touring case. this high power LED pixel driver is ready to go whenever you are!
Features

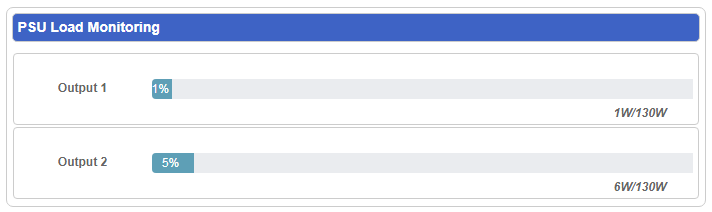

Power Monitoring
By using the simple web interface, you’ll be able to monitor your power consumption in real time. You’ll get a warning when you’re at 80% power consumption, meaning you are always in control!
Connections
The Pixel Triton has 2 x 3-pin pixel outputs, 2 x EtherCON connectors (input/output) and 1 x IEC power connector.
Network protocols
The Pixel Triton supports ArtNet 1/2/3 and sACN protocols.
Webpage configuration
The high power LED pixel driver comes with an intuitive web-based configuration. You can use your preferred browser, and you’ll be able to monitor your set-up in no time.
Supports a wide range of LED strips and dots
See Downloads section for a comprehensive table showing all currently compatible LED protocols.
Compatible Apps
Recommended App: ELM
- Award winning, ELM: ENTTEC LED MAPPER provides total control over your LED system, regardless of shape and size.
- Design your layout with vector-based objects for maximum precision and flexibility.
- Load the media of your choice and begin playback as needed
- Supports Spout and NDI
- Supports RGB, RGBW, RGBA, RGBAW/RGBWA and White fixtures
3rd Party Apps
- Art-Net Controller Android
- ArtNetDmxRemote iOS (iPhone/iPad)
- ArKaos MediaMaster (Windows)
- Aurora DMX Android
- Chameleon Mac OSX
- Freestyler Windows
- Jinx! LED Matrix Control Windows
- LXConsole Mac OSX
- LightFactory Windows
- LightForge Windows
- LightJams Windows
- Lightkey Mac OSX
- Luminair iOS (iPhone/iPad)
- MadMapper Mac OSX / Windows
- QLC + Win / Mac / Linux
- Run The Show iOS (iPhone/iPad)
- TouchDesigner Windows
- Vibrio iOS (iPhone/iPad)
Downloads
Documents
Firmware
