The DIN-INPUT 8 is an 8 dry contact input to a din-net device. It can detect a close or open …

SKU: 71001

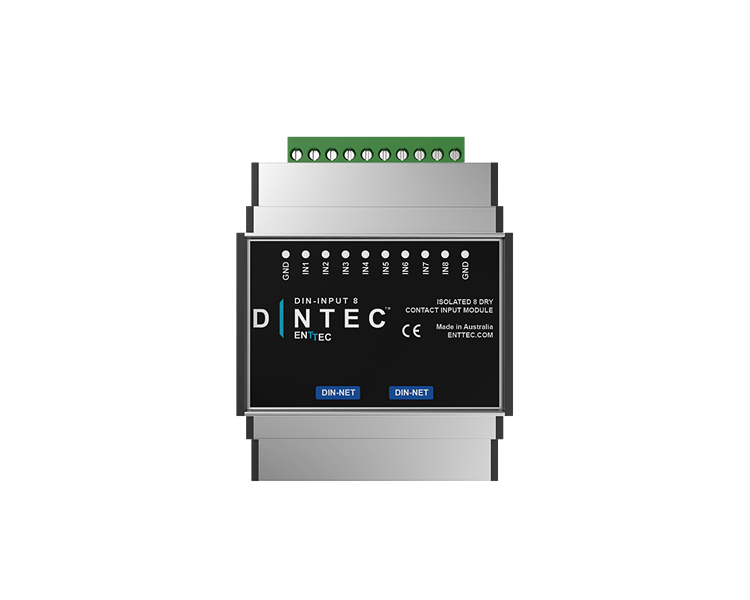

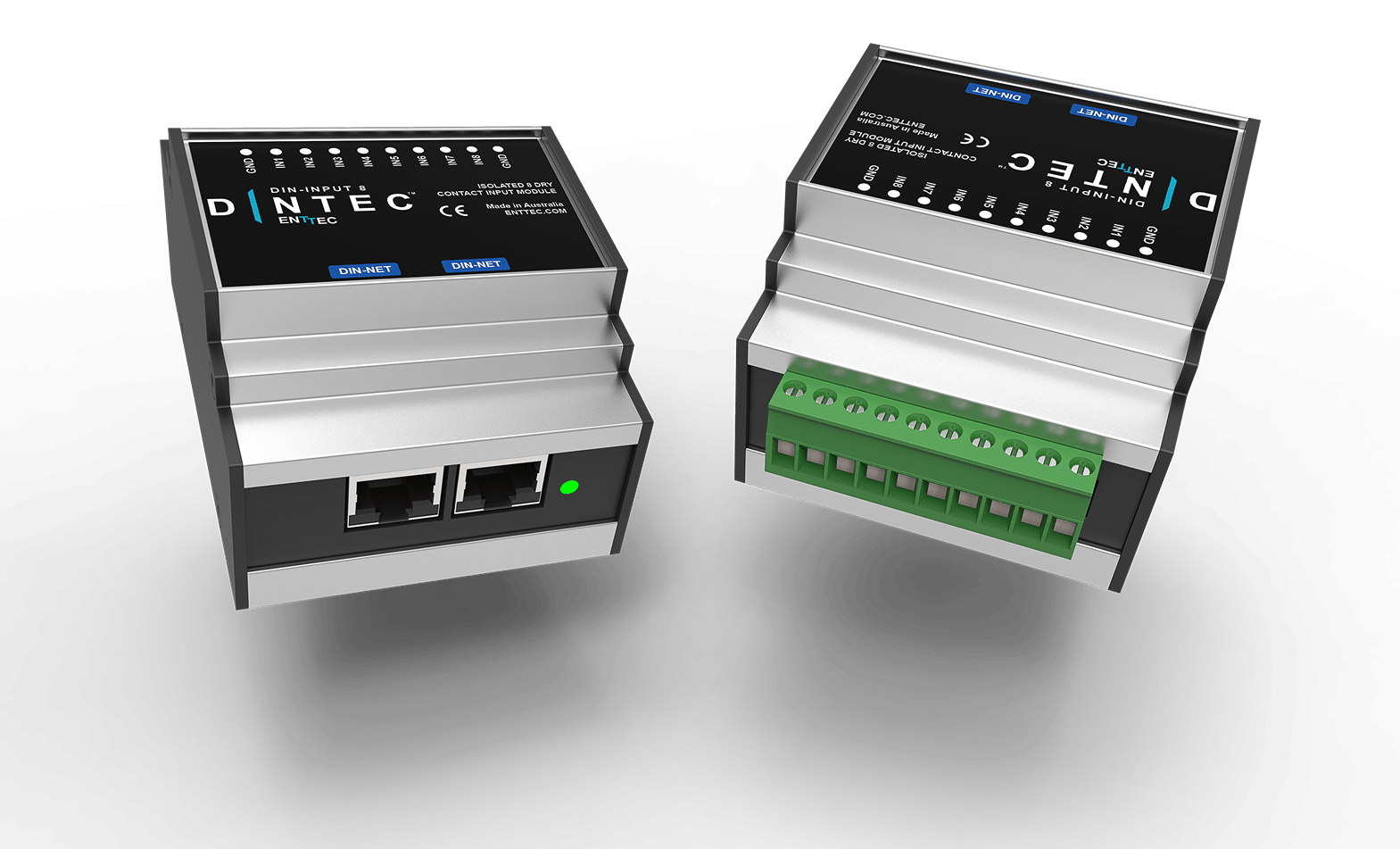

DIN-INPUT 8 is a fully isolated 8 dry contact input for DIN-NET networks. It automatically detects a close or open on any of its 8 inputs and can send up to 32 DIN-NET actions to any other node on the network.


  • 8 isolated contact closure inputs on screw terminals
  • 500V isolation
  • Trigger on: contact open, contact close or change of state
  • In and Thru DIN-NET ports on RJ45 connectors
  • Up to 32 DIN-NET actions (1 input can trigger multiple actions)
  • Status LED
  • Standard 4 module wide din-rail enclosure
  • Operating 0->50 ambient

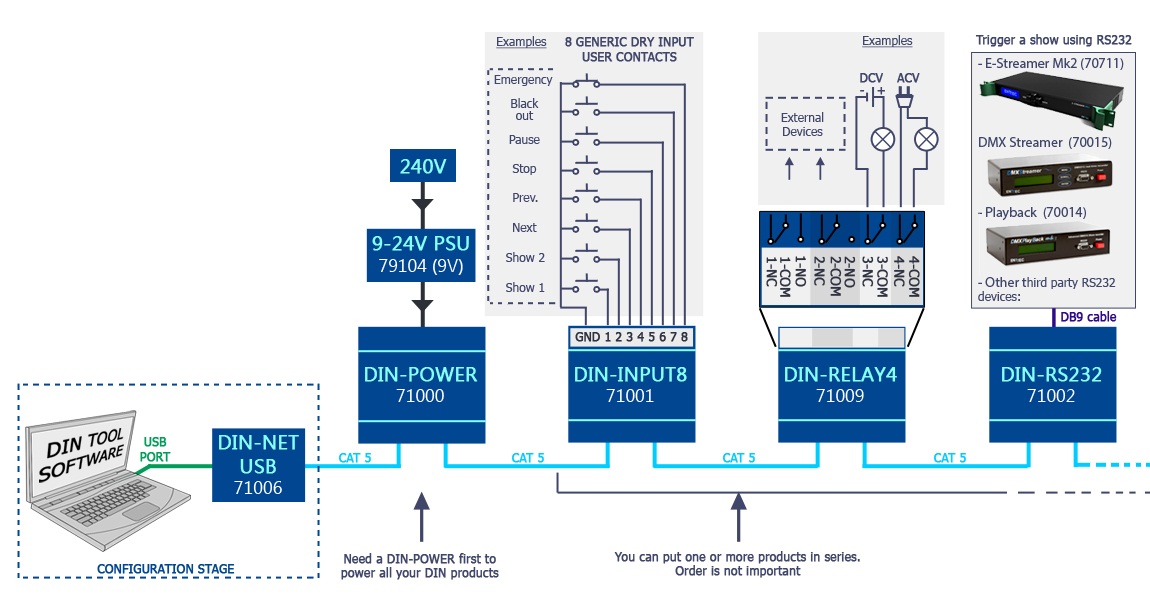

DIN-NET Wiring





Compatible with
