Pixel Octo

SKU: 71520
8-Universe DIN-Rail LED Pixel Controller

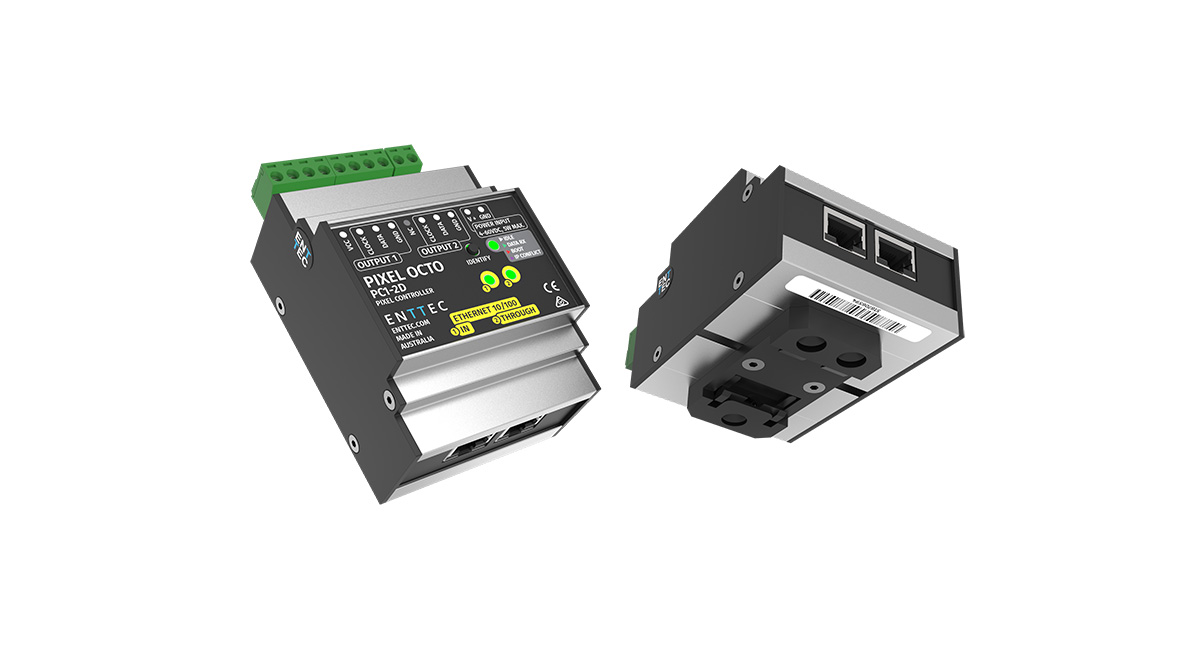

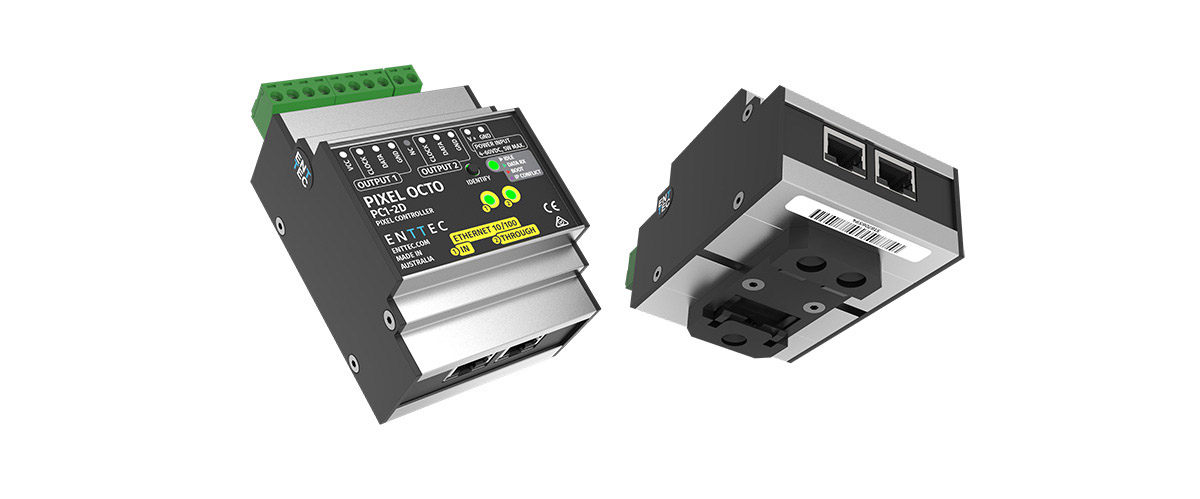

Our state-of-the-art DIN-RAIL LED Pixel controller, the Pixel Octo is easy to install, service and configure. Powered directly through its local power input with the widest input voltage range on the market, the Pixel Octo can also be ‘back fed’ power from LED pixel strip or dots to streamline your setup.

The Pixel Octo is packed with installer-friendly features such as an identify button, allowing installers to easily check all connections are correct and functioning without the need for an ArtNet, sACN or KiNet input, saving valuable time on site. What’s more, once your Pixel Octo is up and running, you can monitor the temperature inside its robust aluminum housing in real-time using an intuitive web interface.

Choose the convenience of Direct (live) mode, or the versatility of Standalone (preset) mode, where one of the most exciting features is the ability to edit and create presets, using the Pixel Octo’s onboard effects generator.

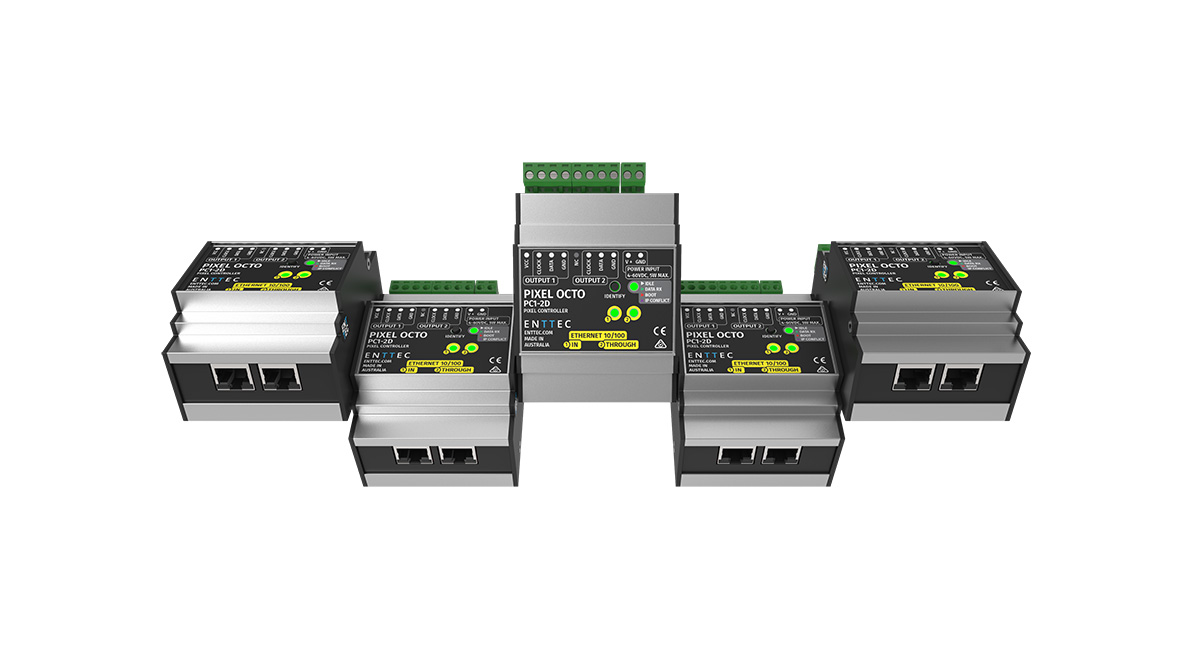

Assign parameters such as wave type, background/foreground color, speed and direction of the wave, as well as the static color. Then simply save your creations in the 100-slot preset library (which also comes with 14 handy factory effects to get you started). Controlled with virtual faders via a web interface, your presets can be set to run at power-up, thanks to its on-board memory and 120MHz processor, opening the Pixel Octo’s capabilities up to a much wider audience. You can even daisy chain up to 50 devices to extend your data.

Features

Voltage range

Whether you want to control 5V pixel strips or 60V pixel dots, the Pixel Octo can do it all. With its wide voltage input range, you don’t have to have multiple products in your lighting arsenal.

DIN-rail mountable

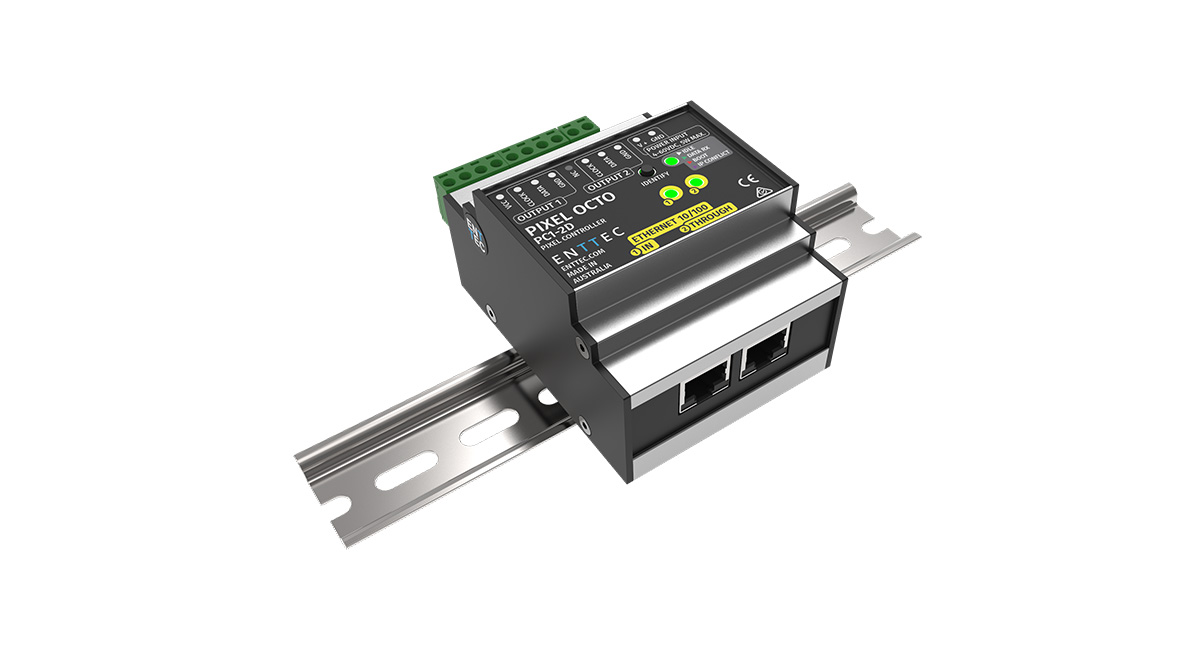

Easy to install, the Pixel Octo is a super-compact 4-module DIN-rail unit LED pixel controller.

Protocols

The Pixel Octo supports ArtNet, sACN, KiNet™ and ESP, as well as 3-wire and 4-wire (CLK) LED protocols.

Webpage configuration

Intuitive web-based configuration. Using your preferred browser, you’ll be able to monitor your set-up in no time.

Inbuilt FX generator & Standalone mode

This mode is unique to the Pixel Octo and widens its usability for applications including trade shows and long-term installations where space is a premium and an 8-Universe playback device or full-sized media server is not an option. The Pixel Octo can be configured to load a preset effect upon power-up, requiring no user interaction.

Using the Pixel Octo’s inbuilt web interface, up to 100 individual dynamic effects can be created, stored and recalled by non-technical users without the need for a DMX source. Users can simply access the web interface and begin creating effects. All effects are based on a wave generator, which means perfect looping. What’s more, the Pixel Octo can take into account the quantity of pixels on each LED output string to give the option for users to create effects originating from either the center or each end of the pixel strip attached.

Supports a wide range of strips and dots

The following protocols are fully compatible with the Pixel Octo:
APA102, APA104, SK6812, TM1804, TM1812, WS2811, WS2812, WS2812B, WS2813, WS2815 and 9PDOT (8 and 16-bit)

ENTTEC can implement additional LED protocols if needed to suit your project requirements.

 Compatible Apps

 Recommended App: ELM

  • Award winning, ELM: ENTTEC LED MAPPER provides total control over your LED system, regardless of shape and size.
  • Design your layout with vector-based objects for maximum precision and flexibility.
  • Load the media of your choice and begin playback as needed
  • Supports Spout and NDI
  • Supports RGB, RGBW, RGBA, RGBAW/RGBWA and White fixtures
