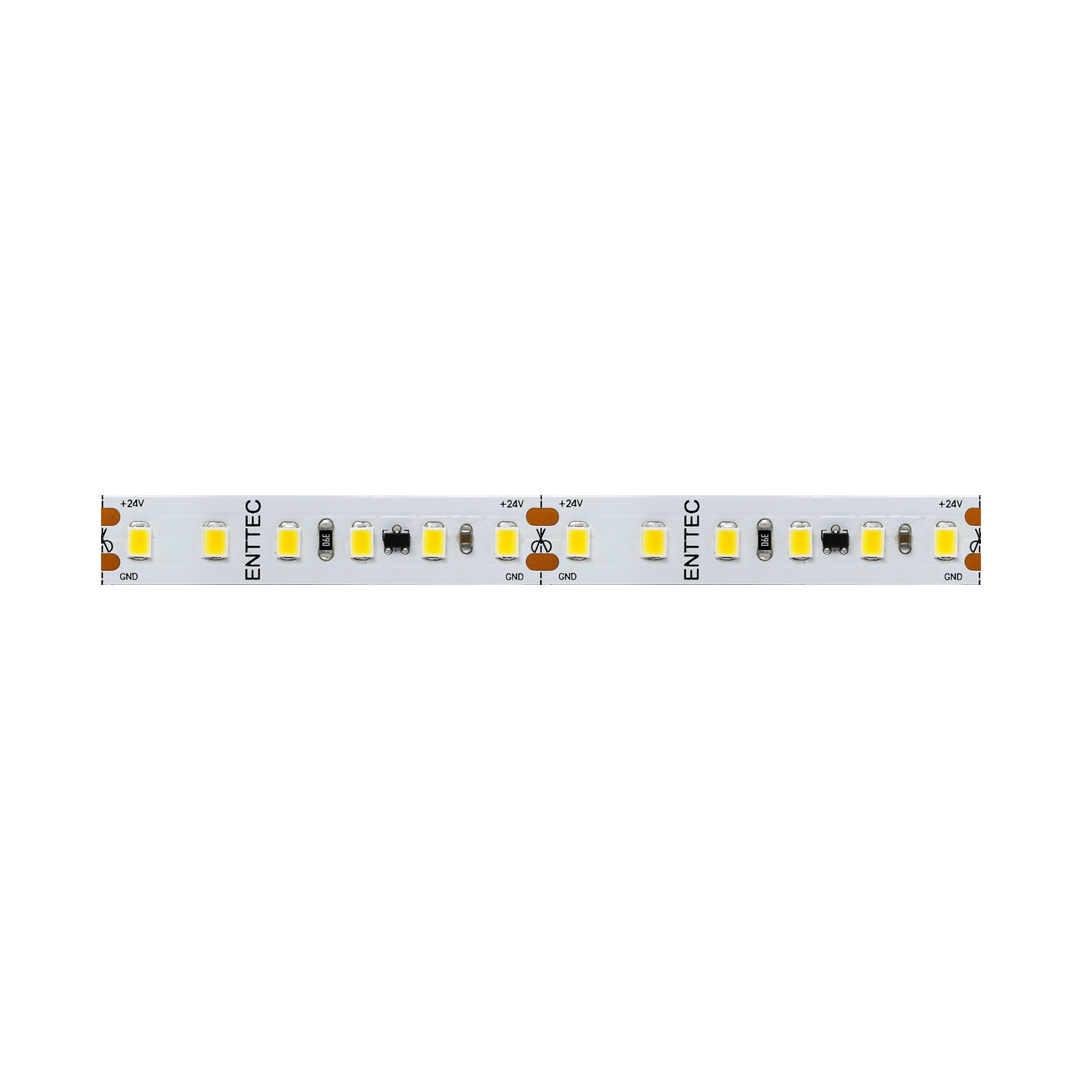

9CH high output LED tape (10m)
ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. 9CH tapes provide high output and come in different colour temperatures so you can choose the white you require.
Features
High output white
Thanks to a high output configuration, the maximum output at 3000K or 6000K is 1385 lumens per meter.
24V white range in 3000K, 4000K or 6000K
9CU is a 24V white LED tape. Choose from Warm White (3000K), Natural White (4000K), or White (6000K) color temperatures.
Input current and wattage
Maximum input current rating is 0.61 A per meter which equals 3.05 A for a 5=meter length. 9CH consumes a maximum of 14.64 W per meter, and the maximum continuous length is 9 meters.
Specifications
| DC Power | W/m | LED Quantity | Product Family | Product Code | Color | #colspan# | Lm/m | Input Current 1M | Input Current 5M | IP | Reel Length | Strip Width | Cuttable | Maximum Continuous Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24V | 14.64 | 120/m | 9CH | 9CH1 | White | 6000K | 1385 | 0.61A | 3.05A | 20 | 10m | 11mm | 50mm | 9m |
| #rowspan# | #rowspan# | #rowspan# | #rowspan# | 9CH2 | Natural White | 4000K | #rowspan# | #rowspan# | #rowspan# | #rowspan# | #rowspan# | #rowspan# | #rowspan# | #rowspan# |
| #rowspan# | #rowspan# | #rowspan# | #rowspan# | 9CH3 | Warm White | 3000K | #rowspan# | #rowspan# | #rowspan# | #rowspan# | #rowspan# | #rowspan# | #rowspan# | #rowspan# |
